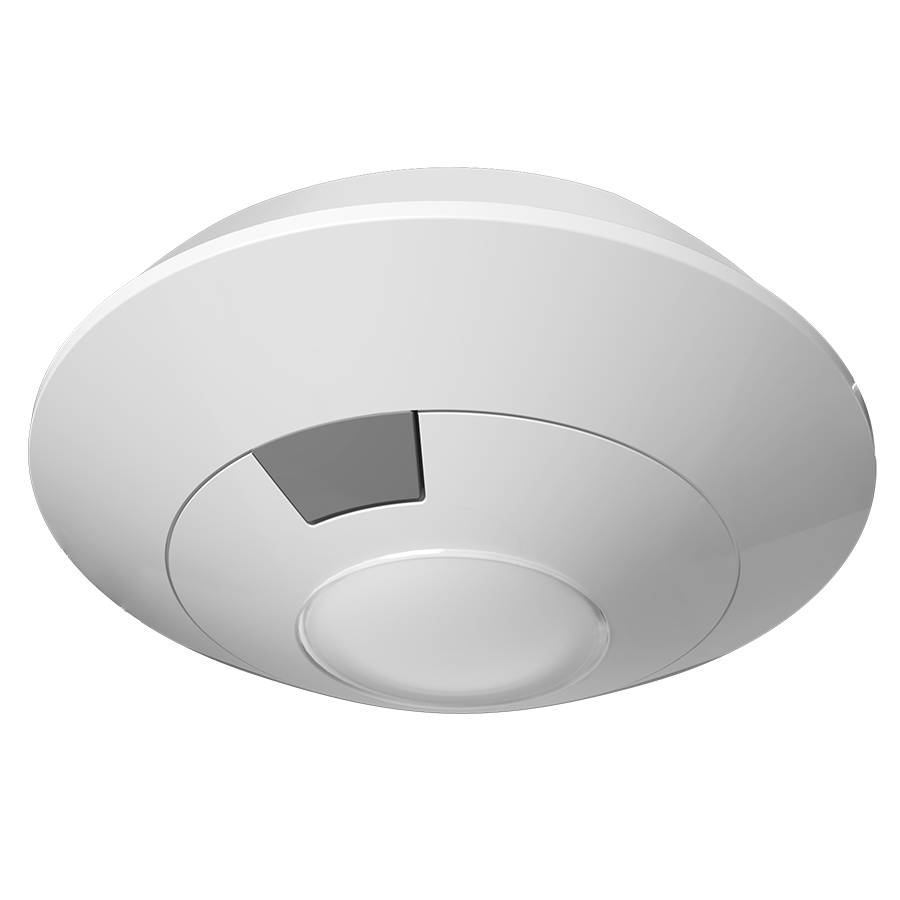

OCCW12/LCB

Hardwired occupancy sensor, easily mounts to junction box

Occupancy and vacancy sensing with adjustable sensitivity and timeouts

Communicates over secure wireless Bluetooth Mesh network - no Gateway or Hub required

Motion detector with built-in fixture and zone control

Closed loop daylight harvesting

View Technical Specs

View Price & Availability

Technical Specifications

Lightcloud

Lightcloud Blue

Lightcloud Blue is a Bluetooth Mesh wireless lighting control system that allows you to control RAB's various compatible devices. With RAB's patented Rapid Provisioning technology, devices can be quickly and easily commissioned for residential and large commercial applications using the Lightcloud Blue mobile app. Each device in a system can communicate with any other device, eliminating the need for a Gateway or Hub and maximizing the control system's reach.

DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)

Learn more at www.rablighting.com/feature/new-lightcloud-blue.

Gateway Required

Communication Protocol

Bluetooth Mesh

Range

Indoor: Up to 60 feet between standard building materials. Building materials such as brick, concrete, and steel construction may require additional Lightcloud Blue devices to extend around an obstruction; Up to 200 feet clear line of sight.

Outdoor: Up to 60 feet clear line of sight; Up to 18 feet around corners

Spacing Criteria

Lightcloud Blue devices should be placed within the specified range to communicate within the Bluetooth Mesh network.

Max # of Devices to Control

This sensor can be assigned to 1 Area in the Lightcloud Blue app and can control up to 199 lights wirelessly.

Factory Reset

To restore the Ceiling Sensor to factory settings, press the reset button on the face of the sensor for 10 seconds until the indicator light flashes red.

Performance

Product Type

Occupancy Sensor

Description

Ceiling sensors for indoor and outdoor applications for low or high ceilings. Dual technology motion sensor available with PIR or MVS technology and daylight harvesting.

Input Wattage

<0.5W

Electrical

Input Voltage

120-277V

Operating Frequency

60 Hz

Operating Temperature

-4°F to 140°F (-20°C to 60°C)

Sensor Settings

Sensor Connection Type

Hardwired

Max Mounting Height

12 ft

Detection Range

16 ft diameter at 12 ft

Sensor Technology

24G Microwave (MVS) - High-Sensitivity

Default Setting

Uncommissioned State:
Motion Sensitivity: High
Brightness when triggered: 100%
Hold time: 20 minutes
Standby to dim: 20%
Standby time: 1 minute
When vacant: Off

Commissioned State:
Once paired, the sensor will default to disabled. Once enabled the following settings apply:
Motion Sensitivity: High
Brightness when triggered: Last on status
Hold time: 20 minutes
Standby time: 1 minute
When vacant: Off

Adjustable Sensor Settings?

Yes, using the Lightcloud Blue mobile app

Sensing Type

Occupancy, Vacancy

Occupied Actions

On or On at a Dim Level

Vacant Actions

Off or On at a Dim Level

Occupancy Timeout

1 minute to 240 minutes

Daylight Sensing

The sensor will determine to trigger the light(s) on or not based on the daylight threshold level set in the Lightcloud Blue mobile app. Dim levels will continuously adjust to meet daylight threshold setting.

Daylight Threshold

150 lux to 1500 lux

Installation

Mounting

Ceiling mount to a junction box

Construction

Shape

Round

Finish

White

Enclosure Material

Plastic

Compliance

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

IP Rating

IP66

IC Rated

Air Tight

Energy Star Approved

DLC Listed

California Title 20 Compliant

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

NSF Listed

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

Compatible Products

Compatible with any Lightcloud Blue-enabled products.

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
