PANEL1X4-34N/D10
PANEL1X4-34N/D10
- Up to 60% savings on energy costs
- High-reflectance (91%) powder coat applied post fabrication for a more durable finish
- Ultra-smooth diffusion lens creates uniform light, edge to edge, for evenly lit spaces
- 100,000-hour LED Lifespan
- 5-Year, No-Compromise Warranty
Performance
| Watts | 34W |
| Color Temp | |
| Lumens | 4,334 lm |
| Efficacy | 130.5 lm/W |
| Color Accuracy | |
| L70 Lifespan |
| Type | Constant Current |
| 120V | 0.29A |
| 208V | 0.17A |
| 240V | 0.15A |
| 277V | 0.13A |
| Input Watts | 33.2W |

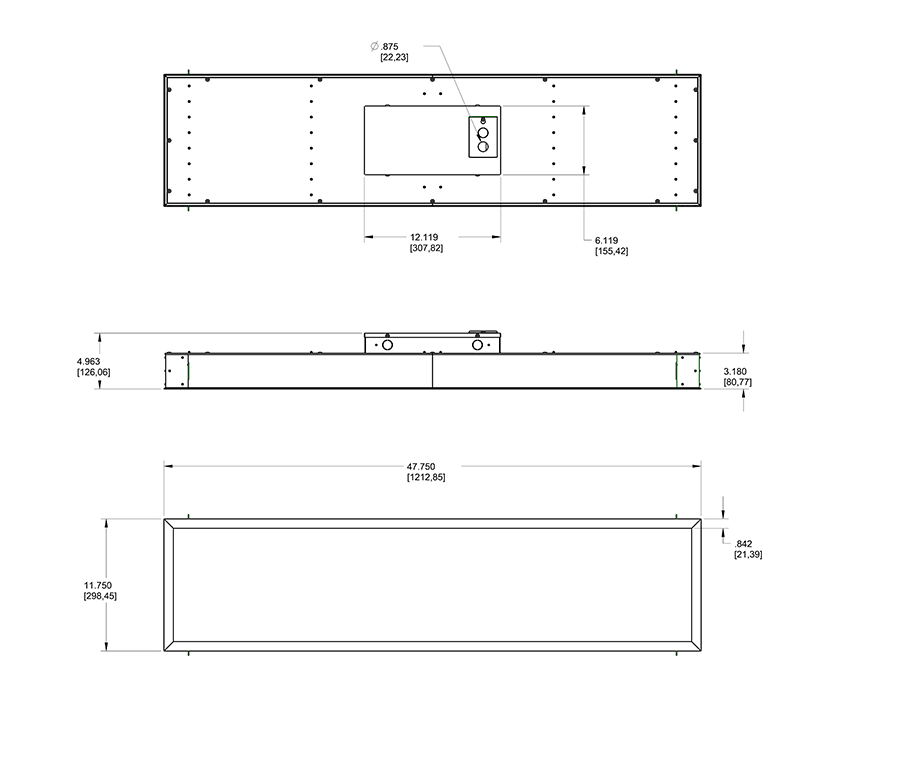

Dimensions
Weight: 19.5 lbs
Technical Specifications
Electrical
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
5.8% at 120V, 11.0% at 277V
Power Factor
99.7% at 120V, 93.6% at 277V
Compliance
UL Listed
Suitable for damp locations. Recommended for indoor use only.
Construction
IC Rated
Suitable for insulated ceilings
Lens
High-transmission acrylic lens with excellent distribution and uniformity
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs; binned and mixed for uniform light output and color
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
