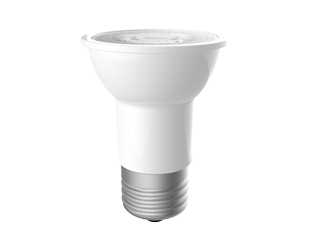

PAR16-6-850-40D-DIM

Spec Sheet Compatibility List Photometrics Report FCC Caution Spec Sheet

PAR16-6-850-40D-DIM

Energy efficient replacement for incandescent and halogen Small diameter reflectors

Constructed from durable materials which lowers risk of breakage

Rated for use in enclosed and open fixtures in dry or damp locations

Single optic and full face lens for precise beam angle control

Longer lifespan compared to legacy equivalents minimizes replacement and maintenance costs

ENERGY STAR Compliant, UL Listed

View Technical Specs

View Price & Availability

Performance

Watts	6W
Color Temp	5000K
Lumens	500 lm
Efficacy	76.9
Color Accuracy	80 CRI
L70 Lifespan	25,000 Hours

Input Voltage	120V
Power Factor	0.7
Flicker	N/A
THDi	N/A

Dimensions

Weight: 0.1 lbs

Technical Specifications

Performance

Product Type

PAR

Input Wattage

6.5W

Lumens

500lm

Efficacy

76.9lm/W

L70 Lifespan

25,000-Hour LED lifespan based on IES LM-70 results

Wattage Equivalency

50W Halogen

Compliance

UL Listed

Suitable for damp locations

Enclosed Fixtures

Suitable for use in enclosed fixtures

LED Characteristics

Color Temperature

5000K

Color Accuracy (CRI)

80 CRI

Beam Angle

40°

Electrical

Power Factor

0.7

Dimmable

Yes

Operating Temperature

-20°C to 45°C (-4°F to 113°F)

Input Voltage

120V

Operating Frequency

60 Hz

Construction

Bulb Shape

PAR16

Enclosure Material

Plastic

Installation

Base Type

E26 Edison

Other

4-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of four (4) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
