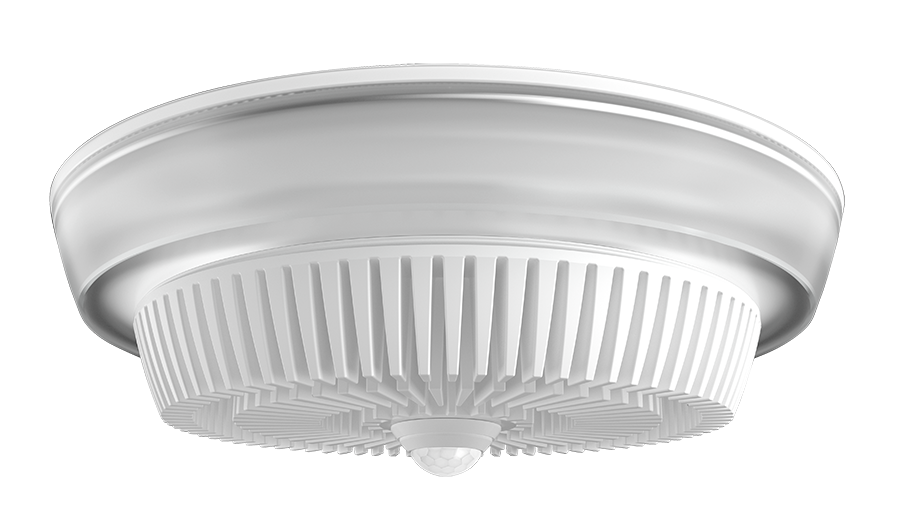

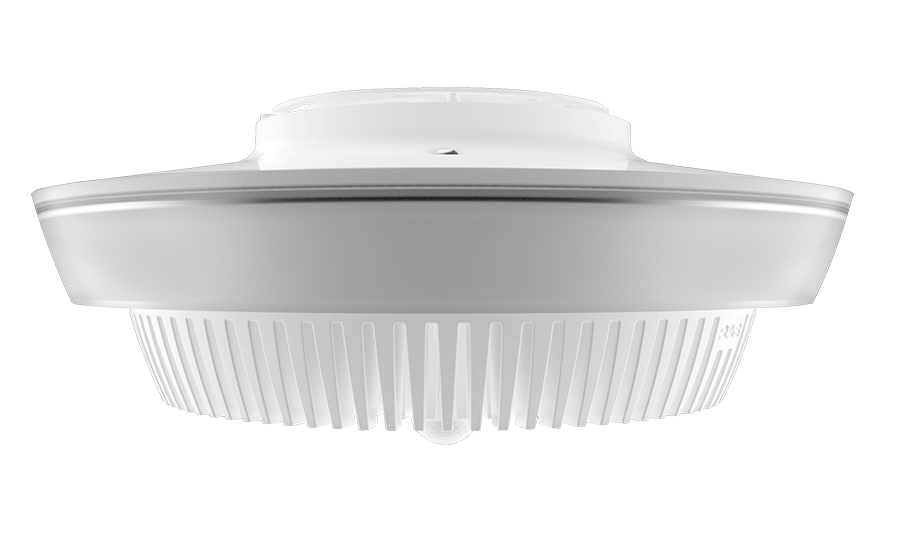

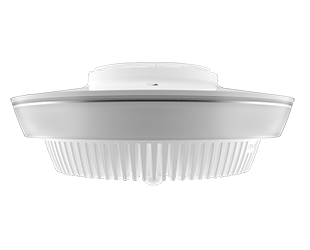

PARK34-60NW/120/PIR/BL

Spec Sheet IES File LM79 Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

PARK34-60NW/120/PIR/BL

IP65 Rated

100,000-Hour LED lifespan

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	60W
Color Temp	4000K (Neutral)
Lumens	7,834 lm
Efficacy	122.5
Color Accuracy	75 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.54A
208V
240V
277V
Input Watts	63.9W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 2.1 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations

IP Rating

Ingress protection rating of IP65 for dust and water

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-SUC4RF

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Consistency

7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Electrical

Driver

Driver on board, Class B, 50/60 Hz, 120V: 0.54A

Dimming Driver

Integrated/embedded reverse Phase-Cut stepped luminaire-level dimming control. Ten discrete dimming steps plus off and full on are accomplished by modification of the voltage, current, and waveform to produce varying light output. Controller is remote located from fixture or junction box or can be located by the electrical panel.

THD

5.05% at 120V

Power Factor

99.5% at 120V

Surge Protection

3kA

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Wattage Equivalency

Equivalent to 250W Metal Halide

Construction

Cold Weather Starting

The minimum starting temperature is -40°C (-40°F)

Maximum Ambient Temperature

Suitable for use in up to 40°C (104°F)

Lens

Polycarbonate lens

Reflector

Aluminum with high reflectance white finish, optimized for uniform distribution.

Gaskets

Nitrile rubber

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Installation

Mounting

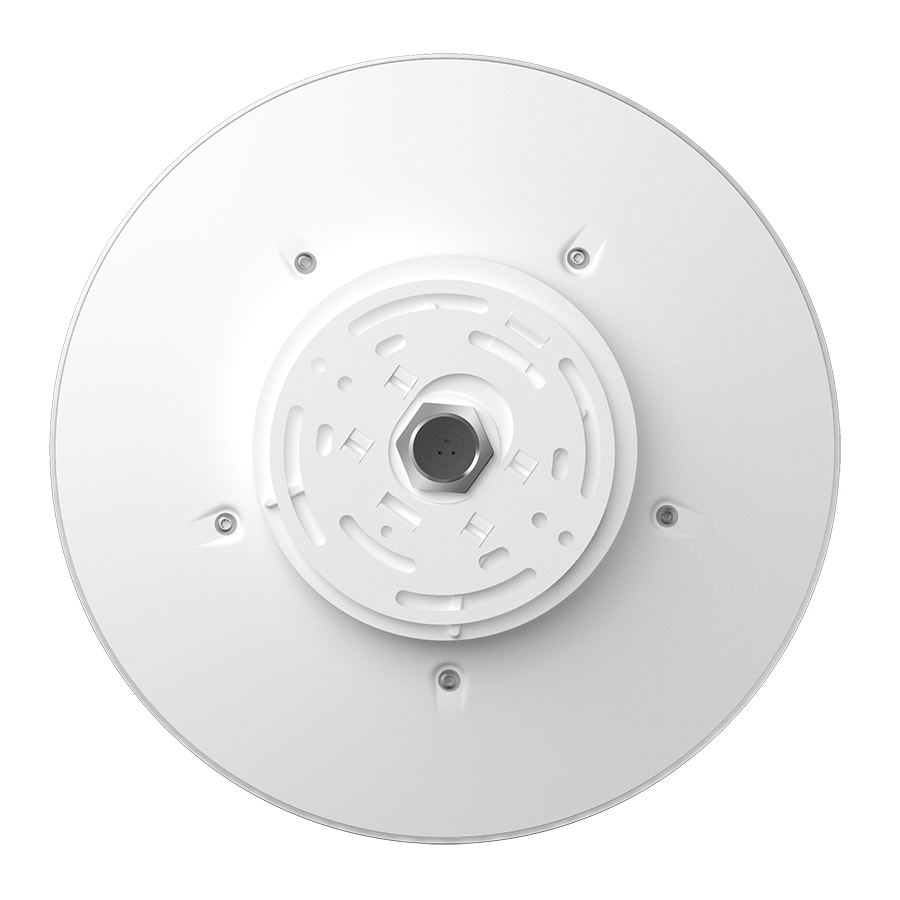

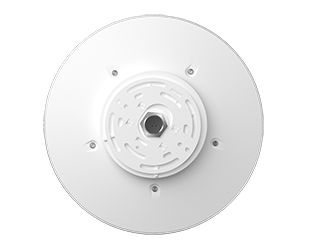

PARK34 accommodates surface mounting and its unique, removable adapter allows for both 1/2" and 3/4" NPT pendant mounting (by others).

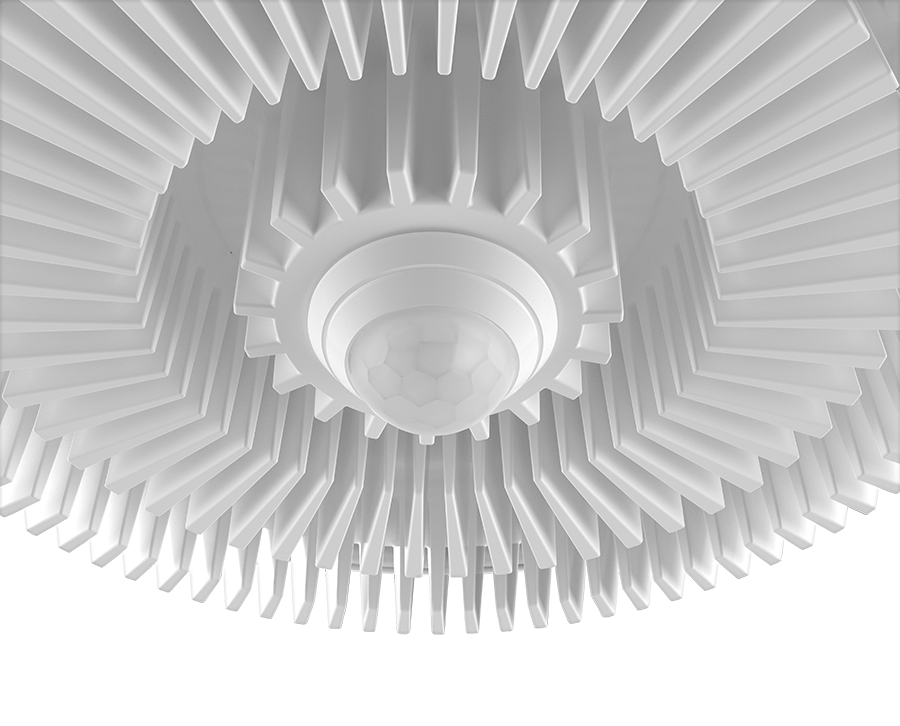

Sensor Settings

Maximum Mounting Height

13 ft

Voltage

Dimming

Default factory setting: 30% dimming output

Operating Temperature

-20°C to 60°C (-4°F to 140°F)

Storage Temperature

20°C- 70°C (-40°F - 158°F)

Operating Humidity

5% - 93% without condensation

IP Rating

IP20

Warm Up Time

45s +/-5s

Standby (w)

<0.3W

Module Interaction

Wire AWG 22 (Grey Dim -, Purple Dim +, Yellow 5V DC)

Bi-Level

The sensor will dim the fixture down to 30% after a 20 minute vacancy delay, and then go full bright again when motion is detected.

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
