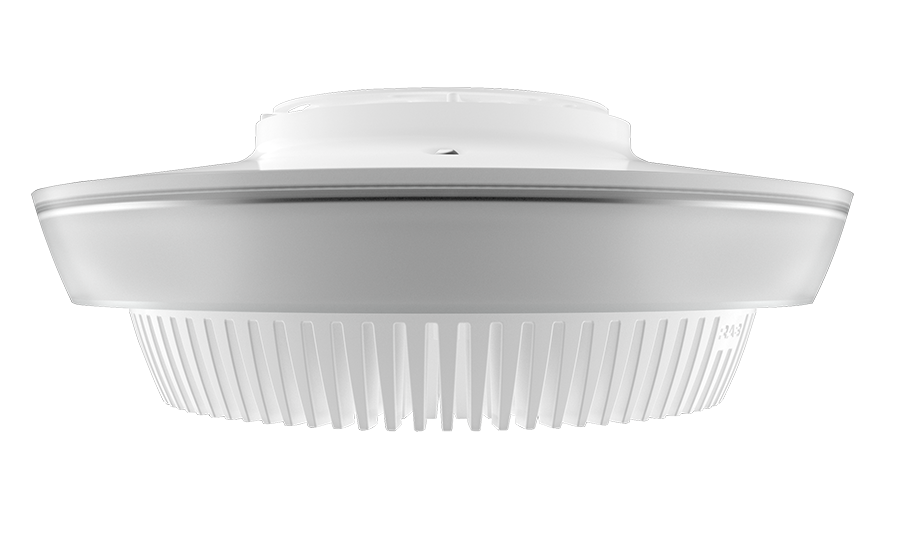

PARK34-60W/277

Spec Sheet IES File LM79 Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

PARK34-60W/277

IP65 Rated

100,000-Hour LED lifespan

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	60W
Color Temp	5000K (Cool)
Lumens	7,347 lm
Efficacy	121.8
Color Accuracy	76 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V
208V
240V
277V	0.22A
Input Watts	60.3W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 2.1 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations

IP Rating

Ingress protection rating of IP65 for dust and water

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-G3R12K

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Consistency

7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Electrical

Driver

Driver on board, Class A, 50/60 Hz, 277V: 0.22A

Dimming Driver

Integrated/embedded reverse Phase-Cut stepped luminaire-level dimming control. Ten discrete dimming steps plus off and full on are accomplished by modification of the voltage, current, and waveform to produce varying light output. Controller is remote located from fixture or junction box or can be located by the electrical panel.

THD

11.74% at 277V

Power Factor

99.2% at 277V

Surge Protection

3kA

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Wattage Equivalency

Equivalent to 250W Metal Halide

Construction

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Maximum Ambient Temperature

Suitable for use in up to 104°F (40°C)

Lens

Polycarbonate lens

Reflector

Aluminum with high reflectance white finish, optimized for uniform distribution.

Gaskets

Nitrile rubber

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Installation

Mounting

PARK34 accommodates surface mounting and its unique, removable adapter allows for both 1/2" and 3/4" NPT pendant mounting (by others).

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
