70W 3000/4000/5000K
  • 0-10V Dimming, standard
  • 100,000-hour LED lifespan
  • IP65 rating protects against dust and water
  • 5-Year, limited warranty
View Technical Specs
Performance
Watts 70/60/50W
Color Temp 3000/4000/5000K
Lumens 6,783-9,088 lm
Efficacy 121-151.1 lm/W
Color Accuracy 80-84 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 0.58A/0.50A/0.41A
208V
240V
277V 0.25A/0.23A/0.19
Input Watts 48.8-68.7W
Dimensions
Link to Dimension Drawing

Weight: 5.8 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IP Rating
Ingress protection rating of IP65 for dust and water
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-XV1MW3
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Consistency
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Electrical
Driver
70W: Constant Current, Class 1, 120V or 277V, 50/60Hz, 120V: 0.58A or 277V: 0.25A
60W: Constant Current, Class 1, 120V or 277V, 50/60Hz, 120V: 0.50A or 277V: 0.23A
50W: Constant Current, Class 1, 120V or 277V, 50/60Hz, 120V: 0.41A or 277V: 0.19A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Power Factor
99.5% at 120V, 96.3% at 277V
Voltage
120 or 277V
Dim to Off
Yes
Surge Protection
4kV
Aux Power Supply
Yes
Battery Backup
Battery backup will operate the fixture for 90 minutes if power fails. Wired for 120V or 277V.
Battery Backup Light Loss Factor
70W: 5.7%
60W: 6.7%
50W: 8%
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
70W: Replaces up to 250W Metal Halide (MH)

60W: Replaces up to 250W Metal Halide (MH)

50W: Replaces up to 200W Metal Halide (MH)
Construction
Cold Weather Starting
The minimum starting temperature is 0°C/32°F Ambient Temperature
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)

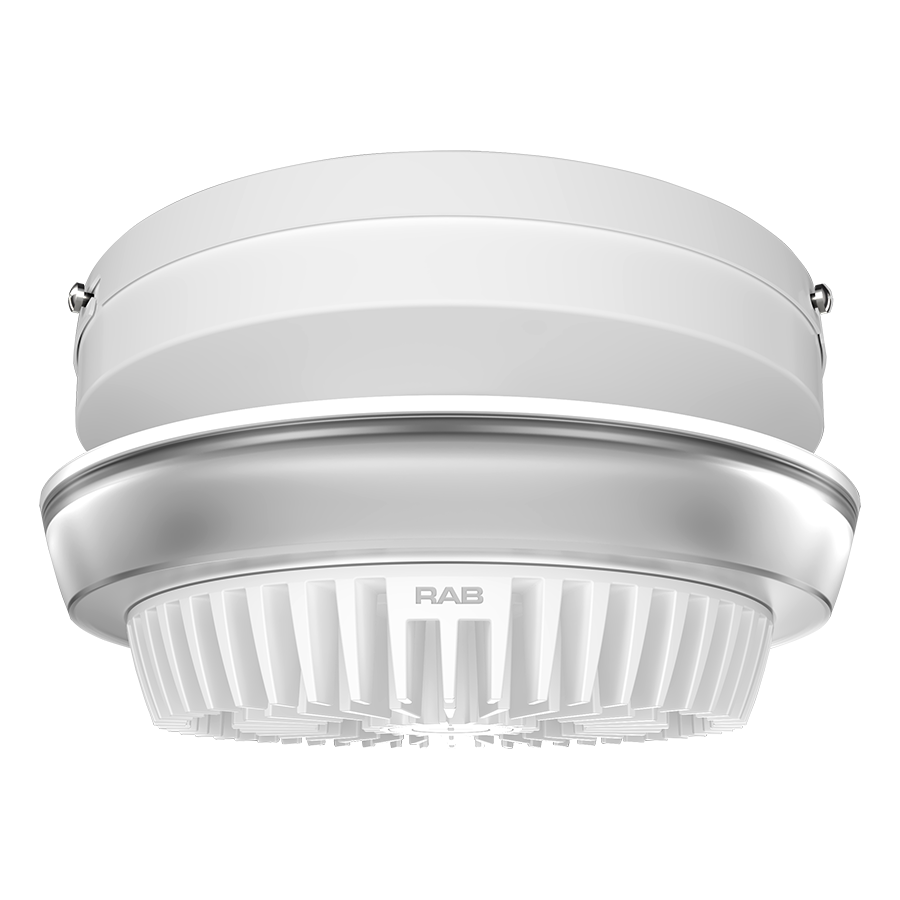

Housing
Die-cast aluminum
Lens
Polycarbonate lens
Reflector
Polycarbonate
Gaskets
Silcone rubber
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting

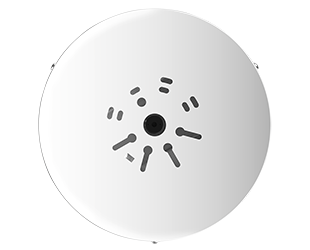

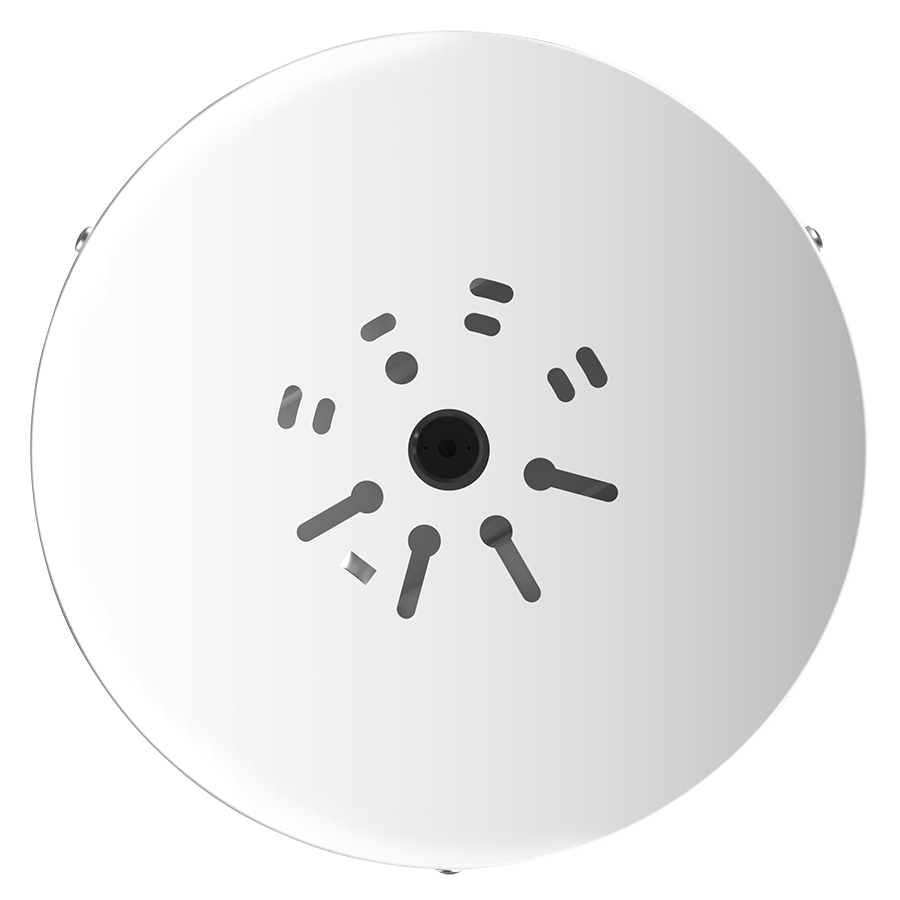

PARK34 accommodates surface mounting and its unique, removable adapter allows for both 1/2" and 3/4" NPT pendant mounting (by others).
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
