PIP30W/D10

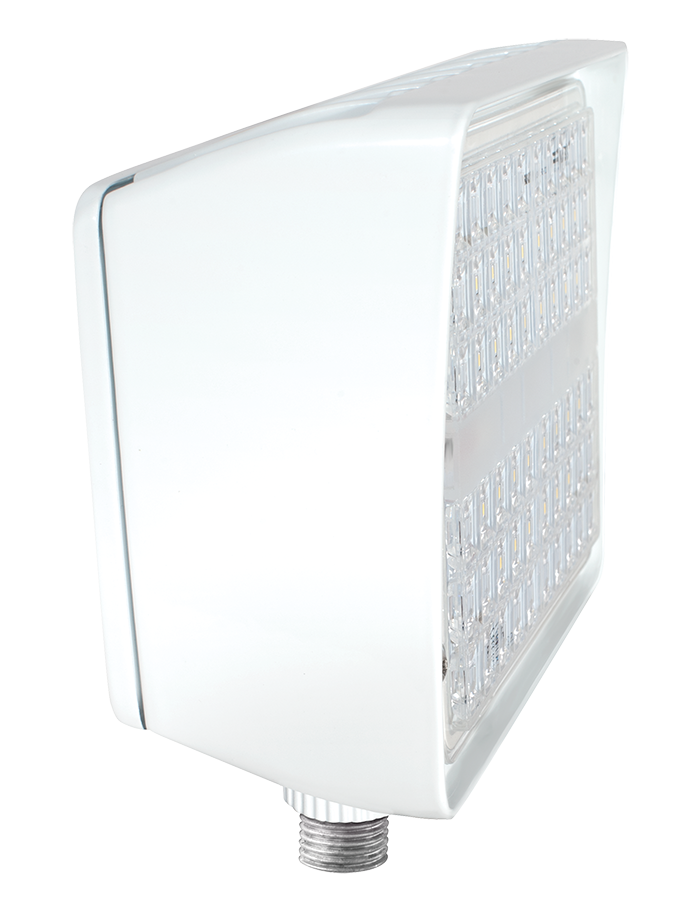

PIP30W/D10 large main
  • 60,000-hour LED lifespan
  • Standard 0-10V dimming driver
  • 5-Year, limited warranty
 View Technical Specs
View Price & Availability
Performance
Watts 30W
Color Temp 5000K (Cool)
Lumens 4,400 lm
Efficacy 144.3 lm/W
Color Accuracy 75 CRI
L70 Lifespan 60,000 Hours
Type Constant Current
120V 0.26A
208V 0.15A
240V 0.13A
277V 0.11A
Input Watts 30.5W
Dimensions
Link to Dimension Drawing

Weight: 3.7 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PX5516MJ
Electrical
Driver
Constant Current, Class 2, 50/60 Hz, 2kV, 120 - 277VAC, 120V: 0.26A, 208V: 0.15A, 240V: 0.13A, 277V: 0.11A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
5.81% at 120V, 6..60% at 277V
Power Factor
99.6% at 120V, 96.6% at 277V
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Performance
Lifespan
60,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
