PIPXL100T/D10/PCT

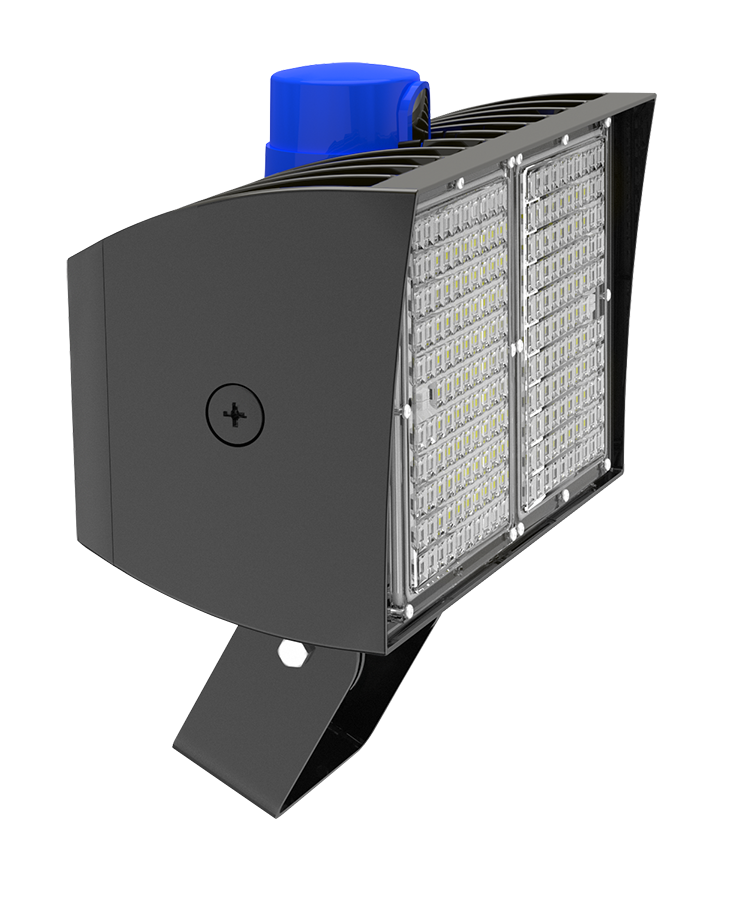

PIPXL100T/D10/PCT large main
  • Ultra-high efficiency
  • DLC Premium
  • 0-10V Dimming, standard
  • 60,000-Hour LED lifespan
  • 5-Year, limited warranty
 View Technical Specs
View Price & Availability
Performance
Watts 100W
Color Temp 5000K (Cool)
Lumens 15,899 lm
Efficacy 151 lm/W
Color Accuracy 74 CRI
L70 Lifespan 60,000 Hours
Type Constant Current
120V 0.88A
208V 0.48A
240V 0.42A
277V 0.38A
Input Watts 105.3W
Dimensions
Link to Dimension Drawing

Weight: 20.6 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for ground mounting.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: P2PSU64X
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 0.88A, 208V: 0.48A, 240V: 0.42A, 277V 0.38A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
4.28% at 120V, 7.59% at 277V
Power Factor
99.9% at 120V, 97.1% at 277V
Surge Protection
4 kV
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
