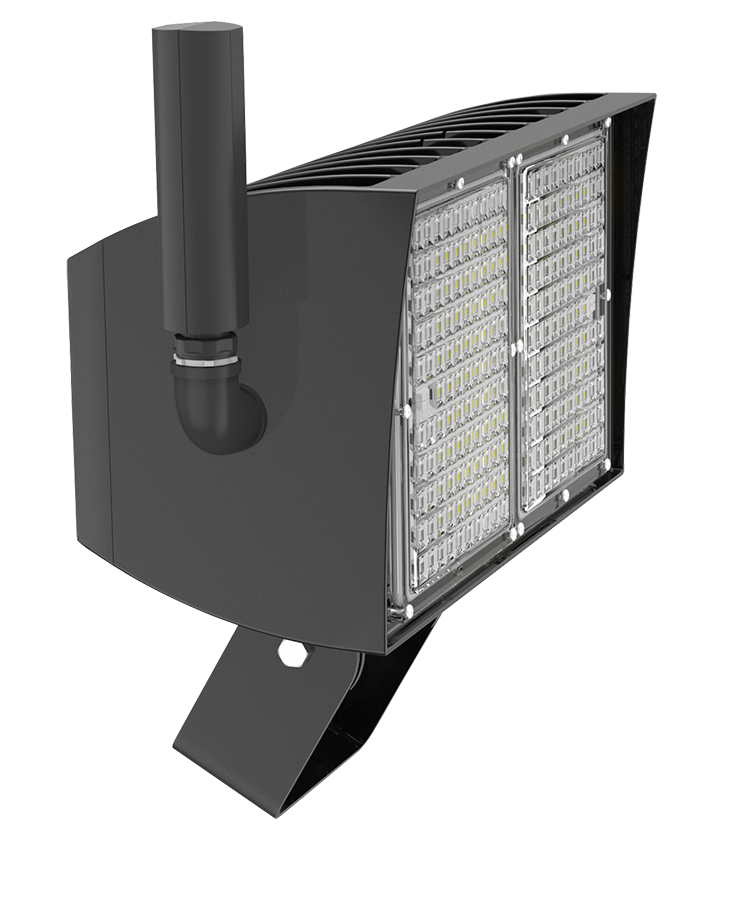

PIPXL70T/D10/LC
PIPXL70T/D10/LC
- Ultra-high efficiency
- DLC Premium
- 0-10V Dimming, standard
- 60,000-Hour LED lifespan
- 5-Year, Limited Fixture Warranty and 10-Year, No-Compromise Lightcloud Warranty
Performance
| Watts | 70W |
| Color Temp | 5000K (Cool) |
| Lumens | 11,191 lm |
| Efficacy | 156.1 lm/W |
| Color Accuracy | 74 CRI |
| L70 Lifespan | 60,000 Hours |
| Type | Constant Current |
| 120V | 0.60A |
| 208V | 0.34A |
| 240V | 0.30A |
| 277V | 0.26A |
| Input Watts | 71.7W |
Dimensions
Weight: 20.6 lbs
Technical Specifications
Installed with Lightcloud
Lightcloud is a commercial wireless lighting control system fully developed and supported by RAB. It's powerful and flexible, yet easy to use and install.
Learn MoreLightcloud
Lightcloud Controller Installed
Integrated/embedded networked lighting control, luminaire-level lighting control. Fixture, Zone, and plug-load control from one powerful device. LLLC - capable of switching, 0-10Vdimming, power/energy monitoring. Can also be used to extend the range of the Lightcloud mesh network communication protocols. Offers the capability to set the maximum light output to a less-than-maximum state of an individual luminaire at the time of installation or commissioning. The High-End trim functionality is field reconfigurable via the Lightcloud mesh network communication protocols. The Lightcloud controller can be attached to the fixture, junction box, or electrical panel.
DLC system - NHCZ2BIA17L
Learn more at www.lightcloud.com
DLC system - NHCZ2BIA17L
Learn more at www.lightcloud.com
Compliance
UL Listed
Suitable for wet locations. Suitable for ground mounting.
IESNA LM-79 & LM-80 Testing
RC LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80.
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PTHFT6UH
DLC Product Code: PTHFT6UH
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 0.60A, 208V: 0.34A, 240V: 0.30A, 277V 0.26A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
3.74% at 120V, 8.54% at 277V
Power Factor
99.9% at 120V, 96.7% at 277V
