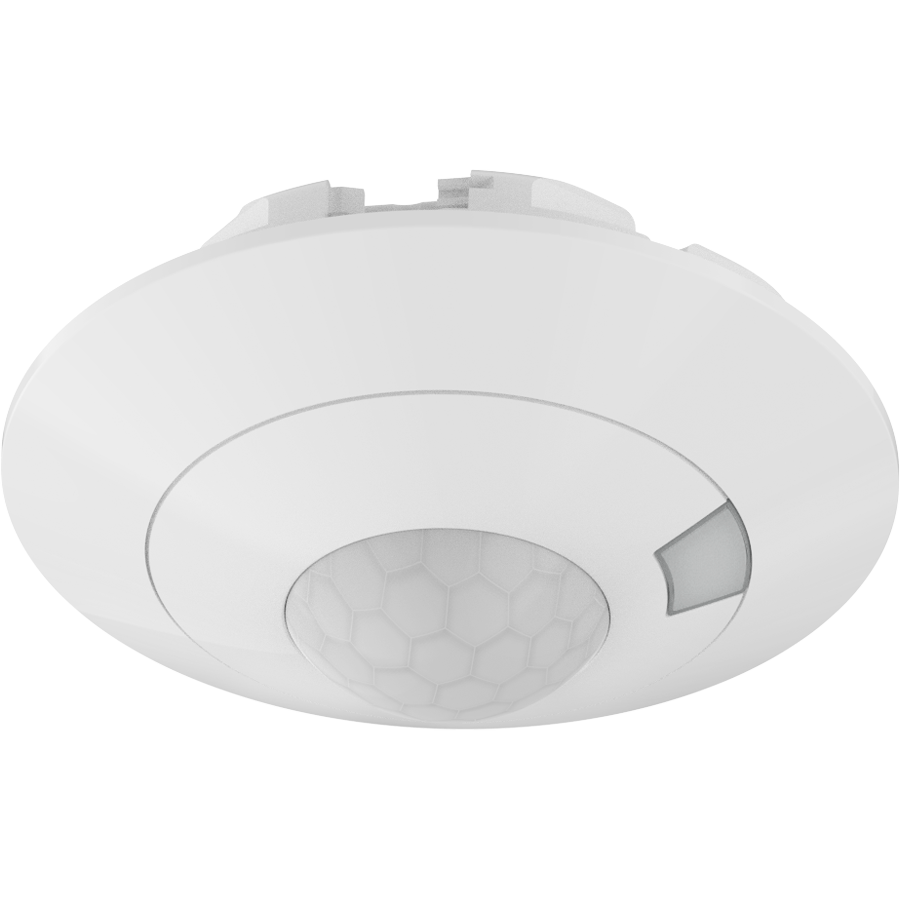

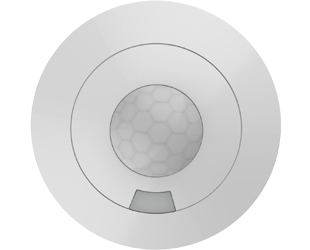

PIRB12/LCB

Spec Sheet Sell Sheet Spec Sheet

PIRB12/LCB

10-year battery lifespan

Surface mount or recessed with steel spring clips

Occupancy and vacancy sensing with adjustable sensitivity and timeouts

Communicates over secure wireless Bluetooth Mesh network-no Gateway or Hub required

Closed loop daylight harvesting

View Technical Specs

View Price & Availability

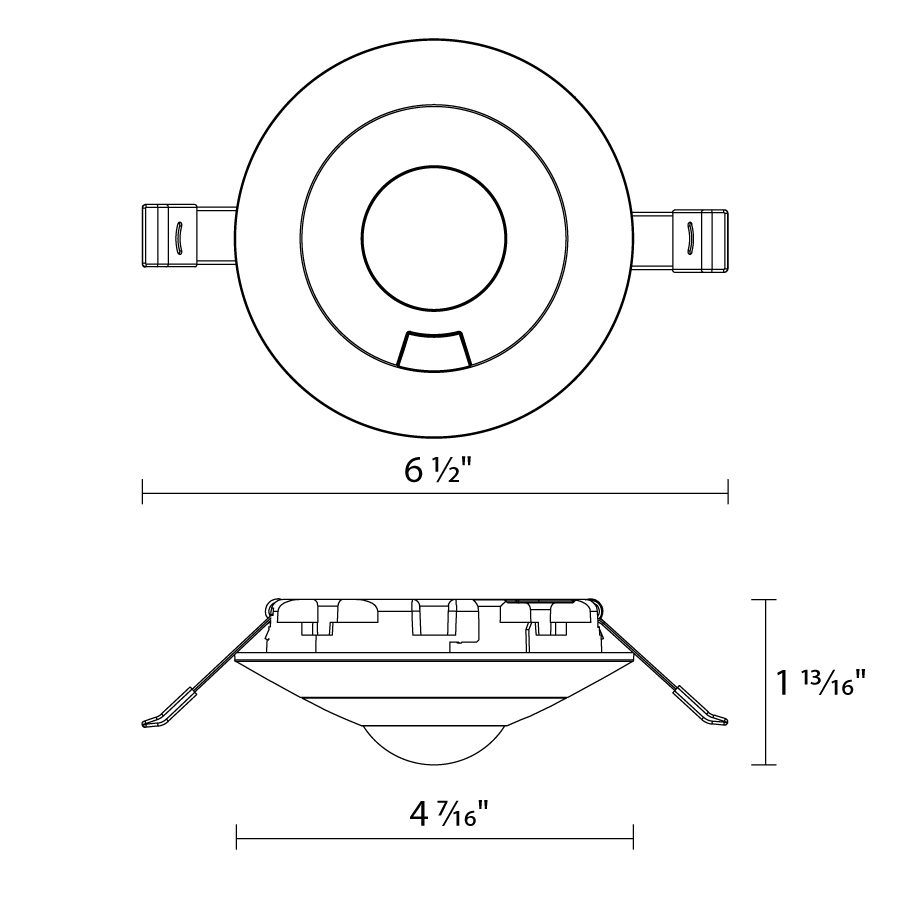

Dimensions

Weight: 0.4 lbs

Technical Specifications

Lightcloud

Lightcloud® Blue

Lightcloud Blue, RAB's wireless lighting control system, eliminates the need for a hub or controller. The app shows the fixtures nearest you first, so an area is set up in minutes, even without internet on site. Lights and schedules keep working if the Wi-Fi goes down, and a Nano adds control from anywhere.
DLC system: N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
Learn more at rablighting.com/lcb.

Gateway Required

Communication Protocol

Bluetooth

Range

Indoor: Up to 60 feet between obstructions; Up to 200 feet clear line of sight.

Outdoor: Up to 60 feet clear line of sight; Up to 18 feet around corners

Spacing Criteria

Lightcloud Blue devices should be placed within the specified range to communicate within the network. Building materials such as brick, concrete, and steel construction or heavy vegetation, bushes or trees may require additional Lightcloud Blue devices to extend around an obstruction.

Max # of Devices to Control

This sensor can be assigned to a single Area in the Lightcloud Blue mobile app to control all lights in that Area.

Performance

Product Type

Wireless Battery-Operated Occupancy/Daylight Sensor

Description

Skip the wiring. This battery-powered PIR sensor switches or dims your Lightcloud Blue®-enabled lights automatically, with setup handled entirely from the app.

Electrical

Dimmable

Yes when combined with other Lightcloud Blue devices or lights.

Sensor Settings

Operating Temperature

-4°F to +140°F(-20°C to +60°C )

Sensor Connection Type

Battery-operated

Max Mounting Height

12 ft

Detection Range

45 ft diameter at 12 ft mounting height

Default Setting

Motion Type: Occupancy
Motion Sensitivity: High
Brightness when triggered : 100%
Hold time: 20 minutes
Standby to dim: 20%
Standby time: 1 minute
When vacant: Off
Daylight sensing: Disabled
Photocell: Disabled

When the sensor is paired to the mobile app it will be disabled and can be configured using the app.

Daylight Sensing

Dim levels will continuously adjust based on the daylight threshold level set in the Lightcloud Blue mobile app.

Installation

Mounting

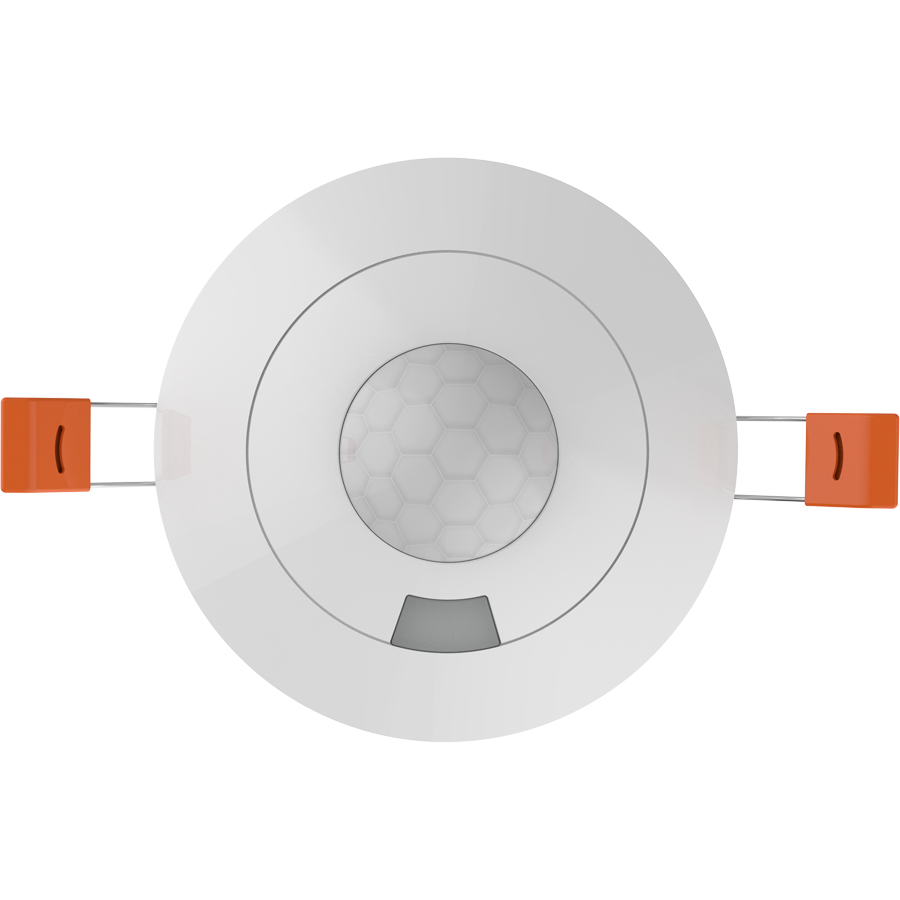

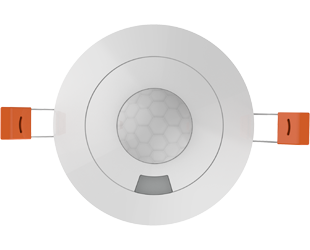

Surface mount or recessed with two tension steel spring clips (included), no housing required.

Emergency Backup

Battery Type

Lithium CR123A, 10-year lifespan

Construction

Enclosure Material

Polycarbonate

Compliance

Listings

UL Listed, UL Recognized

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

IP Rating

IP66

California Title 20 Compliant

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
