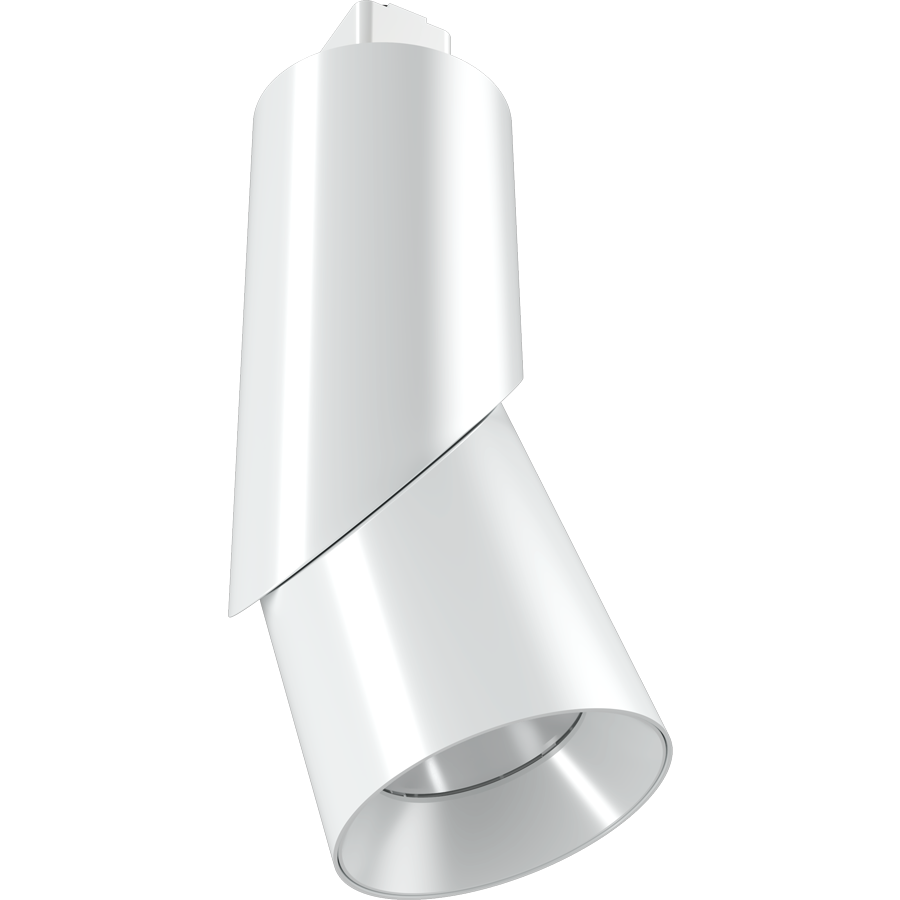

PIVOTL

20W 2700K/3000K/3500K/4000K/5000K

View Technical Specs

View Price & Availability

Performance

Watts	20/15/10W
Color Temp	2700K/3000K/3500K/4000K/5000K
Lumens	872-1765 lm
Efficacy	80-99.6 lm/W
Color Accuracy	94-96 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.17A/0.13A/0.09A
208V
240V
277V
Input Watts	9.9-19.8W

EZ-Layout

Create Custom Lighting Layout

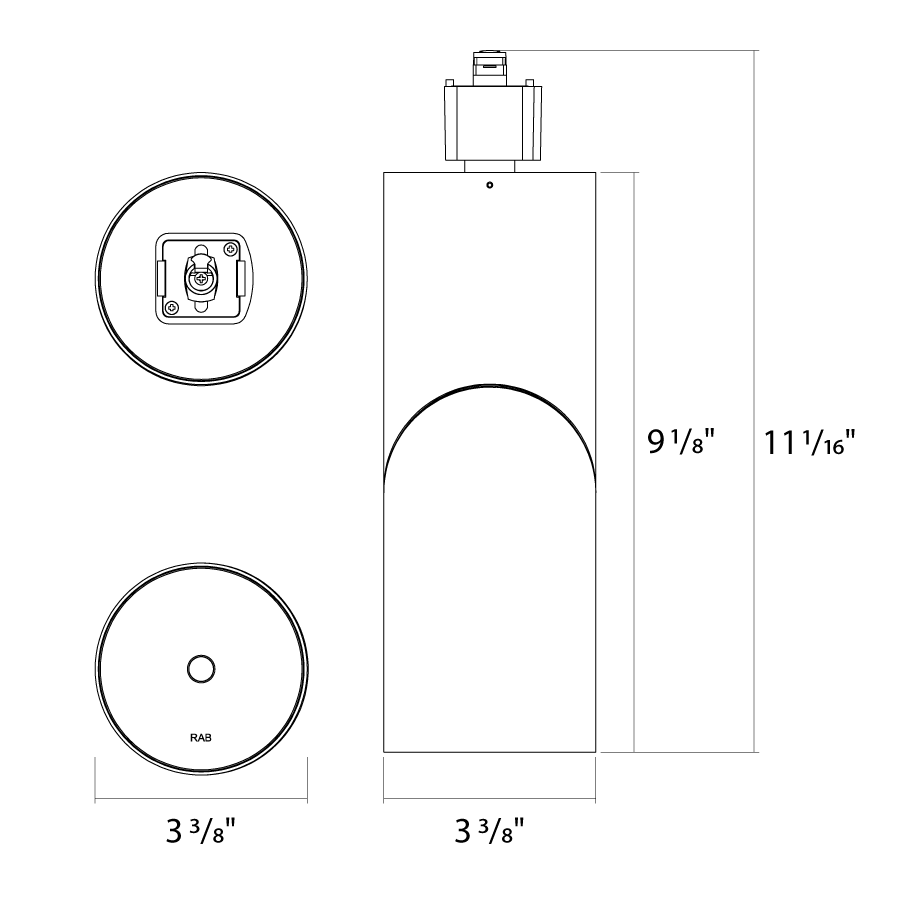

Dimensions

Weight: 2.4 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
20/15/10W (factory default 20W)
Color Temperature Selectable:
2700K, 3000K, 3500K, 4000K and 5000K (factory default 4000K)

Compliance

UL Listed

Suitable for dry locations

IP Rating

IP20

LED Characteristics

LEDs

Long-life, high-efficacy, COB (Chip on Board) LEDs

Color Temperature

2700/3000/3500/4000/5000K CCT Adjustable

Electrical

Driver

Constant Current, Class 2, 120V, 60 Hz, 120V
10W: 0.19A
8W: 0.14A
6W: 0.10A

Dimming Driver

120V TRIAC Dimmers

Aux Power Supply

Dim to Off

Surge Protection

Ring Wave L-N:2.5 kV, LN-PE 2.5 kV

Emergency Characteristics

Cold Weather Starting w/Battery Backup

The minimum starting temperature is -4°F (-20°C)

Construction

Maximum Ambient Temperature

Suitable for use in up to 104°F (40°C)

Housing

Aluminum

Reflector

Polycarbonate

Finish

Formulated for high durability and long-lasting color

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Installation

Mounting

H-Track Mount

Optical

Optics

36°

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
