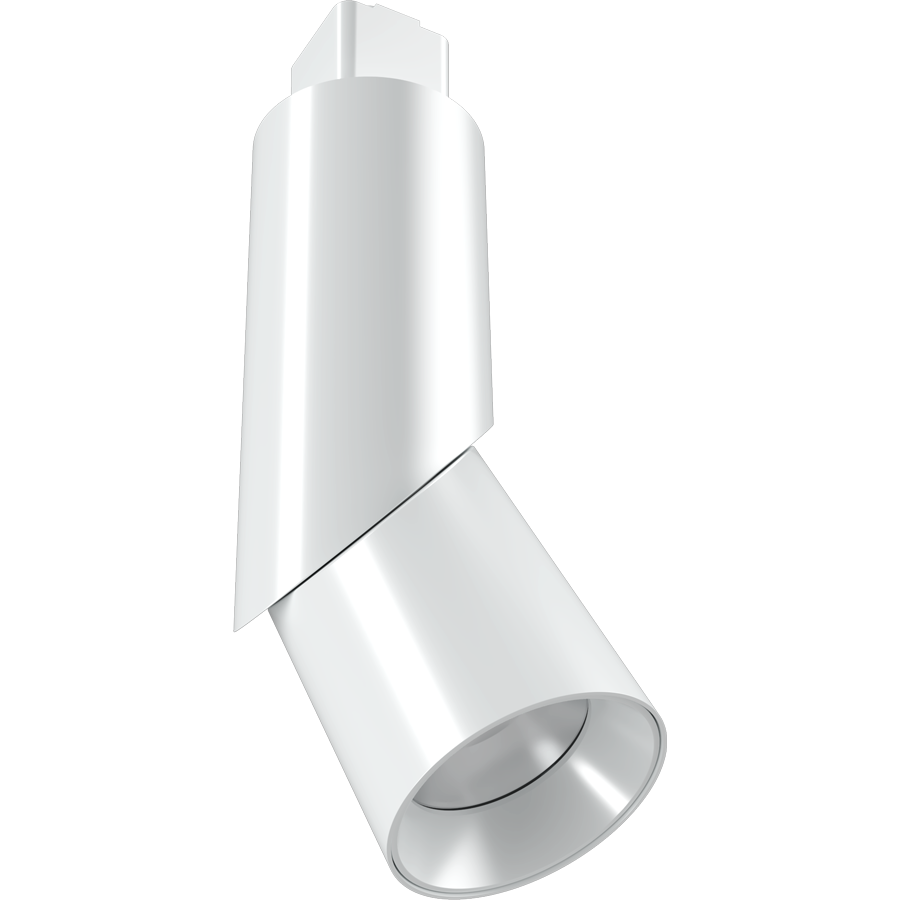

PIVOTM
Performance
| Watts | 10/8/06W |
| Color Temp | 2700K/3000K/3500K/4000K/5000K |
| Lumens | 493-890 lm |
| Efficacy | 81.8-94.4 lm/W |
| Color Accuracy | 93-96 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.08A/0.07A/0.05A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 5.7-9.9W |

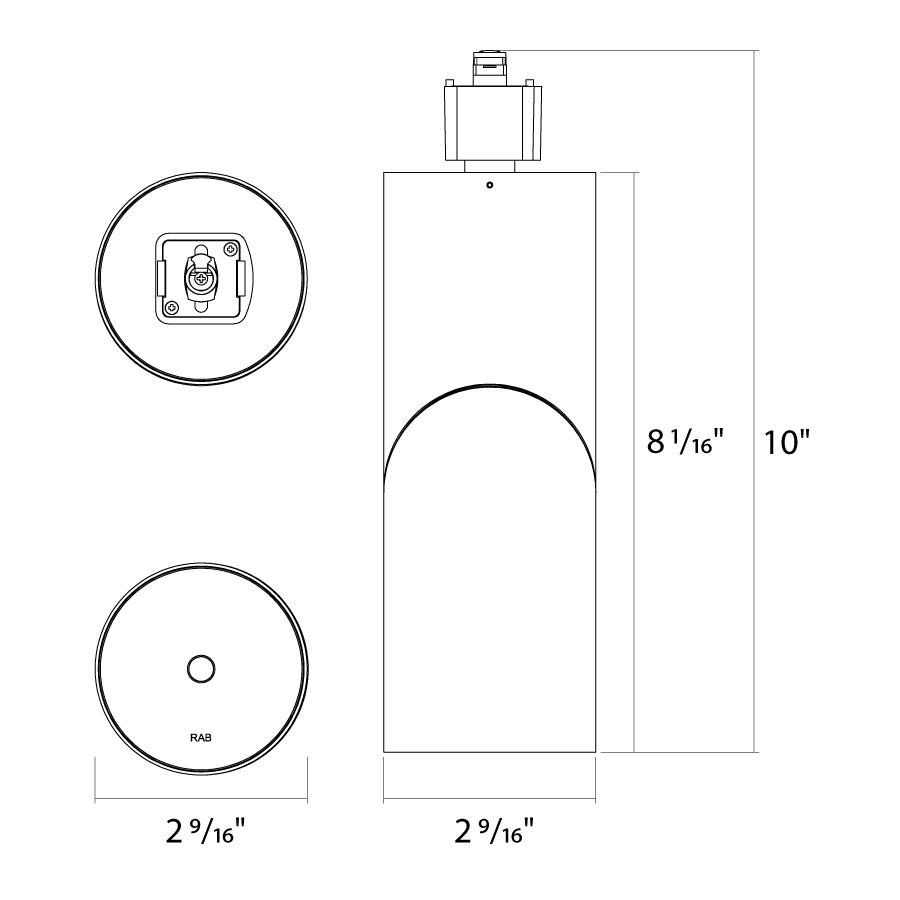

Dimensions
Weight: 1.6 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
10/8/6W (factory default 10W)
Color Temperature Selectable:
2700K, 3000K, 3500K, 4000K and 5000K (factory default 4000K)
10/8/6W (factory default 10W)
Color Temperature Selectable:
2700K, 3000K, 3500K, 4000K and 5000K (factory default 4000K)
Compliance
UL Listed
Suitable for dry locations
IP Rating
IP20
LED Characteristics
LEDs
Long-life, high-efficacy, COB (Chip on Board) LEDs
Color Temperature
2700/3000/3500/4000/5000K CCT Adjustable
Electrical
Driver
Constant Current, Class 2, 120V, 60 Hz, 120V
10W: 0.10A
8W: 0.08A
6W: 0.06A
10W: 0.10A
8W: 0.08A
6W: 0.06A
Dimming Driver
120V TRIAC Dimmers
Aux Power Supply
No
Dim to Off
No
Surge Protection
Ring Wave L-N:2.5 kV, LN-PE 2.5 kV
Emergency Characteristics
Cold Weather Starting w/Battery Backup
The minimum starting temperature is -4°F (-20°C)
Construction
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Housing
Aluminum
Reflector
Polycarbonate
Finish
Formulated for high durability and long-lasting color
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Installation
Mounting
H-Track Mount
Optical
Optics
36°
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
