PR5-07-20WT - RAB Lighting

PR5-07-20WT

Spec Sheet Spec Sheet

PR5-07-20WT large main

PR5-07-20WT

Designed for ground mounting

Heavy duty TGIC polyester coating

Reinforced hand holes with grounding lug and removable cover for easy wiring access

Pole caps, base covers & bolts are sold separately

Custom manufactured for each application

View Technical Specs

View Price & Availability

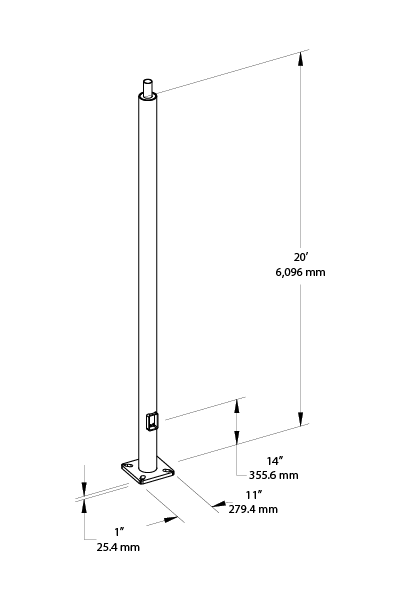

Dimensions

Link to Dimension Drawing

Weight: 235.4 lbs

Technical Specifications

Compliance

CSA Listed

Suitable for wet locations

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

Performance

Description

Steel pole 5" round 7 gauge 20 foot welded tenon square base

Construction

Shaft

46,000 p.s.i. minimum yield.

Hand Holes

Reinforced with grounding lug and removable cover

Base Plates

36,000 p.s.i. minimum yield.

Color

Bronze powder coating

Height

20 ft

Gauge

7

Wall Thickness

3/16"

Shaft Size

5"

Anchor Bolt Templates

WARNING Template must be printed on 12" x 18" sheet for actual size. CHECK SCALE BEFORE USING. Templates shipped with anchor bolts and available online.

Max EPA's/Max Weights

70MPH 25.0 ft/450 lb.
80MPH 18.2 ft/420 lb.
90MPH 13.6 ft/400 lb.
100MPH 10.2 ft/380 lb.
110MPH 7.8 ft/170 lb.
120MPH 5.9 ft/160lb.
130MPH 4.4 ft/150 lb.
140MPH 3.3 ft/135 lb.
150MPH 2.4 ft/50 lb

Accessories

Base/Cap: BASE-R5
Anchor Bolts: BOLT5-8

Other

Terms of Sale

Pole Terms of Sale is available online.
