PS30-41S-EX39-8CCT-DIM-UNV

Spec Sheet IES File Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

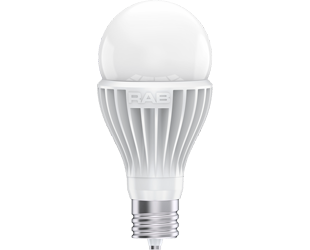

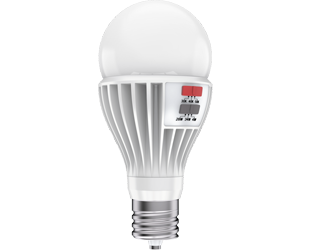

PS30-41S-EX39-8CCT-DIM-UNV small thumb-1

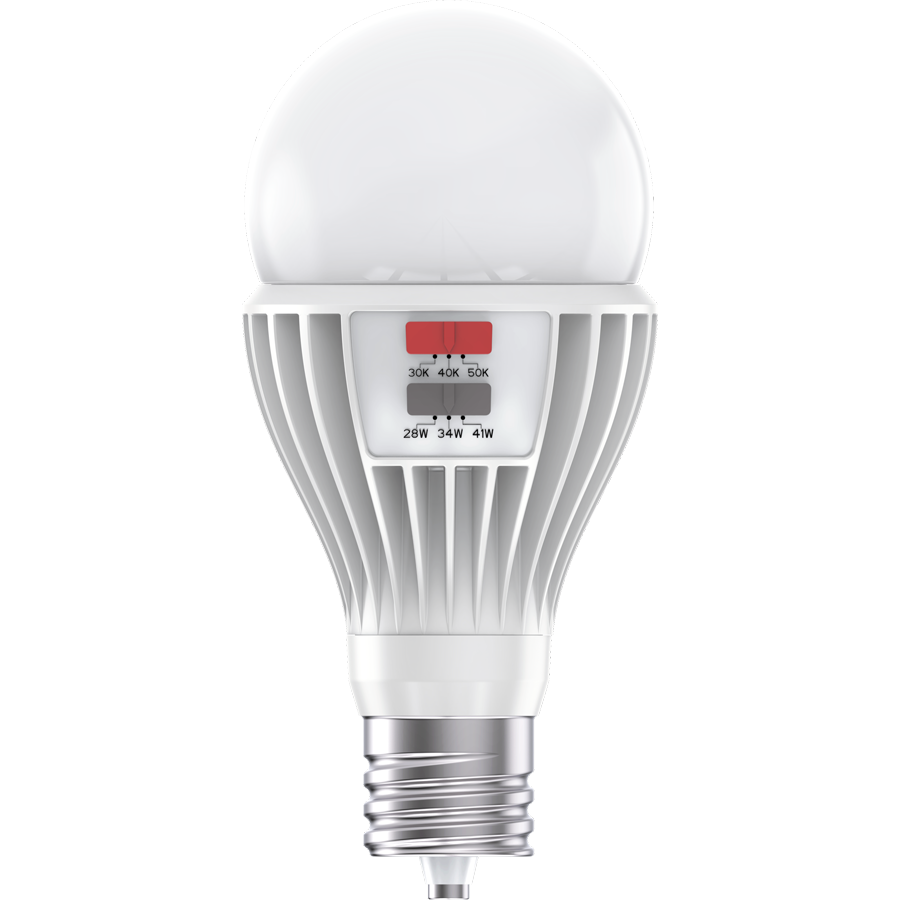

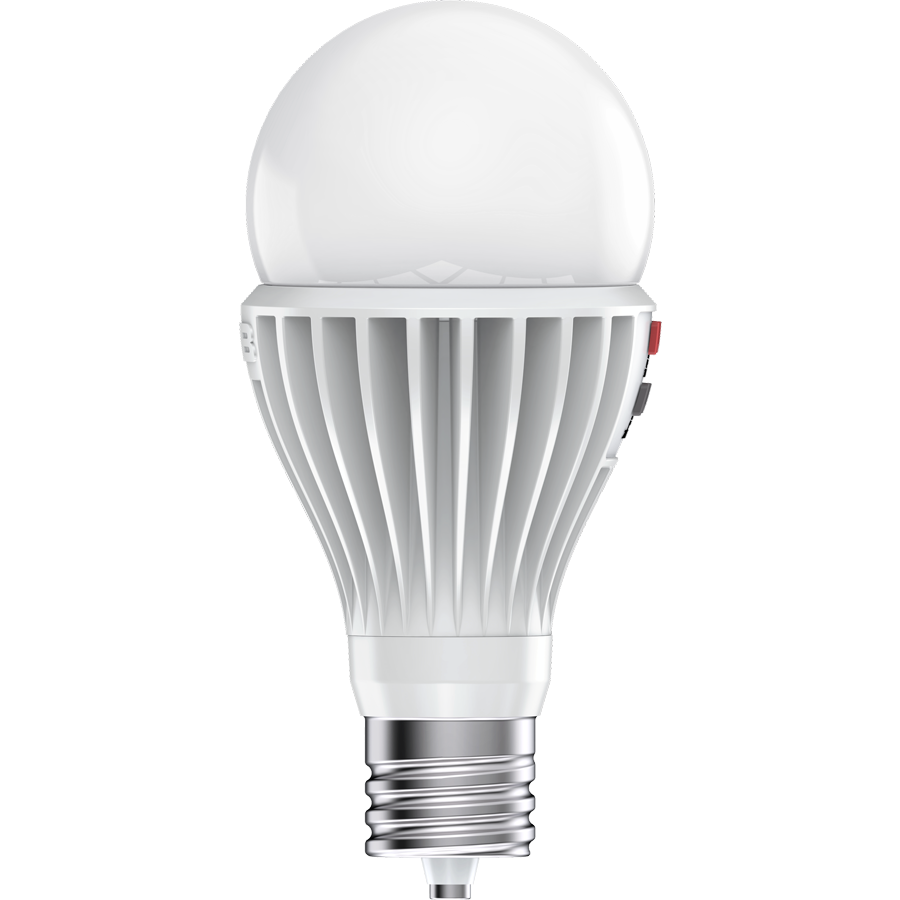

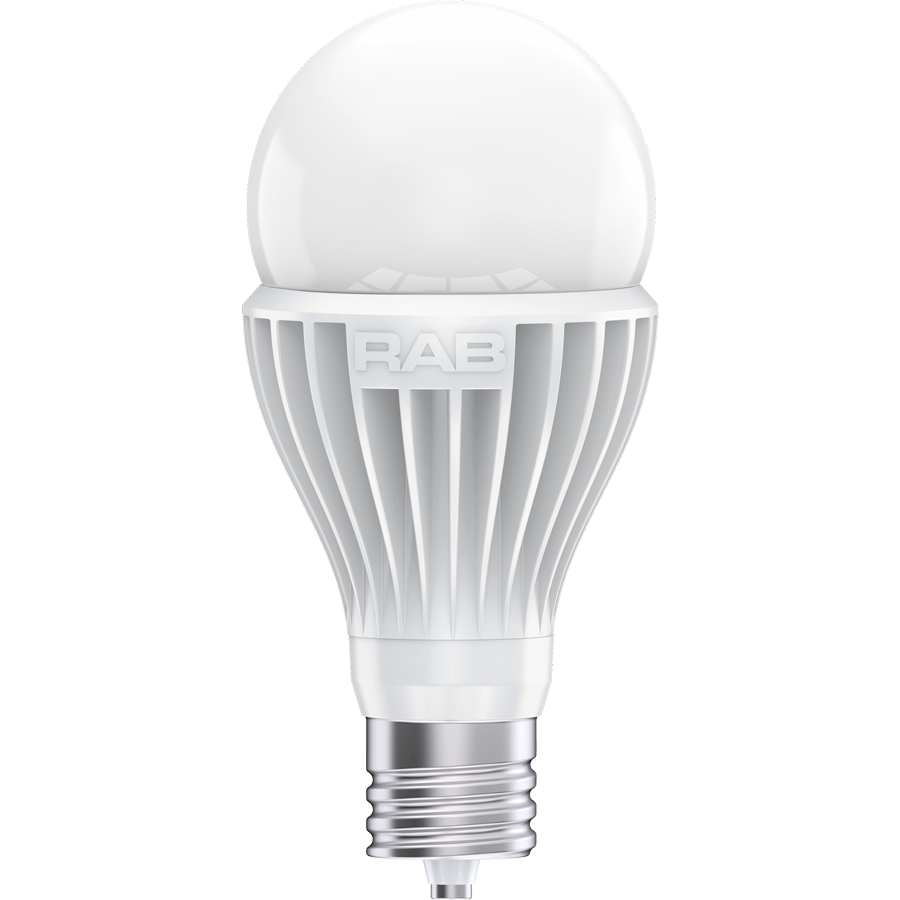

PS30-41S-EX39-8CCT-DIM-UNV

28W 3000/4000/5000K

Wattage & CCT field-adjustable HID replacement lamps with omnidirectional light output

Die-cast housing with superior thermal management

120-277V Universal driver, internal surge protection, and suitable for use in totally enclosed fixtures

Integral driver enables lamp to be wired directly to line voltage without need for an external driver or ballast

3000/4000/5000K Selectable color temperature

View Technical Specs

View Price & Availability

Performance

Watts	28/34/41W
Color Temp	3000/4000/5000K
Lumens	3947-5859 lm
Efficacy	141.9-158.6 lm/W
Color Accuracy	83-86 CRI
L70 Lifespan	50,000 Hours

Type
120V	0.21A/0.22A/0.26A/0.32A/0.33A
208V	0.12A/0.13A/0.15A/0.18A/0.19A
240V	0.11A/0.13A/0.16A
277V	0.12A/0.14A/0.16A
Input Watts	25.4-38.9W

EZ-Layout

Create Custom Lighting Layout

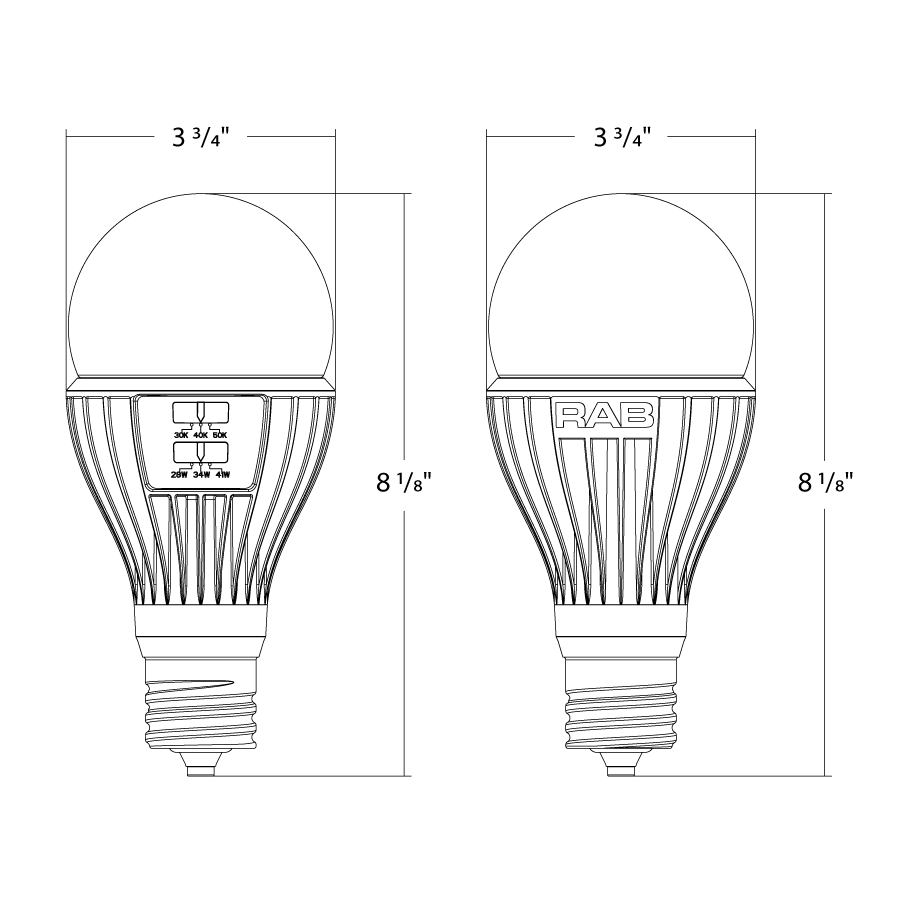

Dimensions

Weight: 1.5 lbs

Technical Specifications

Performance

Product Type

HID Repacement Bulb

Description

These HID replacement lamps provide smooth, diffuse, omnidirectional light, making them great for any HID retrofit installation

Wattage Equivalency

300W Incandescent, 100-175W HID

Input Wattage

41/34/28W

Lumens

5,600/4,750/4,000lm @3000K
6,000/5,000/4,200m @4000K
5,800/4,900/4,100lm @5000K

Efficacy

137lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

THD

≤20%

Power Factor

≥0.9

Dimmable

Step Dimming: 75-100%
TRIAC Dimming:20-100%

Input Voltage

120-277V

Operating Frequency

50/60Hz

Input Current @ 120V (mA)

330mA

Input Current @ 208V (mA)

200mA

Input Current @ 240V (mA)

175mA

Input Current @ 277V (mA)

160mA

Operating Temperature

-40°F to 113°F (-40°C to 45°C)

Flicker

Step Dimming: 75-100%
TRIAC Dimming:20-100%

Surge Protection

4 kV

LED Characteristics

Beam Angle

230°

Color Temperature

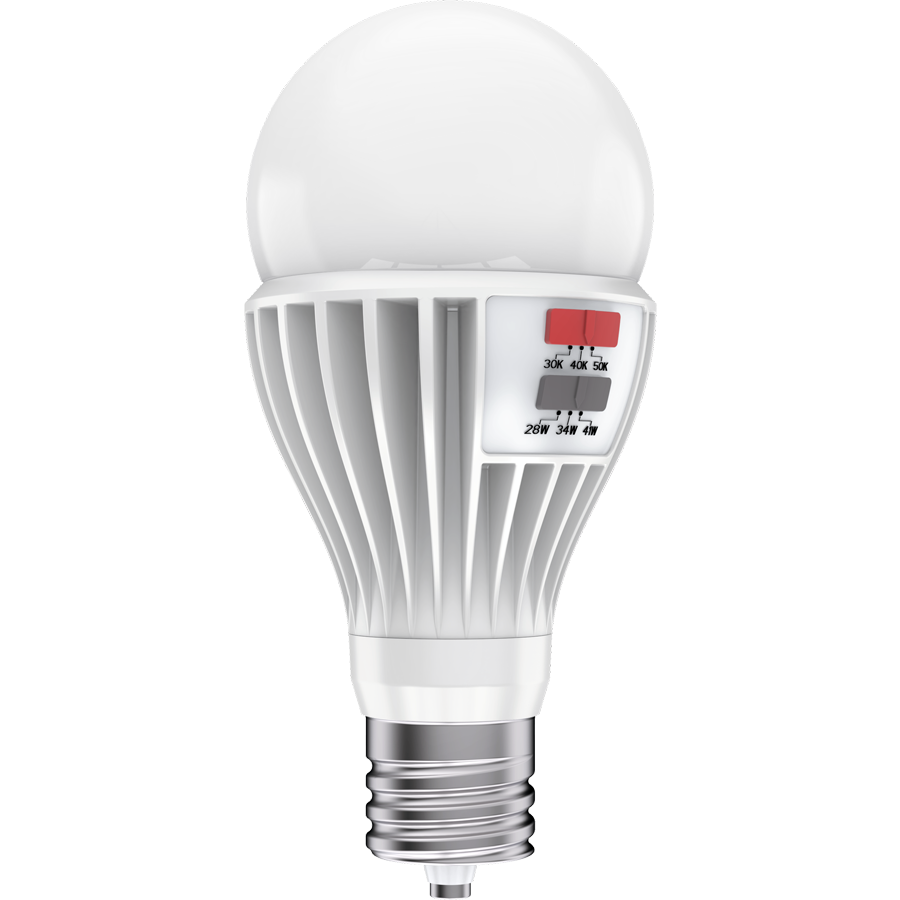

Field adjustable via dip switch 3000/4000/5000K

Color Accuracy (CRI)

80 CRI

R9 Value

High color performance with R9 greater than 14

Color Consistency

<7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Installation Method

UL Type B, Ballast Bypass

Installation Orientation

Universal Installation

Base Type

EX39 Exlusionary Mogul

Construction

Finish

White

Lens Material

Frosted polycarbonate lens diffuses light evenly and smoothly

Enclosure Material

Precision die-cast aluminum heat sink has superior thermal management

Lens Finish

Frosted Milky white

Compliance

Listings

UL Listed, UL Classified

Environment

Suitable for use indoors in dry and damp environments.

Fixture Rating

Suitable for use in enclosed fixtures

IP Rating

IP54

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

Certification Model Number

H20049(HIDFA-200S-EX39-8CCT-BYP)

California Title 20 Compliant

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

Compatible Accessories

HID-ACC-E26

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
