PS4-07-20D2 - RAB Lighting

PS4-07-20D2

Spec Sheet Spec Sheet

PS4-07-20D2 large main

PS4-07-20D2

Designed for ground mounting

Heavy duty TGIC polyester coating

Reinforced hand holes with grounding lug and removable cover for easy wiring access

Pole caps, base covers & bolts are sold separately

Custom manufactured for each application

View Technical Specs

View Price & Availability

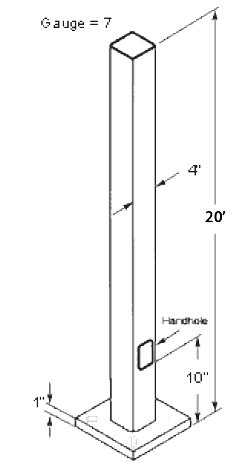

Dimensions

Link to Dimension Drawing

Weight: 195.0 lbs

Technical Specifications

Compliance

CSA Listed

Suitable for wet locations

Construction

Shaft

46,000 p.s.i. minimum yield.

Hand Holes

Reinforced with grounding lug and removable cover

Base Plates

36,000 p.s.i. minimum yield.

Shipping Protection

All poles are shipped in individual corrugated cartons to prevent finish damage

Color

Bronze powder coating

Height

20 ft

Weight

195 lbs

Gauge

7

Wall Thickness

3/16"

Shaft Size

4"

Hand Hole Dimensions

3" x 5"

Bolt Circle

8 1/2"

Base Dimension

8"

Anchor Bolt

Anchor bolt kits are sold separately. Order ABK4-07-BCK-S4 for anchor bolt kits.

Anchor Bolt Templates

WARNING Template must be printed on 11" x 17" sheet for actual size. CHECK SCALE BEFORE USING. Templates shipped with anchor bolts and available online.

Max EPA's/Max Weights

70MPH 15.7 ft/430 lb.
80MPH 10.7 ft/425 lb.
90MPH 7.3 ft/420 lb.
100MPH 4.9 ft/400 lb.
110MPH 3.1 ft/395 lb.
120MPH 1.7 ft/395lb.
130MPH 0.7 ft/360 lb

Other

Terms of Sale

Pole Terms of Sale is available online.
