• Designed for ground mounting
  • Heavy duty TGIC polyester coating
  • Reinforced hand holes with grounding lug and removable cover for easy wiring access
  • Pole caps, base covers & bolts are sold separately
  • Custom manufactured for each application
View Technical Specs

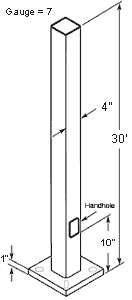

Dimensions
Link to Dimension Drawing

Weight: 286.0 lbs

Technical Specifications
Compliance
CSA Listed
Suitable for wet locations
Construction
Shaft
46,000 p.s.i. minimum yield.
Hand Holes
Reinforced with grounding lug and removable cover
Base Plates
Slotted base plates 36,000 p.s.i.
Shipping Protection
All poles are shipped in individual corrugated cartons to prevent finish damage
Color
Bronze powder coating
Height
30 ft
Gauge
7
Shaft Size
4"
Hand Hole Dimensions
3" x 5"
Bolt Circle
8 1/2"
Base Dimension
8"
Weight
286 lbs
Anchor Bolt
Galvanized anchor bolts and galvanized hardware and anchor bolt template
Anchor Bolt Templates
WARNING Template must be printed on 11" x 17" sheet for actual size. CHECK SCALE BEFORE USING. Templates shipped with anchor bolts and available online.
Pre-Shipped Anchor Bolts
Bolts can be pre-shipped upon request for additional freight charge
Max EPA's/Max Weights
70MPH 4.8 ft/245 lb.
80MPH 1.6 ft/245lb
Other
Terms of Sale
Pole Terms of Sale is available online.

Recently Viewed Products

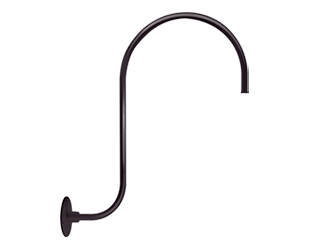

 This is a link to the product GN5LED13NG GN5LED13NG
