PS4-11B-15WT

Spec Sheet Family Spec Sheet Spec Sheet

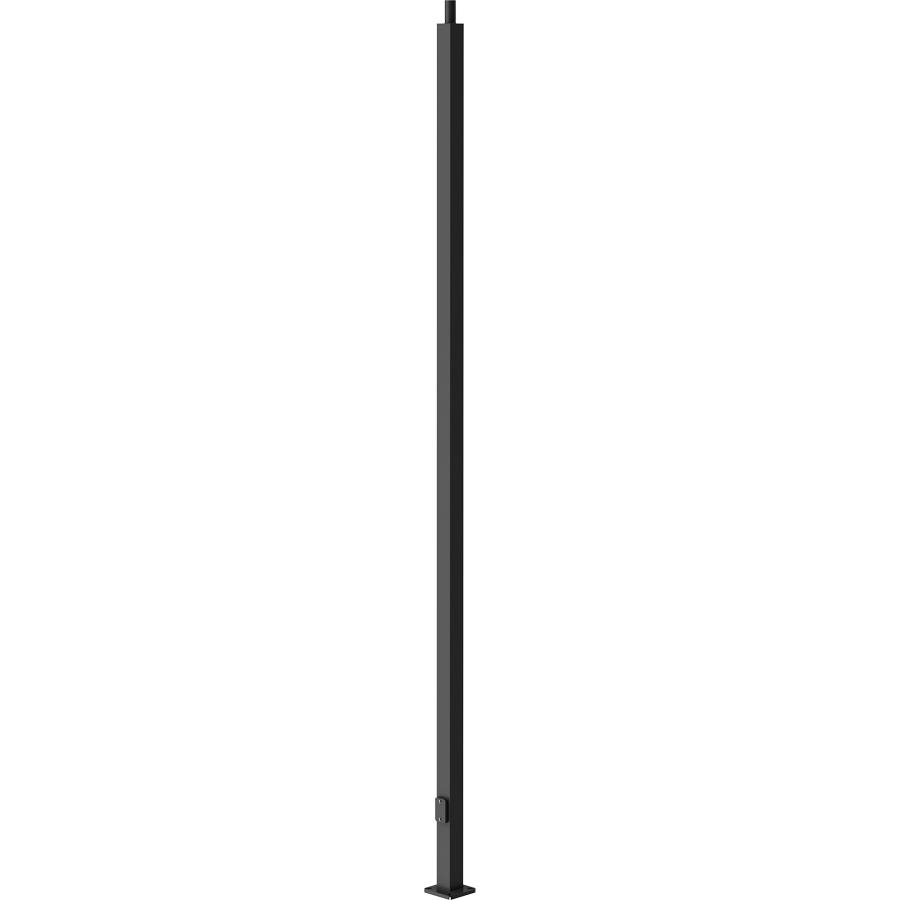

PS4-11B-15WT

Designed for ground mounting

Heavy duty TGIC polyester coating

Reinforced hand holes with grounding lug and removable cover for easy wiring access

Pole caps, base covers & bolts are sold separately

Custom manufactured for each application

View Technical Specs

View Price & Availability

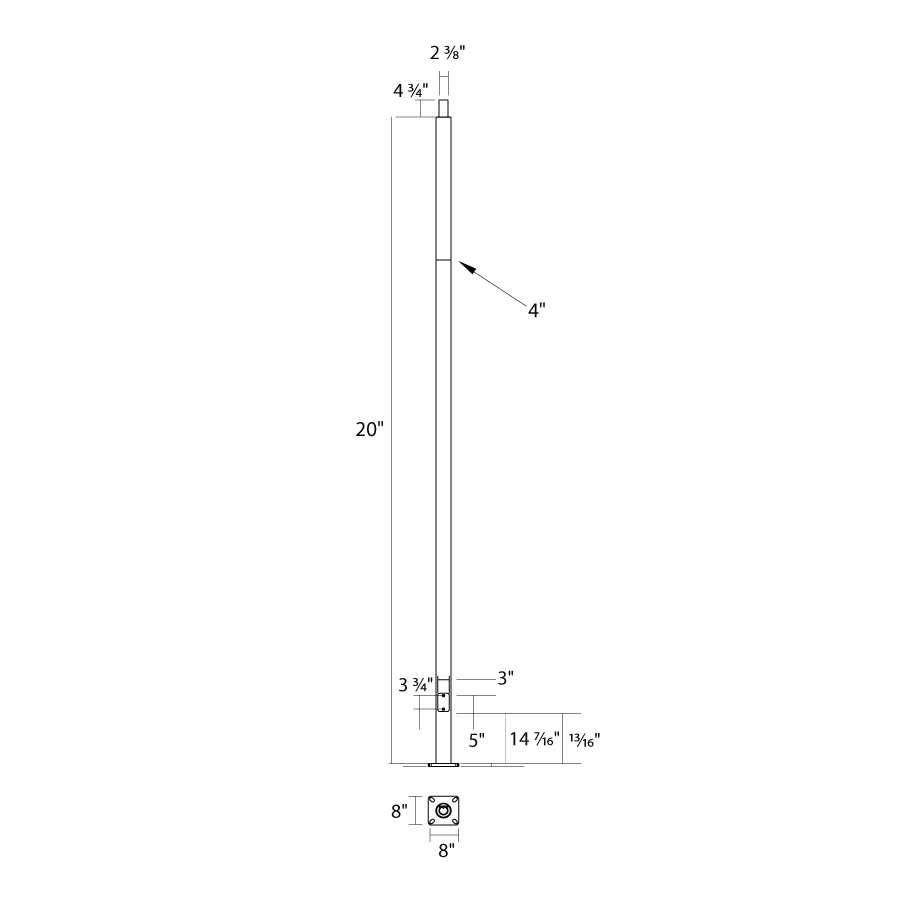

Dimensions

Weight: 121.3 lbs

Technical Specifications

Compliance

CSA Listed

Suitable for wet locations

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

Construction

Shaft

46,000 p.s.i. minimum yield.

Hand Holes

Reinforced with grounding lug and removable cover

Base Plates

Slotted base plates 36,000 p.s.i.

Shipping Protection

All poles are shipped in individual corrugated cartons to prevent finish damage

Color

Black powder coating

Tenon

Welded 2 3/8" tenon included

Height

15 ft

Gauge

Wall Thickness

1/8"

Shaft Size

Hand Hole Dimensions

3" x 5"

Bolt Circle

8 1/2"

Base Dimension

Weight

134 lbs

Base Covers & Caps

Base covers & caps are sold separately. Order BC4/B for base covers & caps.

Anchor Bolt

Anchor bolt is sold separately. Order BOLT4/11 for anchor bolt.

Anchor Bolt Templates

WARNING Template must be printed on 11" x 17" sheet for actual size. CHECK SCALE BEFORE USING. Templates shipped with anchor bolts and available online.

Max EPA's/Max Weights

70MPH 17.4 ft/450 lb.
80MPH 12.5 ft/440 lb.
90MPH 9.0 ft/440 lb.
100MPH 6.6 ft/440 lb.
110MPH 4.8 ft/435 lb.
120MPH 3.4 ft/435lb.
130MPH 2.3 ft/435 lb.
140MPH 1.4 ft/430 lb.
150MPH 0.8 ft/420 lb

Other

Terms of Sale

Pole Terms of Sale is available online.
