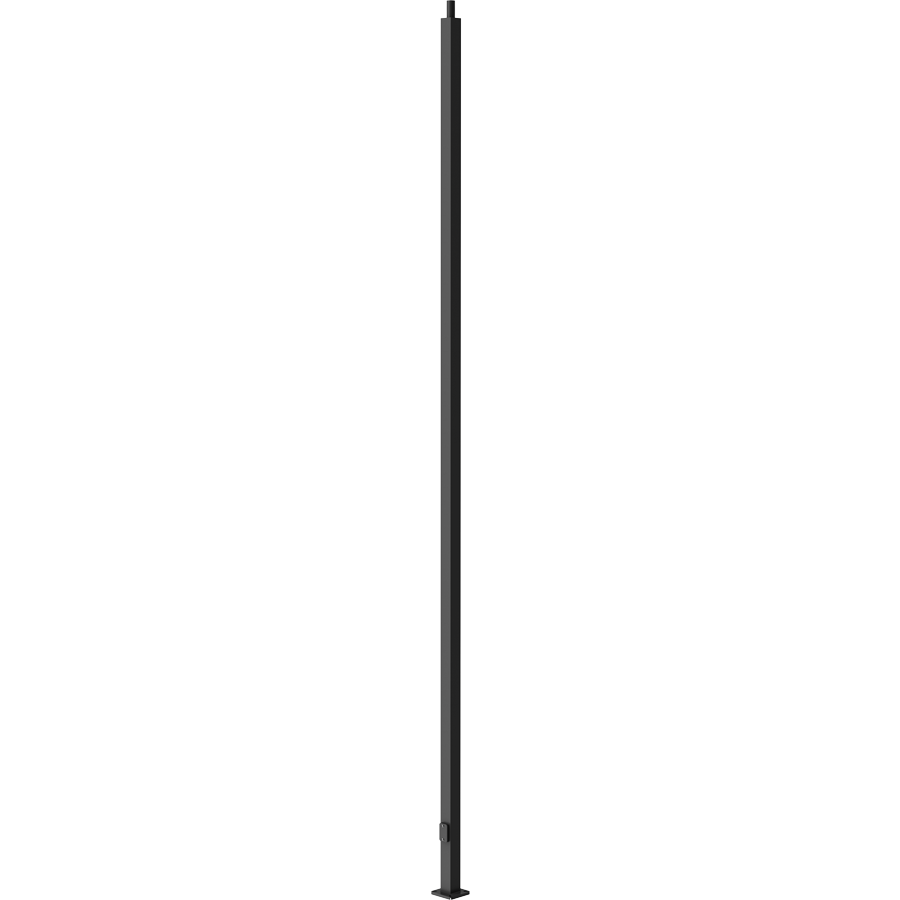

PS4-11B-20WT
PS4-11B-20WT
- Designed for ground mounting
- Heavy duty TGIC polyester coating
- Reinforced hand holes with grounding lug and removable cover for easy wiring access
- Pole caps, base covers & bolts are sold separately
- Custom manufactured for each application

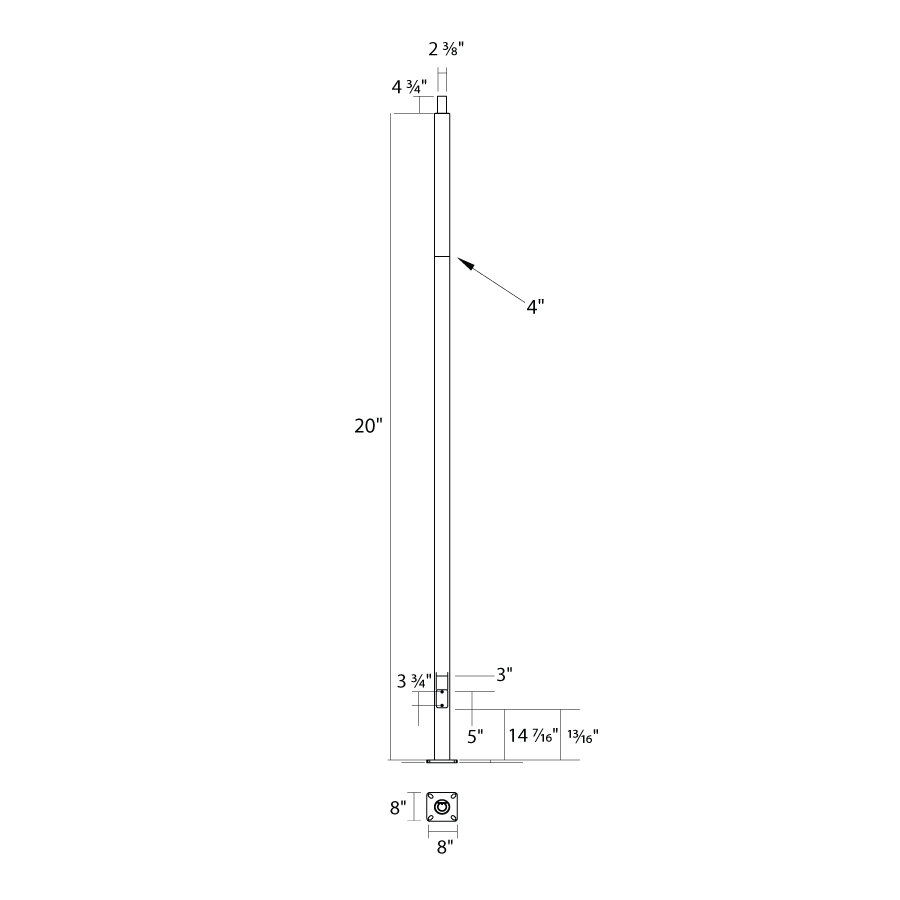

Dimensions
Weight: 152.1 lbs
Technical Specifications
Compliance
CSA Listed
Suitable for wet locations
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Construction
Shaft
46,000 p.s.i. minimum yield.
Hand Holes
Reinforced with grounding lug and removable cover
Base Plates
Slotted base plates 36,000 p.s.i.
Shipping Protection
All poles are shipped in individual corrugated cartons to prevent finish damage
Color
Bronze powder coating
Tenon
Welded 2 3/8" tenon included
Height
20 ft
Gauge
11
Wall Thickness
1/8"
Shaft Size
4"
Hand Hole Dimensions
3" x 5"
Bolt Circle
8 1/2"
Base Dimension
8"
Weight
138 lbs
Base Covers & Caps
Base covers & caps are sold separately. Order BC4/B for base covers & caps.
Anchor Bolt
Anchor bolt is sold separately. Order BOLT4/11 for anchor bolt.
Anchor Bolt Templates
WARNING Template must be printed on 11" x 17" sheet for actual size. CHECK SCALE BEFORE USING. Templates shipped with anchor bolts and available online.
Max EPA's/Max Weights
70MPH 10.7 ft/360 lb.
80MPH 7.0 ft/350lb.
90MPH 4.3 ft/350 lb.
100MPH 2.5 ft/350 lb.
110MPH 1.1 ft/350 lb.
120MPH 0.1 ft/340lb
80MPH 7.0 ft/350lb.
90MPH 4.3 ft/350 lb.
100MPH 2.5 ft/350 lb.
110MPH 1.1 ft/350 lb.
120MPH 0.1 ft/340lb
Other
Terms of Sale
Pole Terms of Sale is available online.
