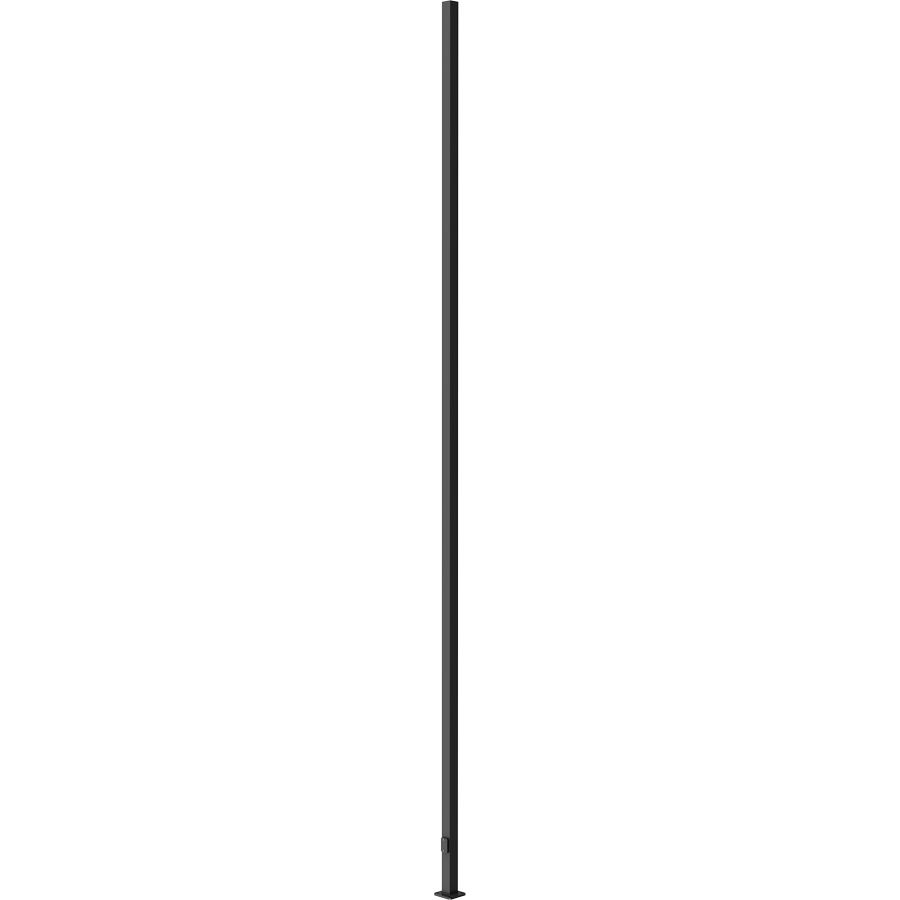

PS4-11B-25D2
PS4-11B-25D2
- Designed for ground mounting
- Heavy duty TGIC polyester coating
- Reinforced hand holes with grounding lug and removable cover for easy wiring access
- Pole caps, base covers & bolts are sold separately
- Custom manufactured for each application

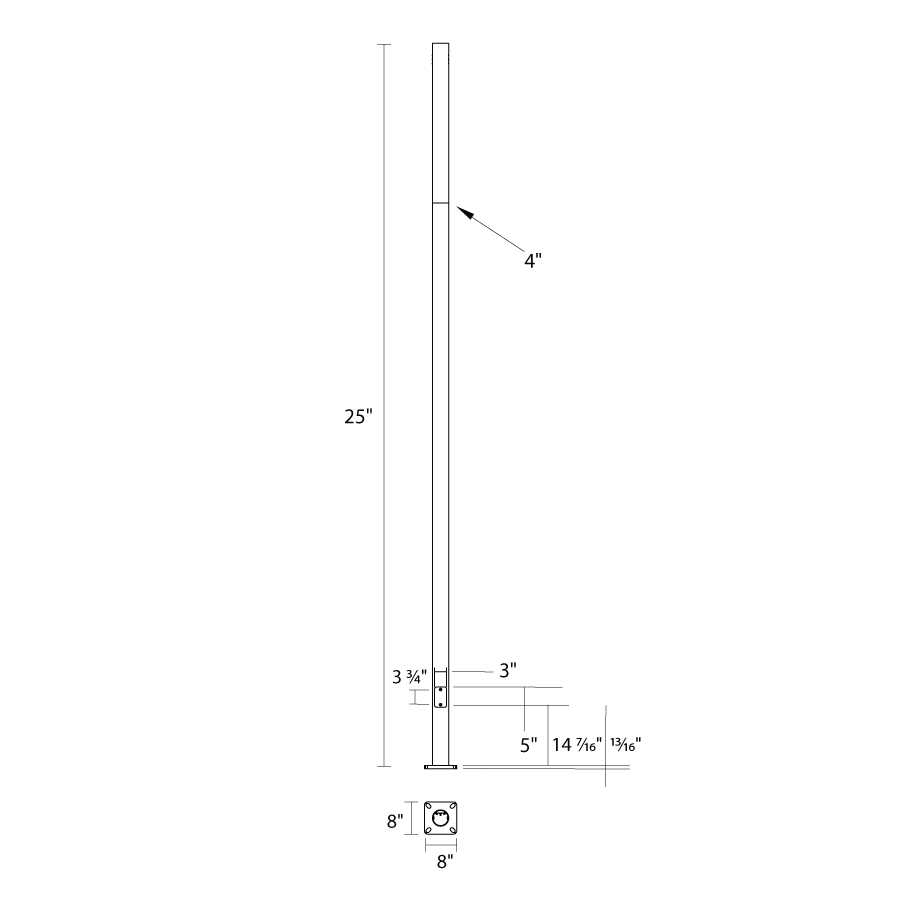

Dimensions
Weight: 198.4 lbs
Technical Specifications
Compliance
CSA Listed
Suitable for wet locations
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Construction
Shaft
46,000 p.s.i. minimum yield.
Hand Holes
Reinforced with grounding lug and removable cover
Base Plates
36,000 p.s.i. minimum yield.
Shipping Protection
All poles are shipped in individual corrugated cartons to prevent finish damage
Color
Black powder coating
Height
25 ft
Weight
168 lbs
Gauge
11
Wall Thickness
1/8"
Shaft Size
4"
Hand Hole Dimensions
3" x 5"
Bolt Circle
8 1/2"
Base Dimension
8"
Base Covers & Caps
Base covers & caps are sold separately. Order BCK-S4/B for base covers & caps.
Anchor Bolt
Anchor bolt is sold separately. Order BOLT4/11 for anchor bolt.
Anchor Bolt Templates
WARNING Template must be printed on 11" x 17" sheet for actual size. CHECK SCALE BEFORE USING. Templates shipped with anchor bolts and available online.
Max EPA's/Max Weights
70MPH 4.3 ft/275 lb.
80MPH 1.7 ft/270 lb
80MPH 1.7 ft/270 lb
Other
Terms of Sale
Pole Terms of Sale is available online.
