• Designed for ground mounting
  • Heavy duty TGIC polyester coating
  • Reinforced hand holes with grounding lug and removable cover for easy wiring access
  • Pole caps, base covers & bolts are sold separately
  • Custom manufactured for each application
View Technical Specs

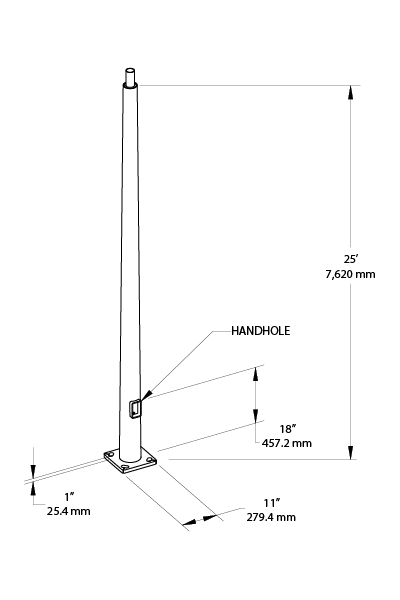

Dimensions
Link to Dimension Drawing

Weight: 200.8 lbs

Technical Specifications
Compliance
CSA Listed
Suitable for wet locations
Performance
Description
Steel pole 7" taper 11 gauge 25 foot welded tenon square base
Construction
Base Shaft Diameter
7"
Hand Holes
Reinforced with grounding lug and removable cover
Base Plates
36,000 p.s.i. minimum yield.
Color
Bronze powder coating
Height
25 ft
Gauge
11
Wall Thickness
1/8"
Anchor Bolt Templates
WARNING Template must be printed on 12" x 18" sheet for actual size. CHECK SCALE BEFORE USING. Templates shipped with anchor bolts and available online.
Max EPA's/Max Weights
70MPH 17.9 ft/550 lb.
80MPH 12.1 ft/500 lb.
90MPH 7.1 ft/500 lb.
100MPH 4.4 ft/500 lb.
110MPH 2.4 ft/450 lb.
120MPH 0.9 ft/400lb
Accessories
Base/Cap: BASE-RT7
Anchor Bolts: BOLT5-8
Other
Terms of Sale
Pole Terms of Sale is available online.

Recently Viewed Products

 This is a link to the product PTR7-11-25WT PTR7-11-25WT
Poles Ptr7 Taped Round Pole 7 Inch 11 Gauge 25 Feet Welded Tenon
 This is a link to the product ALED4T125Y/WS2 ALED4T125Y/WS2
Arealights 15482 Lumens Aled Type Iv 8In Pole Arm 3K 125W 120V-277V Multi-Level Sensor With 20 Feet Lens Bronze
 This is a link to the product HALV18L927-FG1-A HALV18L927-FG1-A
Architectural 1231 Lumens Halv Forward Light 25W 90Cri 2700K Frosted Lens With Grill Style 1 Antique Bronze Finish
 This is a link to the product IVAT5S-130LPA740ZH/WS2/LC IVAT5S-130LPA740ZH/WS2/LC
Ivelot T5S 120W 13500L Pole 4000K 70 Cri Bronze 347-480V Dim Ws2 Lc
 This is a link to the product VXBR100S-3/4 VXBR100S-3/4
Vaporproof Vxbr 100W Wall Bracket 4 Inches Box 3/4 Inch Silver With Glass Globe

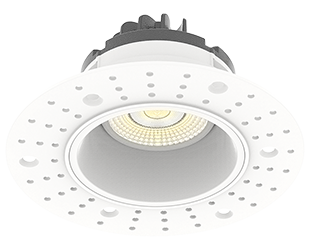

 This is a link to the product RDDLED2R-10D-40YNHC-S-STL RDDLED2R-10D-40YNHC-S-STL
