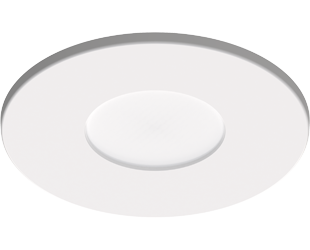

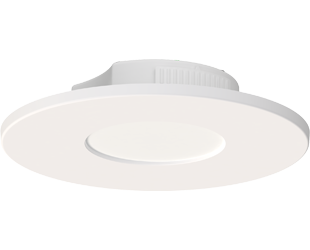

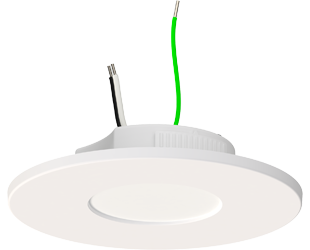

PUCK34
10W 2700/3000/3500/4000/5000K
- Ultra Slim surface mount design with integrated driver recesses into junction box
- Polycarbonate trim with twist-lock design for easy installation and quick trim replacement
- Available Trims in Black, Bronze, and Silver sold separately
- Field adjustable color temperature options from 2700/3000/3500/4000/5000K
- Fits most 4" non-metallic boxes and 4/O metallic boxes simply using two screws
- Dimmable down to 10% on compatible TRIAC/ELV systems
Performance
| Watts | 10W |
| Color Temp | 2700/3000/3500/4000/5000K |
| Lumens | 784-874 lm |
| Efficacy | 80.2-89.6 lm/W |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.09A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 9.7-9.8W |

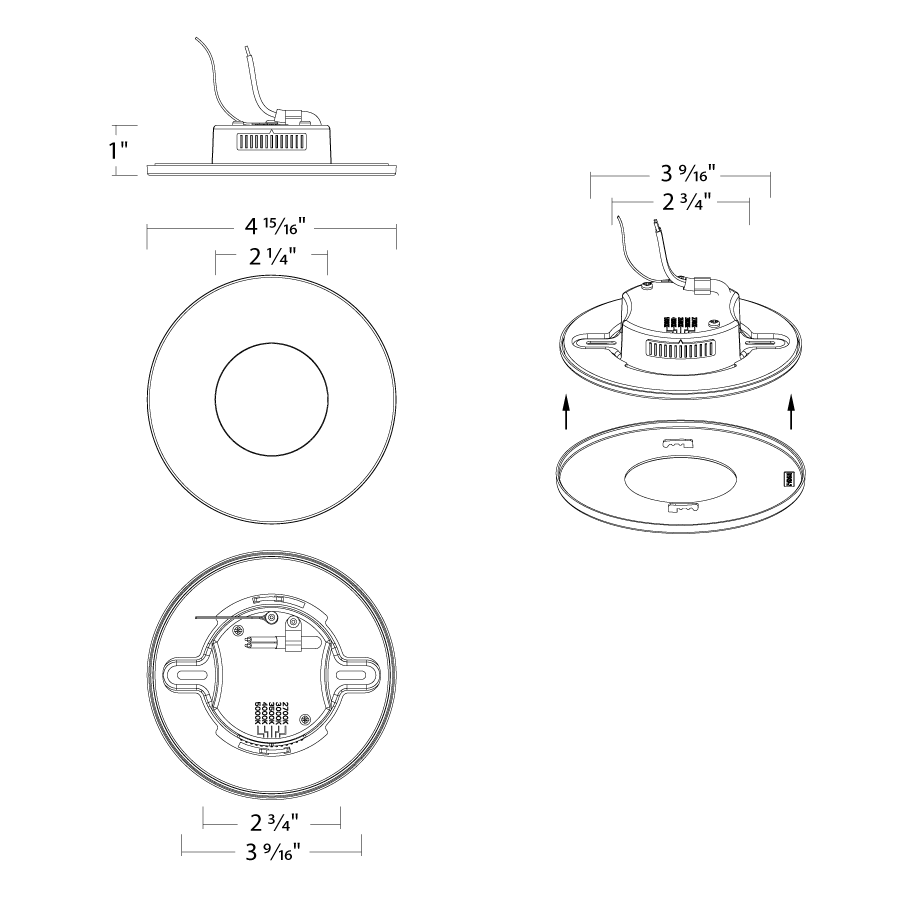

Dimensions
Weight: 0.3 lbs
Technical Specifications
Performance
Product Type
Slim Surface Mount Wafer
Description
Slim wafer design with the flexibility to fit in a 4" recessed housing or 4" J-box. Field selectable color temperatures options 2700K, 3000K, 3500K, 4000K or 5000K at 90CRI.
Wattage Equivalency
60W Incandescent
Input Wattage
10W
Lumens (Nominal)
824lm
Efficacy
83lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current, Class 2 120V 60 Hz; 120V: 100mA
Power Factor
≥0.9
Dimmable
Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
Input Voltage
120V
Operating Temperature
-4°F to 104°F (-20 to 40°C)
Flicker
≤30%
LED Characteristics
Beam Angle
110°±10°
Color Temperature
Default 3000K
Field adjustable via dip switch 2700/3000/3500/4000/5000K
Field adjustable via dip switch 2700/3000/3500/4000/5000K
Color Accuracy (CRI)
90 CRI
R9 Value
High color performance with R9 greater than 50
Color Consistency
4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Mounting

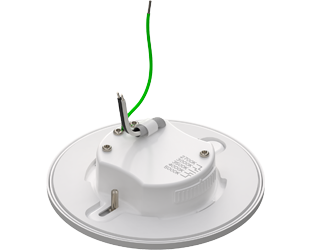

Easy installation in metallic and non-metallic new construction junction boxes. Fixture mounts directly to J-box with two screws using keyhole slots.
Construction
Size
4"
Shape
Round
Finish
White
Enclosure Material
Metal+Plastic
Trim Style
Smooth
Lens Finish
Frosted
Lens
Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications
Air Tight
Housing certified Air Tight as per ASTM-E283
Compliance
Listings
UL Listed
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
IC Rated
Suitable for direct contact with insulation.
Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.
Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.
Energy Star Approved
This product is ENERGY STAR® Version 2.2 Certified
Certification Model Number
DLW1001(PUCK34)
California Title 20 Compliant
No
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6.
California Energy Commission (CEC) Status
Lawful for Sales in California
NEC Compliant
Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Other
Compatible Accessories
PUCK34-TRIM-RD-B
4" PUCK34 round black trim
PUCK34-TRIM-RD-BZ
4" PUCK34 round bronze trim
PUCK34-TRIM-RD-SV
4" PUCK34 round silver trim
4" PUCK34 round black trim
PUCK34-TRIM-RD-BZ
4" PUCK34 round bronze trim
PUCK34-TRIM-RD-SV
4" PUCK34 round silver trim
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
