PWLED

72W 3000/4000/5000K

100,000-hour LED Life

0-10V dimming standard

10-Year, no-compromise warranty

View Technical Specs

View Price & Availability

Performance

Watts	72/41/13W
Color Temp	3000/4000/5000K
Lumens	1769-9694 lm
Efficacy	130.6-152.7 lm/W
Color Accuracy	81-84 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.58A/0.33A/0.12A
208V	0.35A/0.20A/0.07A
240V	0.30A/0.18A/0.06A
277V	0.25A/0.16A/0.05A
Input Watts	12.7-68.7W

EZ-Layout

Create Custom Lighting Layout

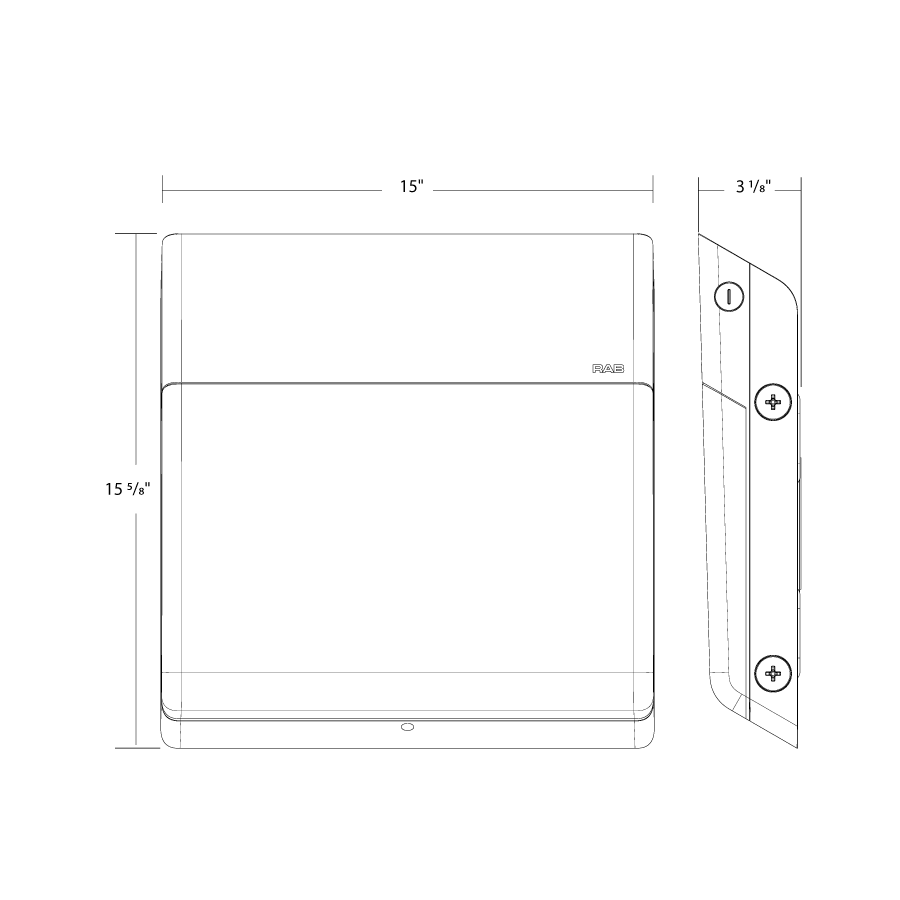

Dimensions

Weight: 9.0 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
72/41/13W (factory default 41W)
Color temperature selectable by 3000K, 4000K and 5000K (factory default 4000K)

Compliance

UL Listed

Suitable for wet locations

ADA Compliant

Meets ADA Requirements for wall-mounted luminaires.

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

LED Characteristics

LEDs

Long-life, high-efficacy, discrete, surface-mount LEDs

Color Consistency

7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.

Electrical

Driver

Constant Current, Class 2, 120-277V, 50/60 Hz:
72W: 120V: 0.58A, 208V: 0.35A, 240V: 0.30A, 277V: 0.25A
41W: 120V: 0.33A, 208V: 0.20A, 240V: 0.18A, 277V: 0.16A
13W: 120V: 0.12A, 208V: 0.07A, 240V: 0.06A, 277V: 0.05A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

3.24% at 120V, 14.9% at 277V

Power Factor

99.6% at 120V, 91.7% at 277V

Surge Protection

L-L: 4 kV; L/N-G: 6 kV

Aux Power Supply

Yes

Dim to Off

Yes

Photocell

Integrated photocell included with on/off switch

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Construction

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Ambient Temperature

Max Power Temp Rating: 104°F (40°C )
Middle Power Temp Rating: 47°C (117°F)
Low Power Temp Rating: 54°C (129°F)

Housing

Die-cast aluminum

Lens

Prismatic, heat-resistant borosilicate glass

Reflector

Specular aluminum

Gaskets

High-temperature silicone

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Installation

Mounting

Wall mount

Other

10-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of ten (10) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
