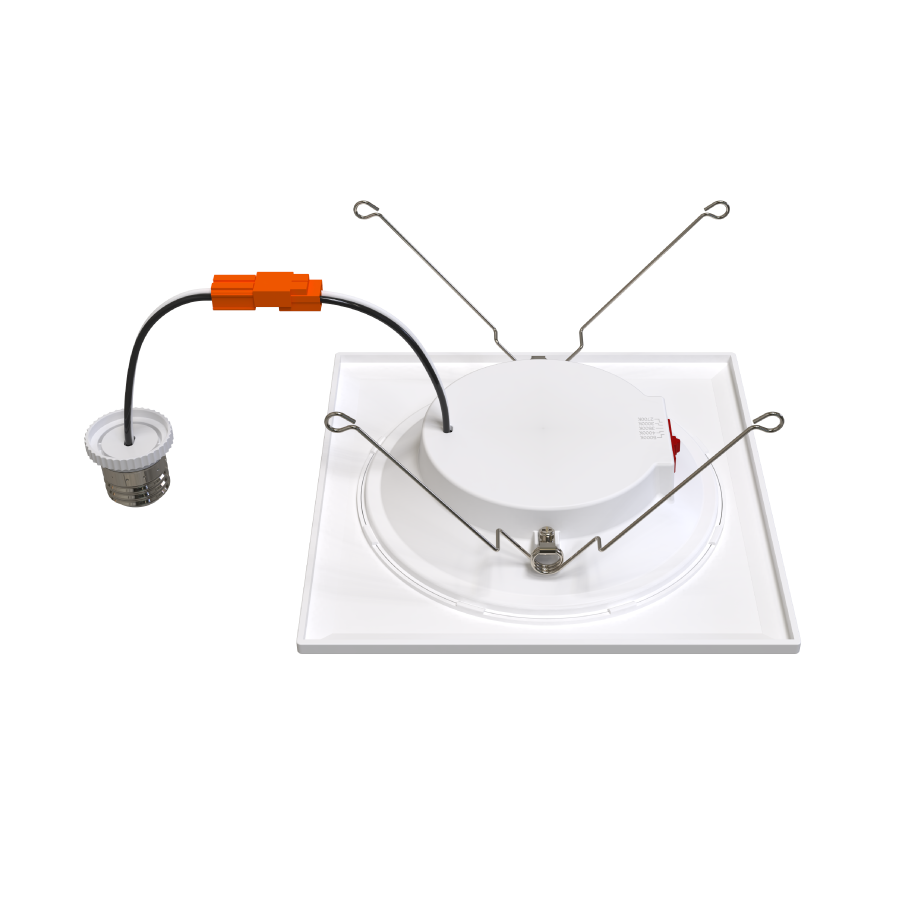

R34S-6
- 4" & 5/6" Recessed LED trims are compatible with most recessed housings
- Lumen outputs: 4" - up to 650 lumens, 6" up to 1,050 lumens
- 5 Color temperature selectable 2700K, 3000K, 3500K, 4000K, & 5000K
- Constructed from UV resistant polycarbonate available in a smooth splay reflector or baffled trim with a smooth flat frosted polycarbonate lens
- Available in Painted White or Black finish.
- Dimmable down to 10% with compatible TRIAC/ELV dimmers, see dimmer compatibility list
- 5-year warranty, 50,000 hours lifespan, Title 20 compliant, wet location rated
Performance
| Watts | 9W |
| Color Temp | 2700/3000/3500/4000/5000K |
| Lumens | 900 lm |
| Efficacy | 100 |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.09A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 9W |
Dimensions
Weight: 0.6 lbs
Technical Specifications
Performance
Product Type
LED Trim - Polycarbonate
Description
Available in 4" and 6" models with 5 field-adjustable color temperatures. Offered with smooth or baffle trims. Ideal for applications with tighter budgets.
Wattage Equivalency
75W Incandescent
Input Wattage
6W
Lumens
900lm
Measured Lumens
2700K: 932lm
3000K: 979lm
3500K: 1044lm
4000K: 1044lm
5000K: 1014lm
3000K: 979lm
3500K: 1044lm
4000K: 1044lm
5000K: 1014lm
Efficacy
100lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current
Power Factor
≥0.7
Dimmable
Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
Input Voltage
120V
Operating Frequency
60 Hz
Input Current @ 120V (mA)
90mA
Operating Temperature
-4°F to 104°F (-20 to 40°C)
Flicker
≤30%
LED Characteristics
Beam Angle
90°
Color Temperature
Field-adjustable via dip switch 2700/3000/3500/4000/5000K
Color Accuracy (CRI)
≥90
R9 Value
High color performance with R9 greater than 50
Color Consistency
<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Mounting
Recessed can housing
Construction
Size
6"
Shape
Square
Finish
White
Material
Constructed from robust UV resistant polycarbonate
Trim Style
Smooth Splay
Lens Finish
Frosted
Lens
Smooth flat profile polycarbonate lens diffuser
Compliance
Listings
UL Classified, UL Recognized
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
IC Rated
Depends on recessed housing used
Air Tight
No
Energy Star Approved
This product is ENERGY STAR® Certified.
Certification Model Number
DLR0159(R34S-6)
California Title 20 Compliant
Can be used to conform with the requirements of California Title 20
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
Compatible Accessories
NDCANIC6R
6" Recessed housing, new construction
RDCANIC6R
6" Recessed housing, remodeler
6" Recessed housing, new construction
RDCANIC6R
6" Recessed housing, remodeler
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
