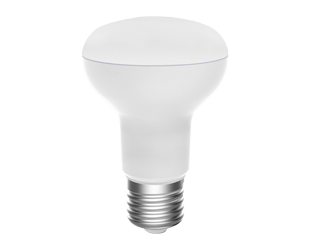

R20-11-E26-840-DIM

Spec Sheet IES File FCC Caution Spec Sheet EZ Layout

R20-11-E26-840-DIM

Energy efficient replacement for incandescent and halogen reflector lamps

Constructed from durable plastic which lowers risk of breakage

Rated for use in enclosed and open fixtures in dry or damp locations

Frosted lens produces smooth diffuse light

Longer lifespan compared to legacy equivalents minimizes replacement and maintenance costs

ENERGY STAR Compliant

Dimmable with common dimmer types (see Dimmer Compatibility List)

View Technical Specs

View Price & Availability

Performance

Watts	11W
Color Temp	4000K
Lumens	940 lm
Efficacy	85.5
Color Accuracy	80 CRI
L70 Lifespan	25,000 Hours

Input Voltage	120V
Power Factor	>0.9
Flicker	N/A
THDi	N/A

EZ-Layout

Create Custom Lighting Layout

Dimensions

Technical Specifications

Performance

Product Type

Reflector

Input Wattage

11W

Lumens

940lm

Efficacy

85.5lm/W

L70 Lifespan

25,000-Hour LED lifespan based on IES LM-70 results

Wattage Equivalency

75W Halogen

Compliance

UL Listed

Suitable for damp locations

Enclosed Fixtures

Suitable for use in enclosed fixtures

LED Characteristics

Color Temperature

4000K

Color Accuracy (CRI)

>80 CRI

Beam Angle

110°

Electrical

Power Factor

>0.9

Dimmable

Yes

Operating Temperature

-20°C to 40°C

Input Voltage

120V

Operating Frequency

60 Hz

Construction

Bulb Shape

R20

Enclosure Material

Plastic

Installation

Base Type

E26 Edison

Other

3-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
