R20-5-922/30-WGD

Spec Sheet IES File Dimmer Compatibility List LM79 FCC Caution Spec Sheet EZ Layout

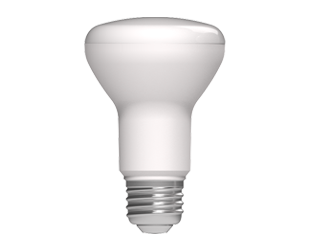

R20-5-922/30-WGD

Produces rich and vibrant colors >90CRI

Energy efficient replacement for incandescent and halogen Reflector lamps

Constructed from durable plastic which lowers risk of breakage

Rated for use in enclosed and open fixtures in dry or damp locations

Frosted lens produces smooth diffuse light

Longer lifespan compared to legacy equivalents minimizes replacement and maintenance costs

ENERGY STAR Compliant, Title 20 Compliant

Smooth warm to dim transition between 2200K to 3000K color temperatures

Uniform dimming down to 10% (See Dimmer Compatibility List)

View Technical Specs

View Price & Availability

Performance

Watts	5W
Color Temp	2200/3000K
Lumens	500 lm
Efficacy	90.9
Color Accuracy	90 CRI
L70 Lifespan	15,000 Hours

Input Voltage	120V
Power Factor	0.7
Flicker	N/A
THDi	62.9

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 0.1 lbs

Technical Specifications

Performance

Product Type

Reflector

Input Wattage

5.5W

Lumens

500lm

Efficacy

90.9lm/W

L70 Lifespan

15,000-Hour LED lifespan based on IES LM-70 results

Wattage Equivalency

40W Halogen

Compliance

UL Listed

Suitable for damp locations

Enclosed Fixtures

Suitable for use in enclosed fixtures

LED Characteristics

Color Temperature

2200/3000K

Color Accuracy (CRI)

>90 CRI

Beam Angle

110°

Electrical

THD

62.90%

Power Factor

0.7

Dimmable

Yes

Operating Temperature

-20°C to 45°C (-4°F to 113°F)

Input Voltage

120V

Operating Frequency

60 Hz

Construction

Bulb Shape

R20

Endcap Material

Polycarbonate

Enclosure Material

Plastic

Installation

Base Type

E26 Edison

Other

3-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
