• Field-adjustable color temperature — 2700/3000/3500/4000/5000K at 90 CRI, set at install

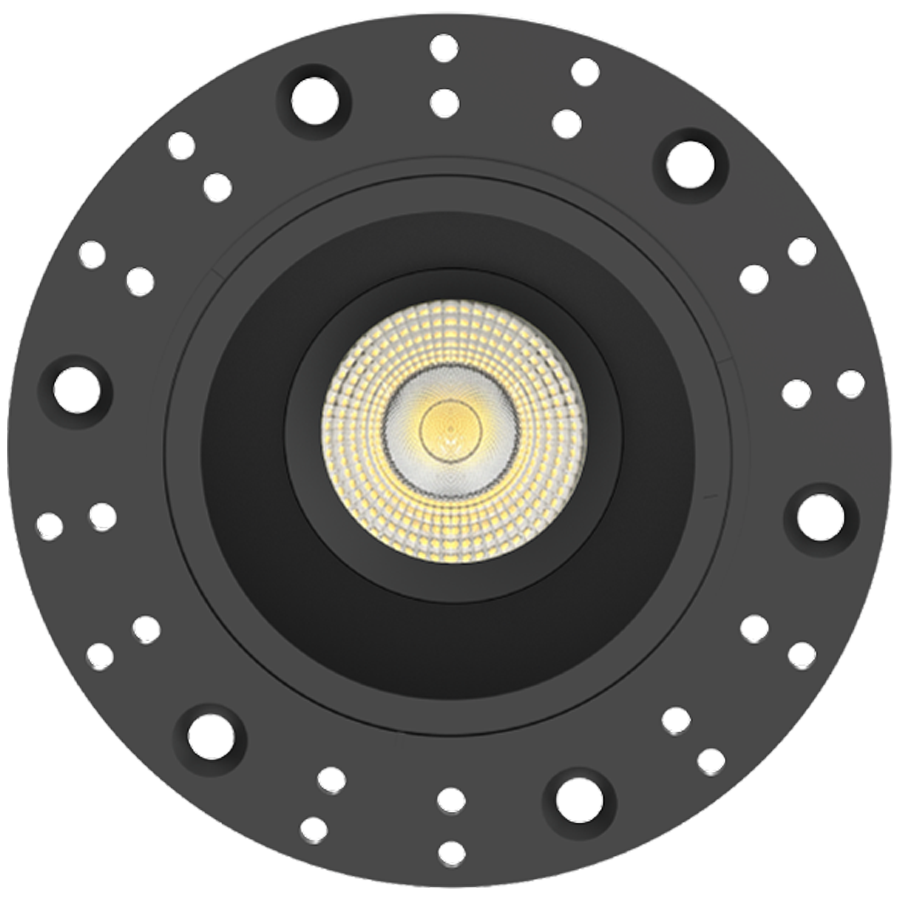

  • Trimless aperture — plaster-in for a seamless ceiling with no visible flange
  • Deep regress and recessed gimbal versions; recessed gimbal tilts 30°
  • Remote driver — no housing, no can, no J-box
  • New construction or retrofit applications
View Technical Specs
Performance
Watts 9W
Color Temp
Lumens 600 lm
Efficacy 67
Color Accuracy
L70 Lifespan
Type Constant Current
120V
208V
240V
277V
Input Watts 9W
Dimensions
Link to Dimension Drawing

Weight: 0.9 lbs

Technical Specifications
Performance
Product Type

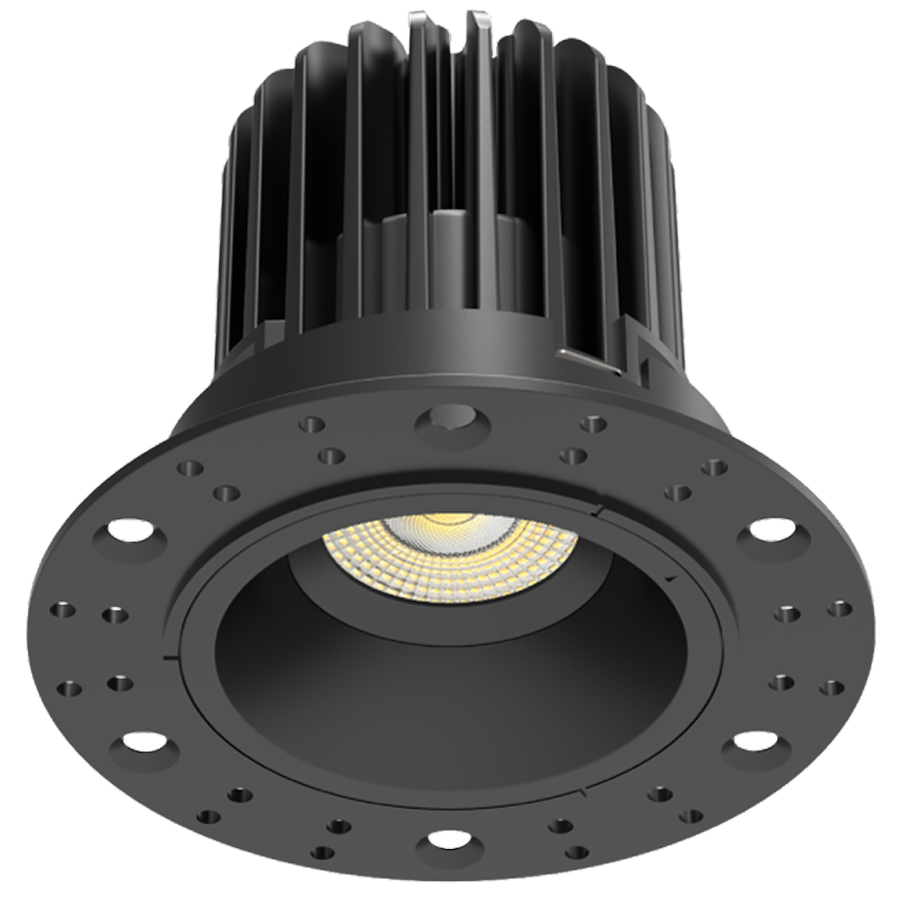

Trimless canless downlight with remote driver junction box
Description
Trimless downlights make any space feel high-end. Great for new construction and retrofit applications. Available in 2", 3" & 4" small apertures while still providing great lumen output.
Wattage Equivalency
60W Incandescent
Input Wattage
9W
Lumens (Nominal)
600lm
Efficacy
67lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current, Class 2
THD
≤25%
Power Factor
≥0.9
Dimmable
Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
Input Voltage
120V
Operating Frequency
60 Hz
Input Current @ 120V (mA)
77mA
Operating Temperature
-13°F to 104°F (-25°C to 40°C)
Flicker
≤30%
Emergency Operation
Not for use in emergency.
LED Characteristics
Beam Angle
38°±5°
Color Temperature
Field adjustable via dip switch 2700/3000/3500/4000/5000K
Color Accuracy (CRI)
>90 CRI
R9 Value
High color performance with R9 greater than 50
Color Consistency
<4-step (2700K & 5000K); <7-step (3000/3500/4000K) MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Installation Orientation
Universal Installation
Remote Driver/Junction Box
Die-formed metal driver & junction box with captive hinged junction box cover. Listed for Maximum of (2) 12AWG through branch circuit conductor suitable for 90°C permitted in box. Easy to wire in 1in/1out (plus ground) applications. (4) conduit pry-outs. (3) quick snap-in connectors for quick and reliable line voltage connections. Integral mounting facilitates direct mounting to building structure or mounting frame.
Mounting
Twist & Lock LED module snaps into fixture trim from below the ceiling
Construction
Size
2"
Shape
Round
Finish
Black
Enclosure Material
Die-cast heatsink and metal trim
Trim Style
Trimless Mud in Trim
Lens Finish
Clear
Lens
Polycarbonate lens distributes light evenly and smoothly for general lighting applications
Compliance
ETL Listed
This product has been tested by Intertek and found in compliance with accepted national standards.
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
IC Rated
Suitable for direct contact with insulation. Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.
Air Tight
Housing certified Air Tight as per ASTM E283
Energy Star Approved
No
DLC Listed
No. There is no product category on the Design Lights Consortium (DLC) Qualified Products List for this product to qualify under.
Certification Model Number
DLR0142(R2TLB)
California Title 20 Compliant
No, this product does not meet California Title 20 requirements.
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6.
California Energy Commission (CEC) Status
Lawful for Sales in California
NEC Compliant
Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
Compatible Accessories
EXTCBL-10-3P, EXTCBL-20-3P, EXTCBL-6-3P; DRI-21-EMGR-DC-D10 — Emergency driver T20, 100-277V 21W-300W 0-10V dim, UPC 192552028264
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
