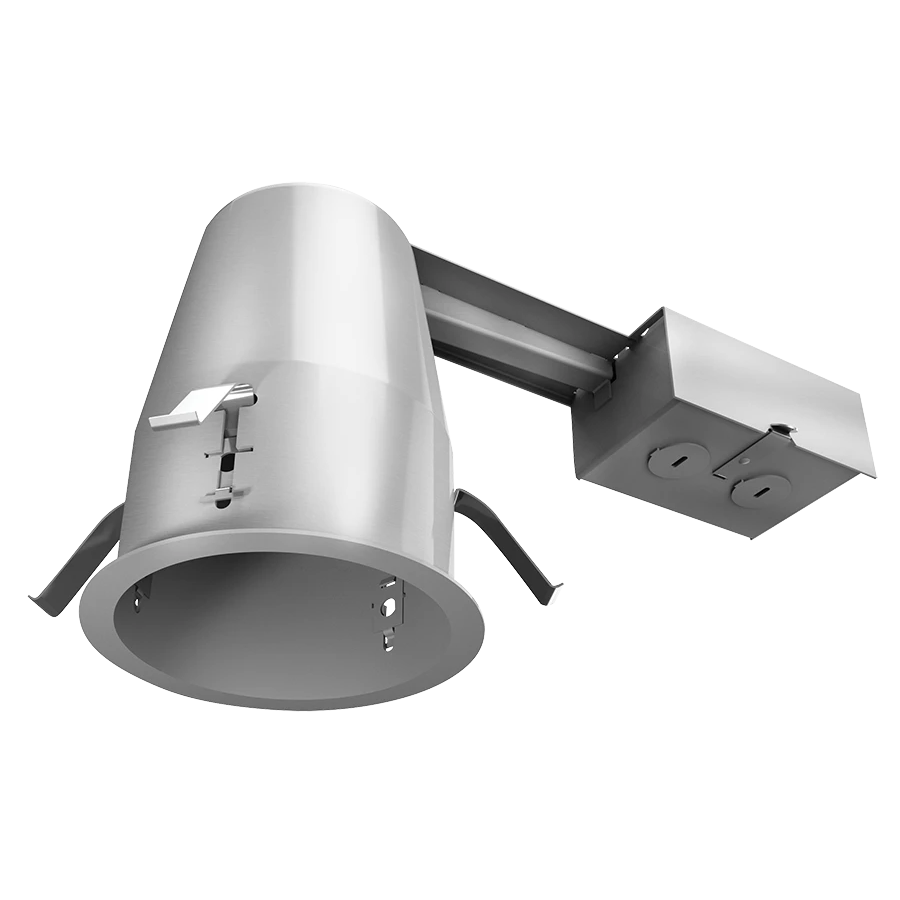

RDCANIC4R
RDCANIC4R
- IC rated for direct contact with insulation
- Quick connect provided for electrical connection to the LED Trim
- Airtight in accordance to ASTM E283
- Damp Location (Wet location when used with compatible luminaire)
- 24-1/2" bar hangers included with captive nails and alignment foot

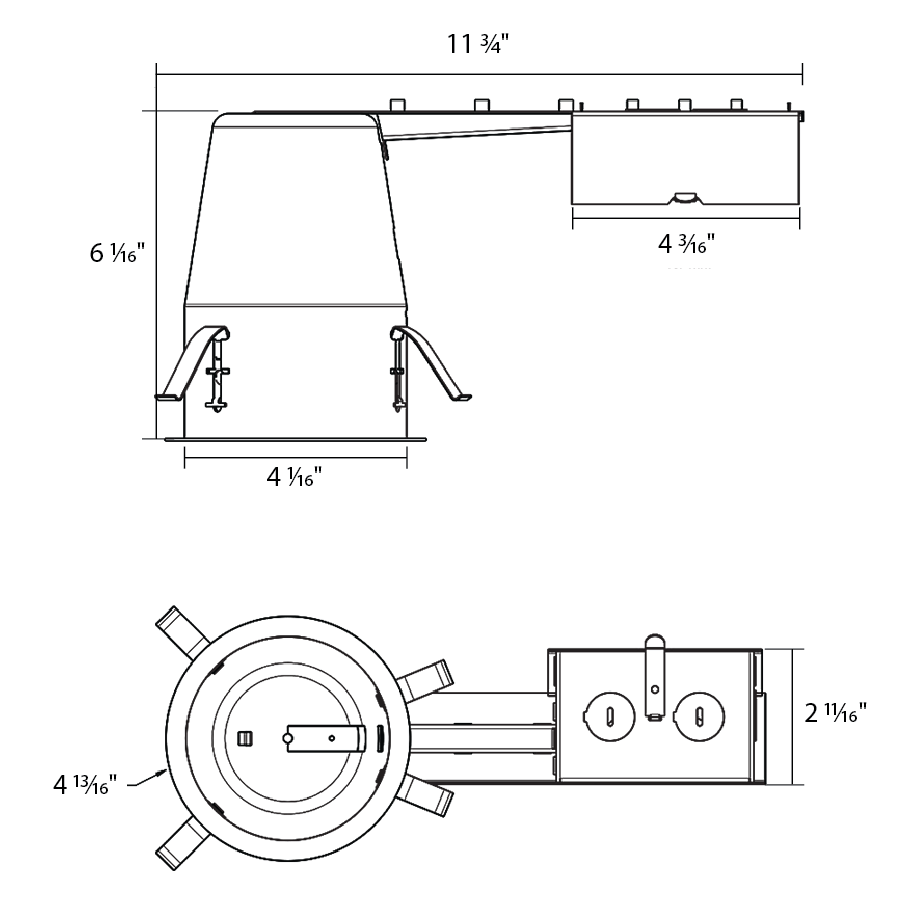

Dimensions
Weight: 1.1 lbs
Technical Specifications
Performance
Product Type
LED Remodel Housings
Description
Standard IC Rated housings suitable for use with LED Recessed Retrofits
Electrical
Input Voltage
120V
Operating Temperature
122°F (50°C) max.
Construction
Mounting
Remodel housing
Size
4"
Shape
Round
Housing
0.040 aluminum housing with riveted cap adjusts for ceiling thicknesses from 5/8" to 1-1/4"
Nailer Bars
Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on frame. Hanger bars have T-Bar slot and alignment feet. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. "L" Shaped bar hanger foot to align to bottom of construction joist. A T-Bar notch allows easy installation in a suspended ceiling.
Junction Box
Prewired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2" trade size knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box.
Romex Strain Relief
Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
Installation
Base Type
Quick Connector
Compliance
Listings
UL Listed
Environment
Suitable for use indoors in dry and damp environments.
IC Rated
Suitable for direct contact with insulation. Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.
Air Tight
Housing certified Air Tight as per ASTM E283
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6.
California Energy Commission (CEC) Status
Lawful for Sales in California
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
