R4R8940120WS

Spec Sheet IES File Downlight Accessory Compatibility List Compatibility List Photometrics Report Energy Star Instructions Spec Sheet EZ Layout

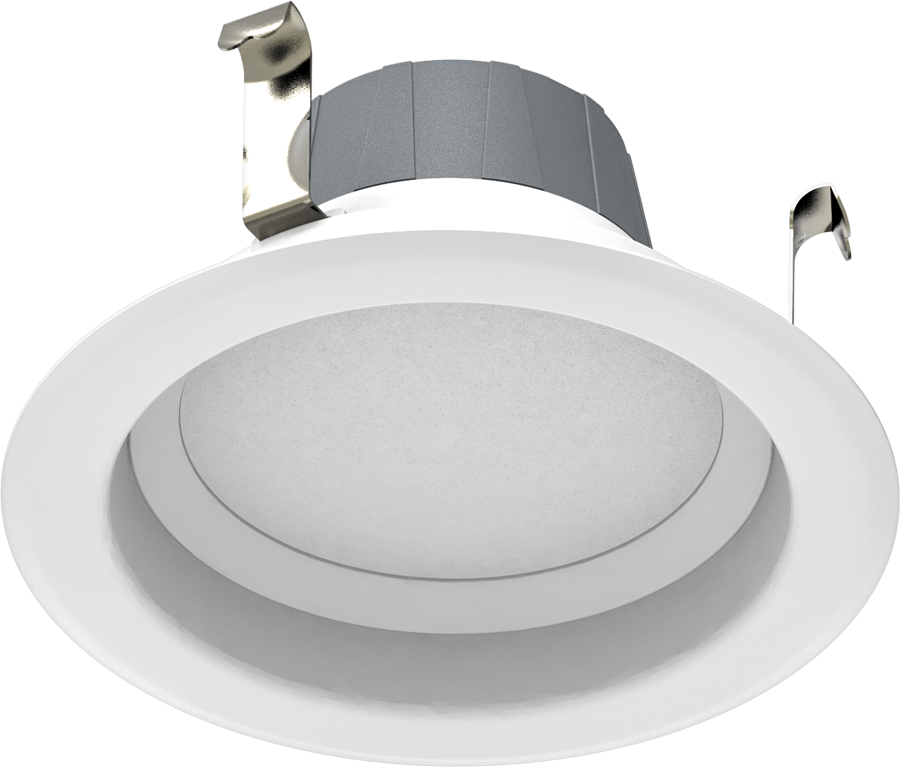

R4R8940120WS

High Performance LEDS up to 100 lm/w

Use to replace up to 100W traditional light sources

Durable metal construction: dent and scratch resistant

UL wet location rated

Compatible with most standard recessed housings

Dimmable down to 5% on compatible dimmers

Available in Round 4" 850lm and 6" 850lm, 1050lm and 1400lm

Available in 5 color temperatures: 2700K, 3000K, 3500K, 4000K, & 5000K

Available in a smooth and baffle trim option

Color designer trims as optional accessories available

5-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	8W
Color Temp	4000K (Neutral)
Lumens	783 lm
Efficacy	87.5
Color Accuracy	92 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	0.07A
208V
240V
277V
Input Watts	7.5W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 0.5 lbs

Technical Specifications

Compliance

UL Classified

Suitable for wet locations

Energy Star Approved

ENERGY STAR® Version 2.2 Certified

Certification Model Number

DLR0055

Energy Star ID

2350082

NEC Compliant

Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C5).

California Title 24

Can be used to conform with the requirements of California Title 24 Part 6.

California Title 20 Compliant

Compliant LED Product

Electrical

Dimming Driver

TRIAC compatible dimmer with dimming as low as 5%. See dimmer compatibility guide here.

THD

<20%

Power Factor

≥0.9

THDi

Produces less than 20% THD

≥0.9

Input Voltage

120V

Operating Frequency (Hz)

60Hz

Performance

Lifespan

50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Wattage Equivalency

65W Incandescent

Construction

Shape

Round

Trim Style

Smooth Trim

Housing

Constructed from durable steel sheet metal

Cold Weather Starting

The minimum starting temperature is -30°C (-22°F)

Maximum Ambient Temperature

Suitable for use in up to 40°C (104°F)

Lens

Frosted polycarbonate diffusion lens. Regressed lens. Constructed from durable sheet metal construction.

Green Technology

Mercury and UV free. RoHS-compliant components.

Socket Adapter

Edison 26 Medium Base Socket adapter included in box

Finish

Matte White

LED Characteristics

Beam Angle

95°±10°

LEDs

Long-life, high-efficacy, surface-mount LEDs

R9 Value

High color performance with R9 greater than or equal to 50

Flicker

Silent and flicker free operations of less than 30%

Installation

Mounting

Easy installation with friction clips (4") and torsion springs (5"/6")

Other

Compatibility

Compatible with most common 4" recessed housings

Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
