R6R89FA120WB

Spec Sheet IES File Compatibility List Photometrics Report Energy Star Instructions Family Spec Sheet Spec Sheet EZ Layout

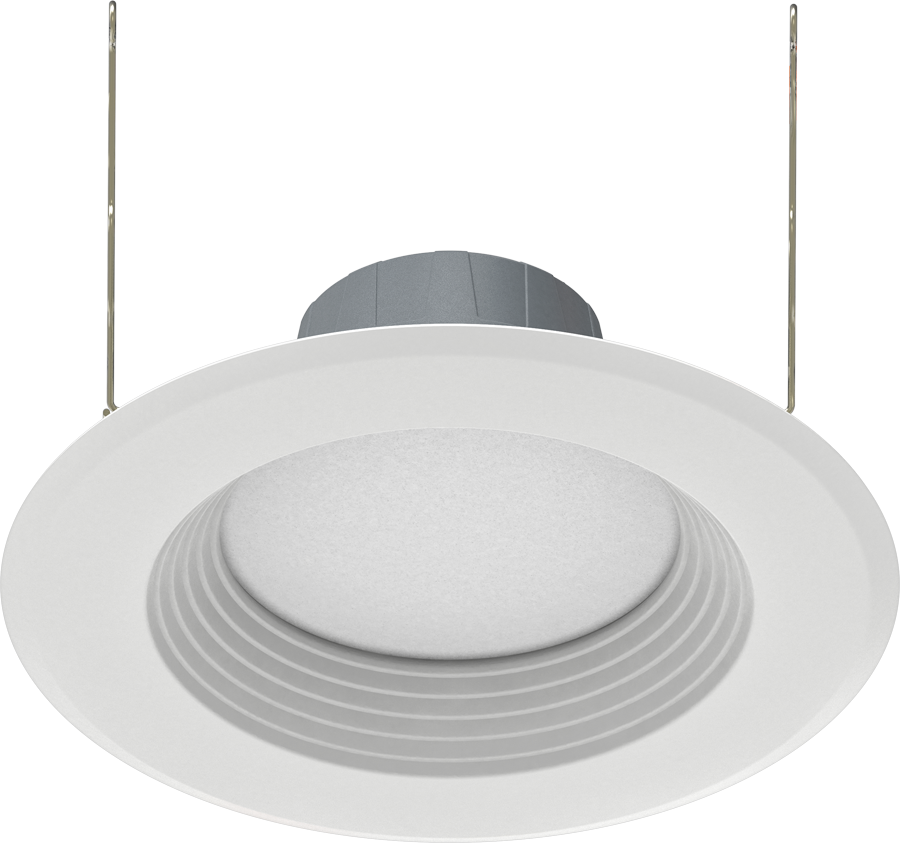

R6R89FA120WB

8W 2700/3000/3500/4000/5000K

4" & 5/6" Recessed LED trims are compatible with most recessed housings

Lumen outputs: 4" - 750 & 1,100 lumens, 6" - 775, 1,000, 1,300 lumens

Constructed from die-cast aluminum available in a smooth splay reflector or baffled trim with a smooth flat frosted polycarbonate lens

Available in Painted White or Black finish. Optional color trim overlays sold separately

Dimmable down to 10% with compatible TRIAC/ELV dimmers, see dimmer compatibility list

5-year warranty, 50,000 hours lifespan, Title 24 JA8 and Title 20 compliant, wet location rated

View Technical Specs

View Price & Availability

Performance

Watts	8W
Color Temp	2700/3000/3500/4000/5000K
Lumens	770 lm
Efficacy	96
Color Accuracy	90 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	0.13A
208V
240V
277V
Input Watts	8W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 0.8 lbs

Technical Specifications

Performance

Product Type

LED Trim - Metal

Description

Contractor-grade retrofit downlights offered with up to 5 field selectable color temperatures in 1 model. Options available with a smooth or baffle trim.

Wattage Equivalency

65W Incandescent

Input Wattage

Lumens

770lm

Measured Lumens

2700K: 748lm
3000K: 762lm
3500K: 776lm
4000K: 773lm
5000K: 759lm

Efficacy

96lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current

THD

≤20%

Power Factor

≥0.9

Dimmable

Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.

Input Voltage

120V

Operating Frequency

60 Hz

Input Current @ 120V (mA)

70mA

Operating Temperature

-22°F to 104°F (-30°C to 40°C)

Flicker

≤30%

LED Characteristics

Beam Angle

95°±10°

Color Temperature

Field-adjustable via dip switch 2700/3000/3500/4000/5000K

Color Accuracy (CRI)

≥90

R9 Value

High color performance with R9 greater than 50

Color Consistency

<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Mounting

Recessed with housing

Construction

Size

Shape

Round

Finish

White

Material

Constructed from spun aluminum

Trim Style

Smooth Splay

Lens Finish

Frosted

Lens

Smooth flat profile polycarbonate lens diffuser

Compliance

Listings

UL Classified, UL Recognized

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

IC Rated

Depends on recessed housing used

Air Tight

Energy Star Approved

This product is ENERGY STAR® Certified.

Certification Model Number

DLR0122(R6R89FA120WS)

California Title 20 Compliant

Can be used to conform with the requirements of California Title 20

California Title 24 JA8 Compliant

Can be used to conform with the requirements of California Title 24 Part 6

California Energy Commission (CEC) Status

Lawful for Sales in California

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

Compatible Accessories

NDCANIC6R
6" Recessed housing, new construction

RDCANIC6R
6" Recessed housing, remodeler

DLTRIM/R6RS-BN
6" Color trim round smooth brushed nickel

DLTRIM/R6RS-BRZ
6" Color trim round smooth bronze

DLTRIM/R6RS-B
6" Color trim round smooth black

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
