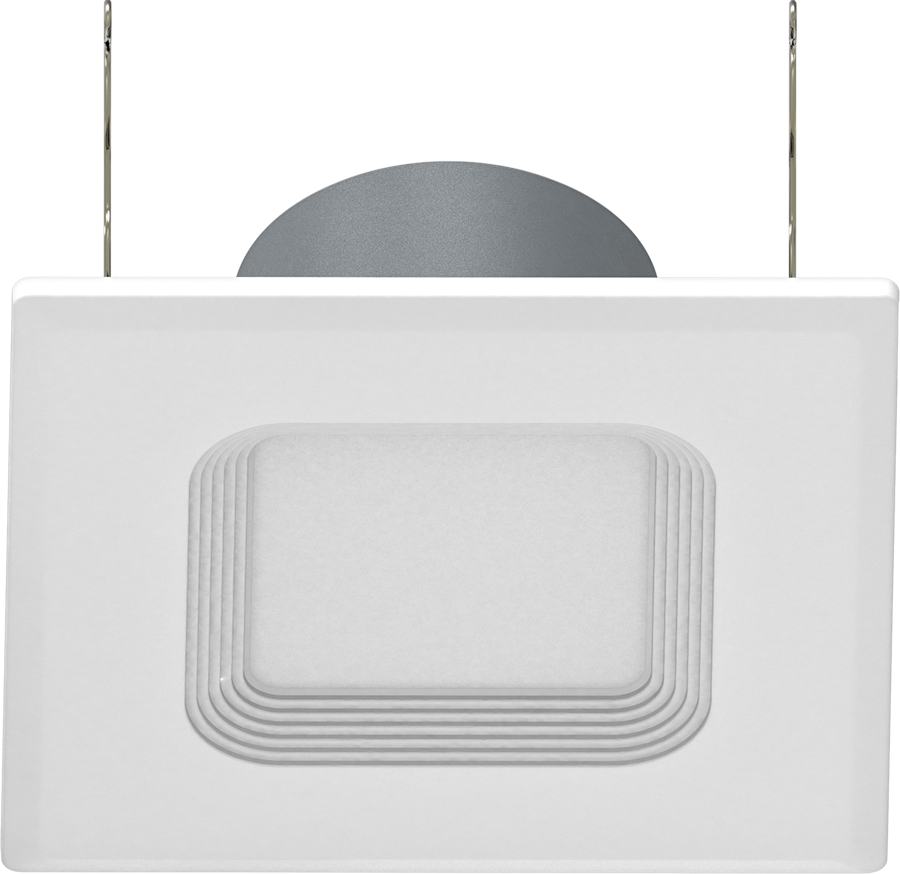

R6S10830120WB

High Performance LEDS up to 100 lm/w

Use to replace up to 85W traditional light sources

Robust plastic construction

UL wet location rated

Compatible with most standard recessed housings

Dimmable down to 5% on compatible dimmers

Available in Square 4" 750lm and 6" 1050lm

Available in 4 color temperatures: 2700K, 3000K, 3500K, 4000K

Available in a baffle trim option

Color designer trims as optional accessories available

5-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	10W
Color Temp	3000K (Warm)
Lumens	1,081 lm
Efficacy	100
Color Accuracy	80 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	0.09A
208V
240V
277V
Input Watts	10W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 1.0 lbs

Technical Specifications

Compliance

UL Classified

Suitable for wet locations

Energy Star Approved

ENERGY STAR® Version 2.2 Certified

Certification Model Number

DLR0075

Energy Star ID

2349999

NEC Compliant

Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C5).

Electrical

Dimming Driver

TRIAC compatible dimmer with dimming as low as 5%. See dimmer compatibility guide here.

THD

<20%

Power Factor

≥0.9

THDi

Produces less than 20% THD

≥0.9

Input Voltage

120V

Operating Frequency (Hz)

60Hz

Performance

Lifespan

50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Wattage Equivalency

85W Incandescent

Construction

Shape

Square

Trim Style

Baffle

Housing

Constructed from durable steel sheet metal

Cold Weather Starting

The minimum starting temperature is -30°C (-22°F)

Maximum Ambient Temperature

Suitable for use in up to 40°C (104°F)

Lens

Frosted polycarbonate diffusion lens. Regressed lens. Constructed from robust polycarbonate that is dent and scratch resistant.

Green Technology

Mercury and UV free. RoHS-compliant components.

Mounting

Easy installation with friction clips (4") and torsion springs (5"/6")

Socket Adapter

Edison 26 Medium Base Socket adapter included in box

Compatibility

Compatible with most 5" and 6" recessed housings

Finish

Matte White

Optical

Beam Angle

110°±10°

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Flicker

Silent and flicker free operations of less than 30%

Other

Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Buy American Act Compliance

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
