RA4R89FA120WS

Spec Sheet IES File Dimmer Compatibility List Downlight Accessory Compatibility List Photometrics Report Instructions Spec Sheet EZ Layout

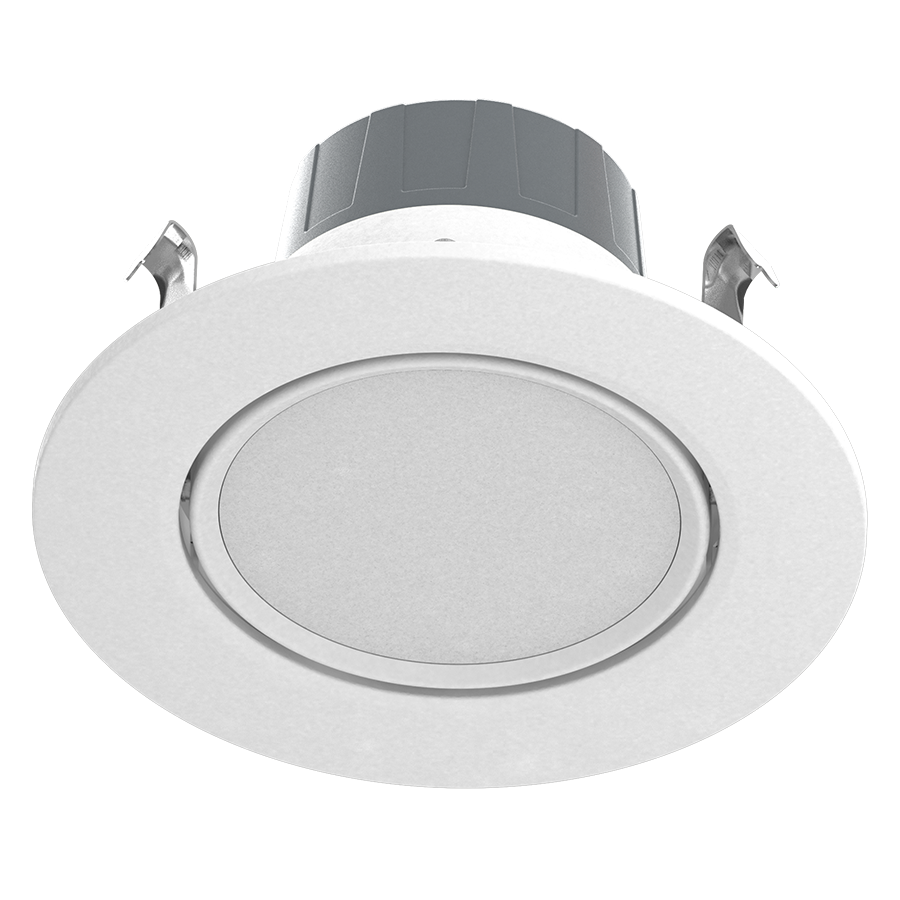

RA4R89FA120WS

Use to replace traditional halogen and incandescent light sources

Durable metal construction: dent and scratch resistant

5 Color temperature selectable 2700K, 3000K, 3500K, 4000K, & 5000K

Compatible with most standard recessed housings

Color trims sold separately

View Technical Specs

View Price & Availability

Performance

Watts	8W
Color Temp	2700K/3000K/3500K/4000K/5000K
Lumens	700 lm
Efficacy	88
Color Accuracy	90 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	0.07A
208V
240V
277V
Input Watts	8W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 0.4 lbs

Technical Specifications

Performance

Product Type

Recessed Retrofit

Description

Contractor-grade adjustable gimbal retrofit downlights offered with up to 5 field selectable color temperatures in 1 model.

Wattage Equivalency

65W Incandescent

Input Wattage

Lumens

2700K @ 719lm; 3000K @ 731lm; 3500K @ 746lm; 4000K @ 752lm; 5000K @ 768lm

Efficacy

2700K @ 97lm/W; 3000K @ 99lm/W; 3500K @ 103lm/W; 4000K @ 104lm/W; 5000K @ 103lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current, 60 Hz, 120V, 120V: 0.07 A

THD

≤20%

Power Factor

≥0.9

Dimmable

Yes, dims down to 10% on compatible TRIAC/ELV system.
See Dimmer Compatibility List.

Input Voltage

120V

Operating Frequency

60 Hz

Input Current @ 120V (mA)

65mA

Operating Temperature

-22°F to 104°F (-30°C to 40°C)

LED Characteristics

Color Temperature

Field adjustable via dip switch 2700K/3000K/3500K/4000K/5000K

Color Accuracy (CRI)

>90 CRI

R9 Value

High color performance with R9 greater than or equal to 50

Color Consistency

<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Mounting

Recessed Housing

Construction

Size

Shape

Round

Finish

White

Enclosure Material

Metal

Trim Style

Smooth

Lens

Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications

Cut Out Template Size

4 5/16"

Compliance

Listings

UL Recognized, UL Classified

IC Rated

Air Tight

Energy Star Approved

This product is ENERGY STAR® Version 2.2 Certified

Energy Star ID

2369206

DLC Listed

Certification Model Number

DLG0010(RA4R89FA120WS)

T20 Compliant

Can be used to conform with the requirements of California Title 20

California Title 24 JA8 Compliant

Can be used to conform with the requirements of California Title 24 Part 6

California Energy Commission (CEC) Status

Lawful for Sales in California

NEC Compliant

Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15B of the FCC Rules

Other

Accessories

DRI-25-EMGR-DC
Battery Backup Driver
DRI-21-EMGR-DC-D10
Battery Backup Driver T20

Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Note

All values are typical (tolerance +/- 10%)

Buy American Act Compliance

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
