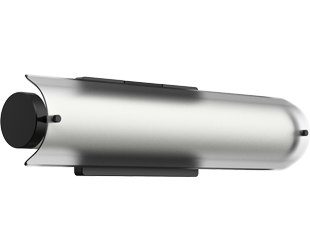

RAIL175/480

Spec Sheet IES File LM79 Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

RAIL175/480

100,000-Hour LED lifespan

DLC Premium Listed

0-10V dimming, standard

5-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	175W
Color Temp	5000K (Cool)
Lumens	26,859 lm
Efficacy	151.4
Color Accuracy	83 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V
208V
240V
277V
Input Watts	177.4W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 11.4 lbs

Technical Specifications

Compliance

UL Listed

Suitable for damp locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Wattage Equivalency

Equivalent to 400W Metal Halide

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Consistency

3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED Color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Electrical

Driver

Constant Current, Class 2, 480V, 50/60Hz, 480V: 0.36A

THD

10.08% at 480V

Power Factor

92.7% at 480V

Surge Protection

6 kV

Construction

Cold Weather Starting

The minimum starting temperature is -4°F (-20°C)

Maximum Ambient Temperature

Suitable for use in up to 113°F (45°C)

Housing

Extruded aluminum

Lens

Polycarbonate lens

Reflector

Polyethylene Terephthalate (PET)

Installation

Mounting

V hooks (chain by others)

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
