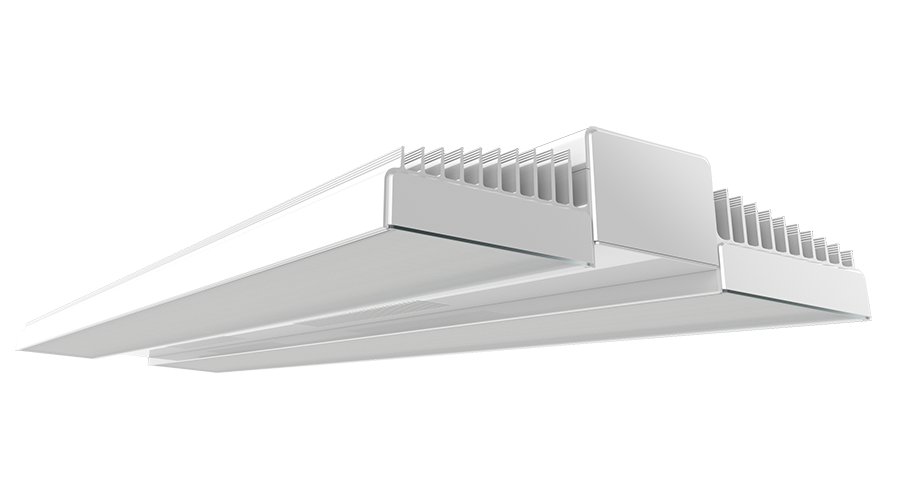

RAIL400

Spec Sheet IES File LM79 Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

RAIL400

100,000-Hour LED lifespan

DLC Premium Listed

0-10V dimming, standard

5-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	400W
Color Temp	5000K (Cool)
Lumens	54,007 lm
Efficacy	140.26
Color Accuracy	82.7 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	3.42A
208V	1.98A
240V	1.71A
277V	1.48A
Input Watts	385W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 22.4 lbs

Technical Specifications

Compliance

UL Listed

Suitable for damp locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC Product Code: S-B6PLJ4

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Wattage Equivalency

Equivalent to 1,000W Metal Halide

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Consistency

3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED Color temperature is warrantied to shi ft no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Electrical

Driver

Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 3.42A, 208V: 1.98A, 240V: 1.71A, 277V 1.48A

THD

2.09% at 120V, 9.18% at 277V

Power Factor

99.87% at 120V, 96.2% at 277V

Surge Protection

6 kV

Construction

Cold Weather Starting

The minimum starting temperature is -4°F (-20°C)

Maximum Ambient Temperature

Suitable for use in up to 113°F (45°C)

Housing

Extruded aluminum

Lens

Polycarbonate lens

Reflector

Polyethylene Terephthalate (PET)

Installation

Mounting

V hooks (chain by others)

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
