SR8/PIR/E

Spec Sheet IES File Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

SR8/PIR/E

50,000-Hour LED lifespan

120-277V standard

0-10V dimming, standard

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	60/50/40W
Color Temp	3500K/4000K/5000K
Lumens	5,854-8,986 lm
Efficacy	140.2-158.5 lm/W
Color Accuracy	84-85 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	0.50A/0.41A/0.33A
208V	0.29A/0.24A/0.19A
240V	0.25A/0.21A/0.17A
277V	0.22A/0.18A/0.14A
Input Watts	39.9-60.7W

EZ-Layout

Create Custom Lighting Layout

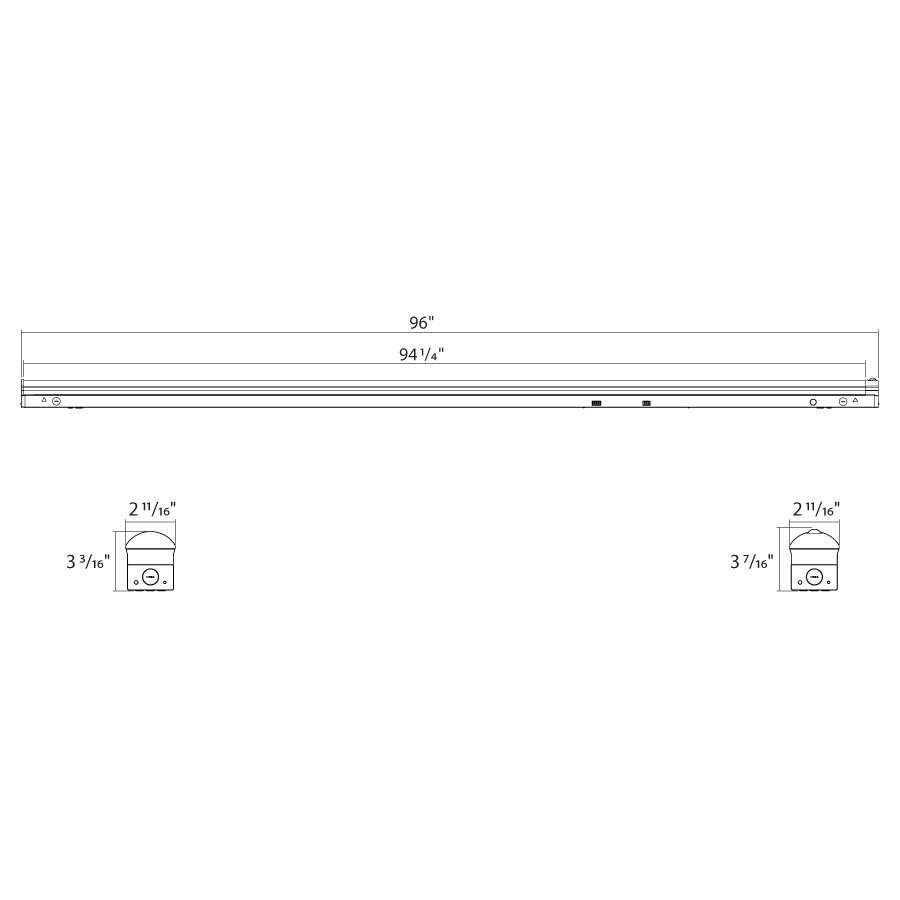

Dimensions

Weight: 8.5 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
60W/50W/40W (factory default 60W)
Color temperature selectable by 5000K, 4000K and 3500K (factory default 4000K)

Compliance

UL Listed

Suitable for damp locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-FP3EWO (Direct Linear Ambient Luminaires)
DLC Product Code: S-W019E6 (Stairwell and Passageway Luminaires)
DLC Product Code: S-XS42JY (Low-Bay Luminaires for Commercial and Industrial Buildings)

LED Characteristics

LEDs

Long-life, high-efficacy, discrete, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Color Consistency

4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Performance

Lifespan

50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Wattage Equivalency

60W: (4) F32T8
50W: (3) F32T8
40W: (3) F32T8

Electrical

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

7.52% at 120V, 7.96% at 277V

Power Factor

99.38% at 120V, 94.72% at 277V

Surge Protection

L-N 1KV, L/N-G 2KV

Battery Backup

Battery backup will operate the fixture for 90 minutes if power fails. Wired for 120-277V.

Battery Backup Light Loss Factor

60W: 0.171
50W: 0.2
40W: 0.247

Construction

Cold Weather Starting

The minimum starting temperature is 0°C (32°F)

Maximum Ambient Temperature

Suitable for use in up to 60°C (140°F)

Lens

Polycarbonate lens

Housing

Sheet metal

Mounting

Surface mounting standard. V-Hooks and Chain mounting available (ordered separately, SR VHOOK KIT).

Green Technology

Mercury and UV free. RoHS-compliant components.

Finish

Formulated for high durability and long-lasting color

Sensor Specifications

Remote Control Accessory

Adjust settings using remote control (catalog# MSR1). Only available with 0-10V dimming driver options. Remote control available here.

PIR Sensor Factory Settings

Brightness: 100%
Hold Time: 1 Minute
Daylight: Disabled
Senstivity: 100%
Stand-By Dimming Level: 20%
Stand-By Time: 1 Minute

Operating Voltage

12 ± 2V DC

Operating Current

30mA

Output

DIM 0-10V

Stand-By Power

<0.5W

Brightness

0%-100%/Quick setting: 70%/80%/90%/100%

Hold Time

10s/1min/10min/30min

Daylight Threshold

10Lux/30Lux/50Lux/100Lux/Disable

Lux On-Off

Adopted dual PD technology. H17-PIR is able to differenciate artificial light brightness from natural light after installed inside.

Stand-By Time

1min/30min/60min/+∞

Stand-By Dimming Level

10%/20%/30%/50%

Detection Angle

≤120° (wall mounted) 360° (ceiling mounted)

Control Line

Black White 12V+ ; Purple: DIM+ ; Pink GND/DIM-

Mounting Height

Max 6M (ceiling mounted)

Detection Range

Max 8m (ceiling mounted) Max 6m(wall mounted)

Operating Temperature

-30°C to 60°C (-22°F to 140°F)

Other

5 Yr Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Accessories

Suspended Mounting Kit: SR VHOOK KIT
Surface Mount Kit: SR JOIN KIT

Note

All values are typical (tolerance +/- 10%)

Buy American Act Compliance

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
