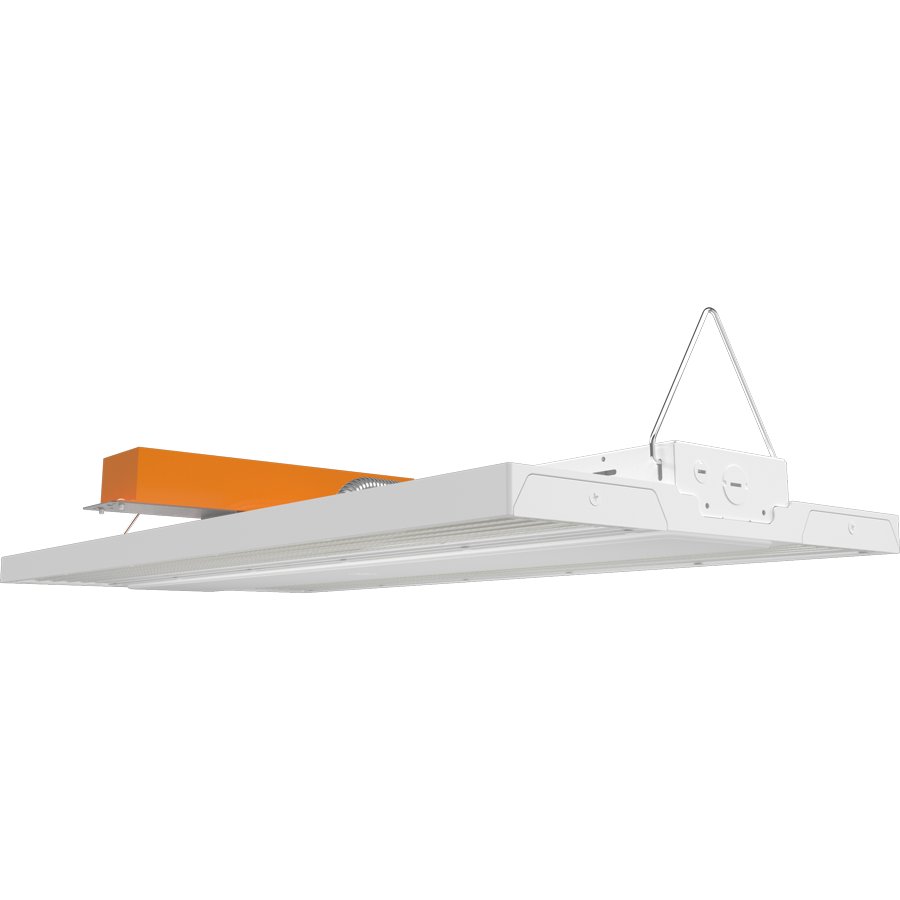

RBAY15L/E
RBAY15L/E
400W 3500/4000/5000K
- 100,000-Hour LED lifespan
- DLC Premium Listed
- 0-10V dimming, standard
- 5-Year, limited warranty
Performance
| Watts | 400/320/260W |
| Color Temp | 3500/4000/5000K |
| Lumens | 38,323-61,016 lm |
| Efficacy | 132.4-173.1 lm/W |
| Color Accuracy | 83-85 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 3.70A/3.00A/2.40A |
| 208V | 2.10A/1.70A/1.40A |
| 240V | 1.80A/1.50A/1.20A |
| 277V | 1.60A/1.30A/1.10A |
| Input Watts | 246.3-414W |
Dimensions
Weight: 13.5 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
400W/320W/260W (factory default 400W)
Color temperature selectable by 3500K, 4000K and 5000K (factory default 4000K)
400W/320W/260W (factory default 400W)
Color temperature selectable by 3500K, 4000K and 5000K (factory default 4000K)
Optical Field Adjustability
Adjustable from standard to aisle lighting optics with a simple rotation of the lens. Choose between 90x90° or 45x110° to get the distribution.
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
IP20
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-CPV1Q9
DLC Product Code: S-CPV1Q9
LED Characteristics
LEDs
Long-life, high-efficacy, discrete, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Electrical
Driver
Constant Current, Class 1, 120-277V, 50/60 Hz:
400W: 120V: 3.70A, 208V: 2.10A, 240V: 1.80A, 277V: 1.60A
320W: 120V: 3.00A, 208V: 1.70A, 240V: 1.50A, 277V: 1.30A
260W: 120V: 2.40A, 208V: 1.40A, 240V: 1.20A, 277V: 1.00A
400W: 120V: 3.70A, 208V: 2.10A, 240V: 1.80A, 277V: 1.60A
320W: 120V: 3.00A, 208V: 1.70A, 240V: 1.50A, 277V: 1.30A
260W: 120V: 2.40A, 208V: 1.40A, 240V: 1.20A, 277V: 1.00A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Aux Power Supply
Yes
Dim to Off
Yes
Surge Protection
L/N-PE: 6 kV, L-N: 6 kV
Battery Backup
Battery backup will operate the fixture for 90 minutes if power fails. Wired for 120-277V.
Battery Backup Light Loss Factor
400W: 6%
320W: 8%
260W: 9%
320W: 8%
260W: 9%
Construction
Cold Weather Starting
The minimum starting temperature is 0°C (32°F)
Maximum Ambient Temperature w/Battery Backup
Suitable for use in up to 113°F (45°C)
Lens
Polycarbonate lens
Reflector
Polycarbonate
IK Rating
IK08 Protected against 5 joules of impact. Equivalent to the impact of a 3.75 lbs. (1.7kg) mass dropped from 11.8" (300mm) above the impacted surface.
Housing
Die-cast aluminum
Gaskets
High-temperature silicone
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Comes standard with V-hooks for chain mounting. Accessories available for pendant and surface mounting (purchased separately).
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
