RBAY22L

Spec Sheet IES File LM79 Instructions Sell Sheet Folleto (Español) Family Spec Sheet Spec Sheet EZ Layout

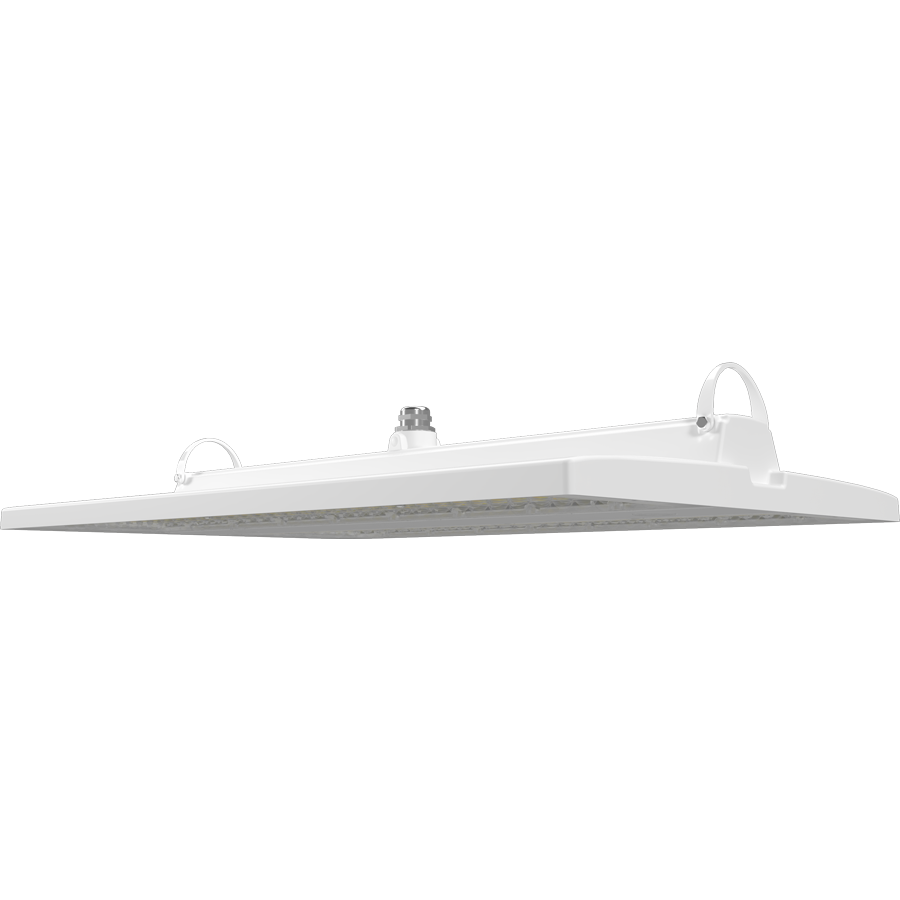

RBAY22L

320W 3500/4000/5000K

100,000-Hour LED lifespan

DLC Premium Listed

0-10V dimming, standard

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	320/260/200W
Color Temp	3500/4000/5000K
Lumens	31,240-48,221 lm
Efficacy	139.6-165.7 lm/W
Color Accuracy	84-85 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	2.70A/2.20A/1.70A
208V	1.60A/1.30A/1.00A
240V	1.40A/1.20A/0.95A
277V	1.20A/1.10A/0.80A
Input Watts	196.8-322.5W

EZ-Layout

Create Custom Lighting Layout

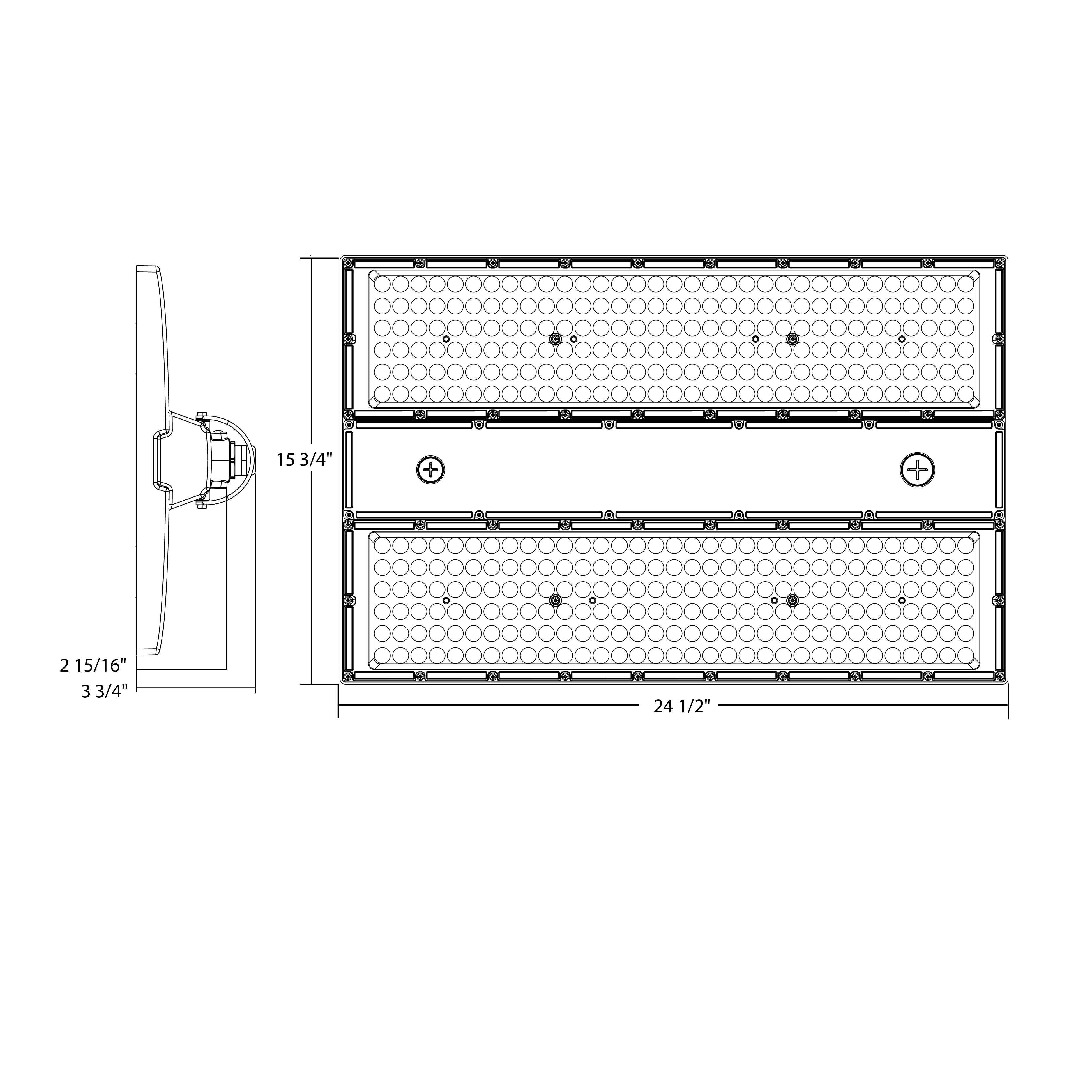

Dimensions

Weight: 13.6 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
320W/260W/200W (factory default 260W)
Color temperature selectable by 3500K, 4000K and 5000K (factory default 4000K)

Optical Field Adjustability

55°, 85°, and 105° (factory default 85°)

Compliance

UL Listed

Suitable for wet locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

LED Characteristics

LEDs

Long-life, high-efficacy, discrete, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Electrical

Driver

Constant Current, Class 1, 120-277V, 50/60 Hz:
320W: 120V: 2.70A, 208V: 1.60A, 240V: 1.40A, 277V: 1.20A
260W: 120V: 2.20A, 208V: 1.30A, 240V: 1.20A, 277V: 1.10A
200W: 120V: 1.70A, 208V: 1.00A, 240V: 0.95A, 277V: 0.80A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

5.33% at 120V, 10.32% at 277V

Power Factor

99.8% at 120V, 94.5% at 277V

Aux Power Supply

Yes

Dim to Off

Yes

Surge Protection

6 kV + 6 kV

Construction

Cold Weather Starting

The minimum starting temperature is -4°F (-20°C)

Maximum Ambient Temperature

Suitable for use in up to 122°F (50°C)

Lens

Polycarbonate lens

Housing

Die-cast aluminum

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Other

IP Rating

Ingress protection rating of IP66 & IP69K for high-pressure and high temperature cleaning

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Installation

Mounting

Comes standard with V-hooks for chain mounting. Accessories available for pendant and surface mounting (purchased separately).
