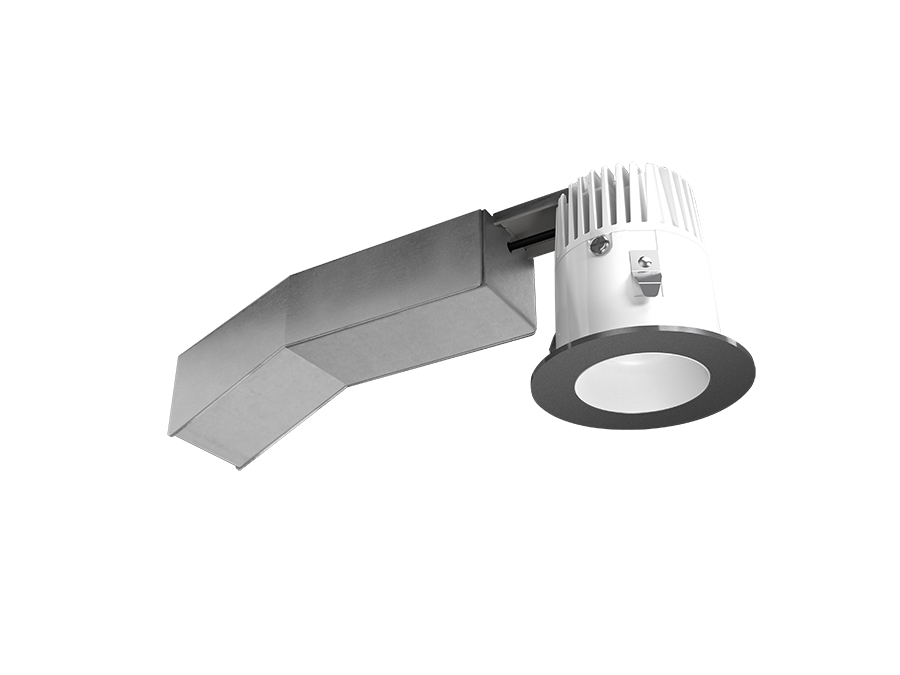

RDDLED2R-10D-20NHC-W-ST
RDDLED2R-10D-20NHC-W-ST
- 10W replaces 75W MR16
- Universal dimming (TRIAC, ELV and 0-10V) for optimal light control
- Deep regress design improves visual cutoff and reduces glare
Performance
| Watts | 10W |
| Color Temp | 4000K (Neutral) |
| Lumens | 807 lm |
| Efficacy | 66.7 lm/W |
| Color Accuracy | 93 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.11A |
| 208V | 0.07A |
| 240V | 0.06A |
| 277V | 0.05A |
| Input Watts | 12.1W |
Dimensions
Weight: 2.9 lbs
Technical Specifications
Compliance
UL Listed
Suitable for Wet Locations. Covered Ceiling Mount Only.
Energy Star Approved
ENERGY STAR® Version 2.0 Certified
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.11A, 208V: 0.07A, 240V: 0.06A, 277V: 0.05A
Dimming Driver
0 - 10V (at 120-277V), TRIAC and ELV (at 120V only).
See dimmer compatibility guide here.
See dimmer compatibility guide here.
THD
15.8% at 120V, 27.2% at 277V
Power Factor
98.5% at 120V, 90.2% at 277V
Surge Protection
4kV
Optical
Optics
20°
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
LED Characteristics
LEDs
Long-life, high-efficiency, surface-mount LEDs
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Construction
Cold Weather Starting
Minimum starting temperature is -35°C (-31°F)
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)
Housing
Specification-grade, die-cast aluminum construction
Reflector
Vacuum-metalized polycarbonate
Trim Ring
Silver powder coated die cast 1/2" trim ring
Trim Cone
White round trim cone
Lens
Optical grade polycarbonate
Green Technology
Mercury and UV free. RoHS-compliant components.
Other
Replacement
Replaces 75W MR16
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
