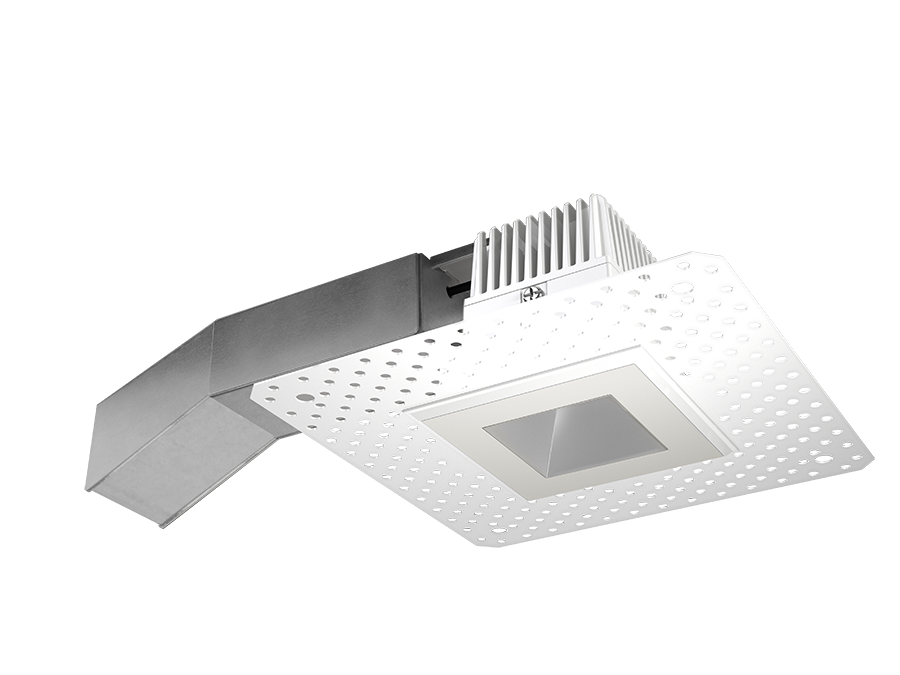

RDDLED2S-10D-30Y-M-STL

Spec Sheet IES File Downlight Accessory Compatibility List Instructions Spec Sheet EZ Layout

10W replaces 75W MR16

Universal dimming (TRIAC, ELV and 0-10V) for optimal light control

Deep regress design improves visual cutoff and reduces glare

View Technical Specs

View Price & Availability

Performance

Watts	10W
Color Temp	3000K (Warm)
Lumens	940 lm
Efficacy	78.3 lm/W
Color Accuracy	81 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.11A
208V	0.07A
240V	0.06A
277V	0.05A
Input Watts	12W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 2.9 lbs

Technical Specifications

Compliance

UL Listed

Suitable for Wet Locations. Covered Ceiling Mount Only.

Energy Star Approved

ENERGY STAR® Version 2.0 Certified

Electrical

Driver

Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.11A, 208V: 0.07A, 240V: 0.06A, 277V: 0.05A

Dimming Driver

0 - 10V (at 120-277V), TRIAC and ELV (at 120V only).
See dimmer compatibility guide here.

THD

16.2% at 120V, 26.2% at 277V

Power Factor

98.4% at 120V, 90.3% at 277V

Surge Protection

4kV

Optical

Optics

30°

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

LED Characteristics

LEDs

Long-life, high-efficiency, surface-mount LEDs

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Construction

Cold Weather Starting

Minimum starting temperature is -35°C (-31°F)

Maximum Ambient Temperature

Suitable for use in up to 40°C (104°F)

Housing

Specification-grade, die-cast aluminum construction

Reflector

Vacuum-metalized polycarbonate

Trim Ring

Silver powder coated die cast trimless ring

Trim Cone

Matte silver square trim cone

Lens

Optical grade polycarbonate

Green Technology

Mercury and UV free. RoHS-compliant components.

Other

Replacement

Replaces 75W MR16

Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
