RDDLED2S-10D-30YNHC-M-BTL
RDDLED2S-10D-30YNHC-M-BTL
- 10W replaces 75W MR16
- Universal dimming (TRIAC, ELV and 0-10V) for optimal light control
- Deep regress design improves visual cutoff and reduces glare
Performance
| Watts | 10W |
| Color Temp | 3500K (Warm Neutral) |
| Lumens | 794 lm |
| Efficacy | 67.3 lm/W |
| Color Accuracy | 94 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.11A |
| 208V | 0.07A |
| 240V | 0.06A |
| 277V | 0.05A |
| Input Watts | 11.8W |
Dimensions
Weight: 2.9 lbs
Technical Specifications
Compliance
UL Listed
Suitable for Wet Locations. Covered Ceiling Mount Only.
Energy Star Approved
ENERGY STAR® Version 2.0 Certified
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.11A, 208V: 0.07A, 240V: 0.06A, 277V: 0.05A
Dimming Driver
0 - 10V (at 120-277V), TRIAC and ELV (at 120V only).
See dimmer compatibility guide here.
See dimmer compatibility guide here.
THD
16.2% at 120V, 26.2% at 277V
Power Factor
98.4% at 120V, 90.3% at 277V
Surge Protection
4 kV
Optical
Optics
30°
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
LED Characteristics
LEDs
Long-life, high-efficiency, surface-mount LEDs
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Construction
Cold Weather Starting
Minimum starting temperature is -35°C (-31°F)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Housing
Specification-grade, die-cast aluminum construction
Reflector
Vacuum-metalized polycarbonate
Trim Ring
Black powder coated die cast trimless ring
Trim Cone
White round trim cone
Lens
Optical grade polycarbonate
Green Technology
Mercury and UV free. RoHS-compliant components.
Other
Replacement
Replaces 75W MR16
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Recently Viewed Products
RDDLED2S-10D-30YNHC-M-BTL
Recessed Downlights 794 Lumens Rddled 2 Inches Square 10W Dimmable 30 Degree 3500K 90Cri Matte Trim Cone Black Trim Ring Trimless
HALV10L940-NL-K/LC
Architectural 230 Lumens Halv Forward Light 14W 90Cri 4000K Natural Leaves Lens Black Finish Lightcloud Controller
ALED2T78SFNW/D10/LC
Arealights 9220 Lumens Aled78 Type Ii With Slipfitter 0-10V Dimming Lightcloud Controller Neutral Led White
HAZBLED80C-DG
Hazardous Lighting 6420 Lumens Hazbled 80W 5000K Clear Globe Die Cast Guard Wall Bracket Gray

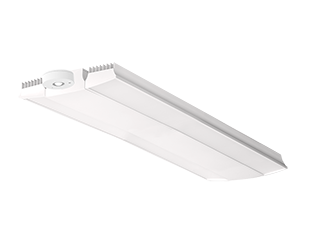

RAIL400NW/D10/LCS
