RDLED2S8-40Y-TB
RDLED2S8-40Y-TB
- 8W replaces 50W MR16 with energy savings of 82%
- TRIAC dimmer compatibility for additional light control
- Precision-engineered optics deliver smooth light without hot spots or glare
Performance
| Watts | 8W |
| Color Temp | 3000K (Warm) |
| Lumens | 567 lm |
| Efficacy | 64.4 lm/W |
| Color Accuracy | 83 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.08A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 8.8W |
Dimensions
Weight: 1.3 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations in a covered ceiling
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Construction
IC Rated
Suitable for direct contact with insulation
Trim Component
This component can be ordered with New Construction housing in order to make a complete fixture.
See here for New Construction Housing
See here for New Construction Housing
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Lens
Nanostructure lens eliminates "hot spots", and helps provide smooth, uniform light and higher efficiency
Junction Box
Integral junction box with wiring capacity for
Min 60°C supply conductors
End of Run
Min 60°C supply conductors
End of Run
Housing
Specification-grade, die-cast aluminum construction
Installation
Torsion springs easily install into ceiling collar (remodeler) or rough-in (new construction)
Trim Ring
Black powder coated die cast 1/2" trim ring
Green Technology
Mercury and UV free. RoHS-compliant components.
Finish
Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color
Performance
Lifespan
50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 50W MR16
LED Characteristics
LED
High-output, long-life LED with 2-step binning and integrated driver technology
Color Consistency
2-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Electrical
Driver
Constant Current, Class 2, 120VAC Only, 50/60Hz, 200mA, 0.07A
Dimming Driver
TRIAC and ELV (at 120V only).
See dimmer compatibility guide here.
See dimmer compatibility guide here.
Optical
Optics
40° beam spread with specular thermoplastic optics
Spacing Criteria
0 to 180° (along): 0.68
90 to 270° (across): 0.68
diagonal: 0.74
90 to 270° (across): 0.68
diagonal: 0.74
Other
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Recently Viewed Products
RDLED2S8-40Y-TB
Recessed Downlights 567 Lumens Rdled2S8 2 Inch Square 8W 40 Degree Beam Spread 80Cri 3000K 1/2 Inch Trim Black Trim Ring
DSK34-6R16935120WS
Surface & Flush Mounts 1104.7 Lumens Dsk34 6 Inch Round 16W 90Cri 3500K 120V White Smooth
FFLEDLYSF/480/7PR
Floodlights 15978/25291/36371 Lumens Ffled Large 3000K 480V Slipfitter Mount Bronze 7-Pin Receptacle

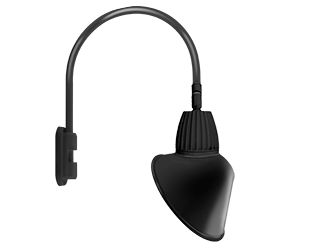

GN5LED26NACB
