RDLED4S12D-50Y-W-W
Performance
| Watts | 12W |
| Color Temp | 3000K (Warm) |
| Lumens | 1,133 lm |
| Efficacy | 82.1 lm/W |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.12A |
| 208V | 0.08A |
| 240V | 0.07A |
| 277V | 0.06A |
| Input Watts | 13.8W |

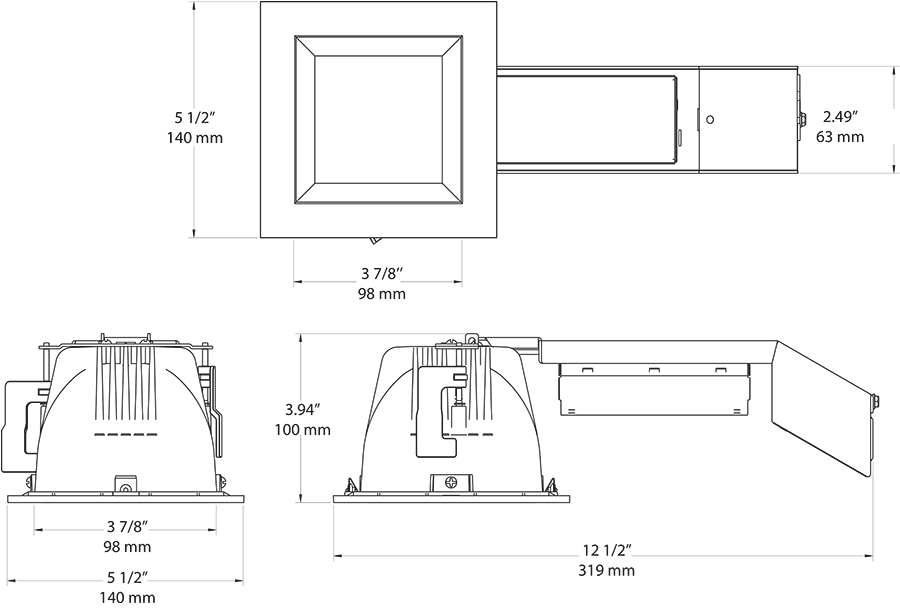

Dimensions
Weight: 2.5 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations covered ceiling
Energy Star Approved
ENERGY STAR® Version 2.0 Certified
LED Characteristics
LED
Long-life, high-output LED module. Binned for natural white light to match incandescent and 3-step MacAdam Ellipse consistency.
Absolute White™
A unique binning process designed to match incandescent at each color temperature. It's 3-step consistent, very stable over time and looks the way you expect light to look.
Color Consistency
3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 75W R30
Construction
Ambient Temperature
Suitable for use in up to 40°C (104°F)
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Trim Ring
White powder coated die cast trim ring
Trim Cone
White square trim cone
Lens
Nanostructure lens eliminates "hot spots", and helps provide smooth, uniform light and higher efficiency
Junction Box
Integral junction box with wiring capacity for
Min 90°C supply conductors
2 in 2 out
Min 90°C supply conductors
2 in 2 out
Housing
Professional-grade, die-cast aluminum construction
Easy Installation
Easy installation with ceiling clamps
Green Technology
Mercury and UV free. RoHS-compliant components.
Electrical
Driver
ELV, 0-10V and TRIAC Dimming, Constant Current, Class 2, 120V-277V, 50/60Hz, Power Factor 98%, THD ≤ 20%
Dimming Driver
0 - 10V (at 120-277V), TRIAC and ELV (at 120V only). See dimmer compatibility guide here.
Optical
Optics
50° beam spread with specular thermoplasic optics and Nanostructure lens technology for smooth light output and high efficiency
