DISCONTINUED
  • 5 color temperatures in 1 SKU (2700K, 3000K, 3500K, 4000K, 5000K)

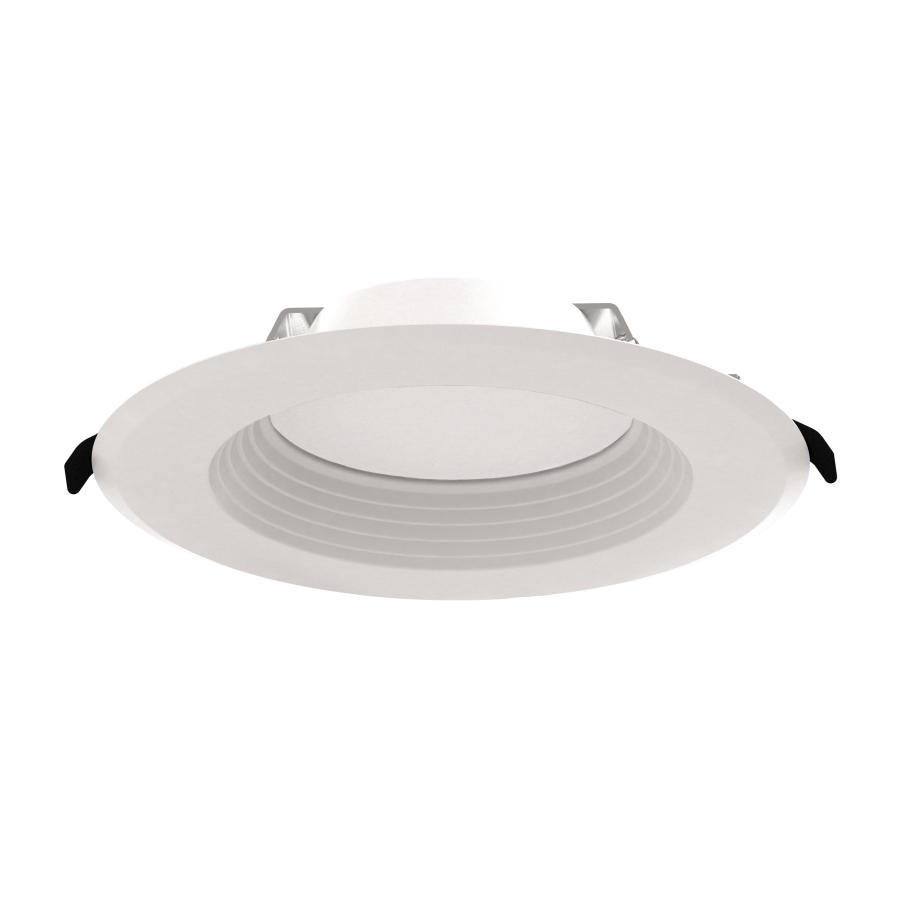

  • Back-lit deep regress remote driver downlight
  • No recessed housing or j-box required
  • Dimmable down to 5% on compatible dimmers, see Dimmer Compatibility List
  • IC and airtight rated
  • Suitable for indoor and outdoor use in dry, damp, and wet environments
View Technical Specs
Performance
Watts 12W
Color Temp 2700/3000/3500/4000/5000K
Lumens 1,000 lm
Efficacy 80
Color Accuracy 90 CRI
L70 Lifespan 50,000 Hours
Type Constant Current
120V 0.12A
208V
240V
277V
Input Watts 12.5W
Dimensions
Link to Dimension Drawing

Weight: 0.9 lbs

Technical Specifications
Performance
Description
Deep regress remote driver downlight looks like a traditional recessed retrofit but without the need of a traditional downlight housing. With the flexibility to choose from 5 field selectable color temperatures 2700K, 3000K, 3500K, 4000K, 5000K and suitable for dry, damp, and wet locations, making them perfect for both indoor and outdoor use.
Product Type
Recessed Downlights
Input Wattage
12.5W
Lumens
1,000lm
Efficacy
80lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IESlm-70 results
Compliance
UL Listed
Suitable for wet locations
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Electrical
THD
≤20%
Power Factor
≥0.9
