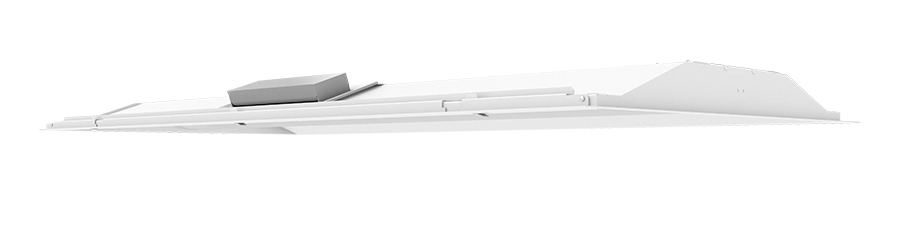

RTLED2X4-39NW/D10/E2

Spec Sheet IES File Instructions Spec Sheet EZ Layout

Troffer Retrofit can be installed in under 3 minutes by 1 person

Frosted polycarbonate lens provides a uniform distribution and reduces glare

0-10V dimming, standard

5-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	39W
Color Temp	4000K (Neutral)
Lumens	5,269 lm
Efficacy	135.1 lm/W
Color Accuracy	84 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.33A
208V	0.20A
240V	0.17A
277V	0.15A
Input Watts	39W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 13.4 lbs

Technical Specifications

Compliance

UL Listed

Suitable for damp locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Electrical

Driver

Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.33A, 0.20A, 0.17A, 0.15A

THD

7.9% at 120V, 9.5% at 277V

Power Factor

99.4% at 120V, 93.5% at 277V

Battery Backup

Battery backup will operate the fixture for 90 minutes if power fails. Wired for 120.

Surge Protection

4 kV

Construction

Housing

Steel sheet metal

Ambient Temperature

Suitable for use in up to 104°F (40°C)

Reflector

High-reflectance, powder-coated finish, optimized for uniform light distribution

Lens

Polycarbonate lens

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Installation

Mounting

Recessed ceiling

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Stability

LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Wattage Equivalency

Equivalent to (2) F32T8 or (2) F28T5

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
