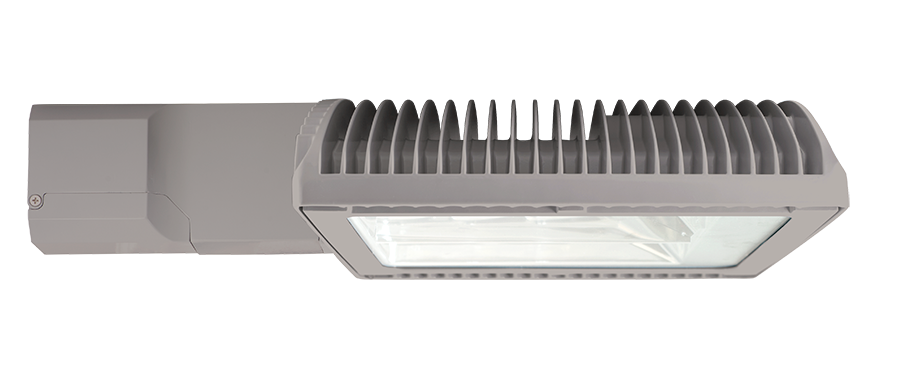

• Ideal for entrance roadways, collector roads, and single-sided roads
  • 27 year lifespan dramatically reduces maintenance and re-lamping costs
  • Precision optics deliver maximum downward street side lumens with uniformity and minimal glare
  • Compatible with standard roadway arms
  • Universal adaptors for 1", 1 1/4", 1 1/2" and 2" OD pipe included
  • Industry-leading 5G vibration rating per ANSI C136.31
  • Easy-access electrical compartment makes wiring fast and secure
  • 10-Year, No-Compromise Warranty
View Technical Specs
Performance
Watts 105W
Color Temp 5000K (Cool)
Lumens 12,980 lm
Efficacy 118.9 lm/W
Color Accuracy 70 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V
208V
240V
277V
Input Watts 109.2W
Dimensions
Link to Dimension Drawing

Weight: 33.5 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations as a downlight
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities.
DLC Product Code: P7SXPBBF
IP Rating
Ingress protection rating of IP66 for dust and water
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Construction
IES Classification
The Type II distribution is ideal for entrance roadways, collector roads and other long, single-sided and narrow lighting applications. This type of lighting is commonly found on smaller local streets.
Effective Projected Area
EPA = 0.75
Electrical
Drivers
Two Drivers Constant Current, Class2, 1400mA, 347-480V, 50/60Hz, 0.25A, Power Factor 99%
THD
15.2% at 480V
Power Factor
90.8% at 480V
