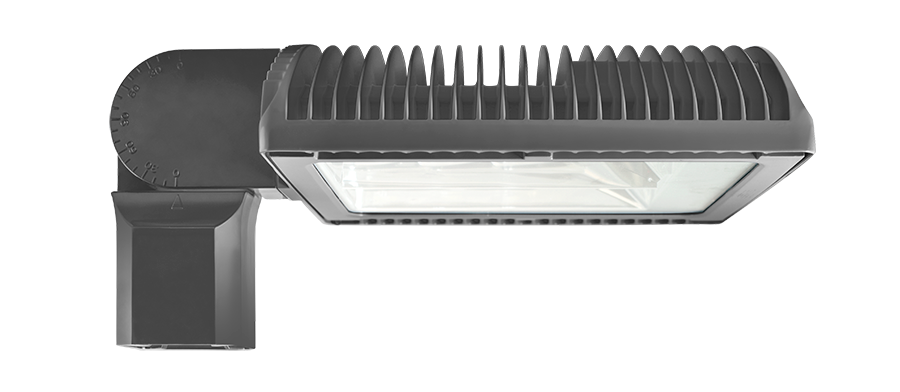

RWLED4T105SF/480

Ideal for entrance roadways, collector roads, and single-sided roads

27 year lifespan dramatically reduces maintenance and re-lamping costs

Precision optics deliver maximum downward street side lumens with uniformity and minimal glare

Industry-leading 5G vibration rating per ANSI C136.31

Easy-access electrical compartment makes wiring fast and secure

10-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	105W
Color Temp	5000K (Cool)
Lumens	13,439 lm
Efficacy	121 lm/W
Color Accuracy	70 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V
208V
240V
277V
Input Watts	111.1W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 32.0 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations as a downlight

DLC Listed

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities.
DLC Product Code: PWJ3XE88

IP Rating

Ingress protection rating of IP66 for dust and water

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Optical

IES Classification

The Type IV distribution (also known as a Forward Throw) is especially suited for illuminating the perimeter of parking areas and for intersections. It produces a semicircular distribution with essentially the same candlepower at lateral angles from 90° to 270°.

Construction

Effective Projected Area (EPA)

EPA = 2.2

Electrical

Drivers

Two Drivers Constant Current, Class2, 1400mA, 347-480V, 50/60Hz, 0.25A, Power Factor 99%

THD

5.9% at 480V

Power Factor

99.6% at 480V
