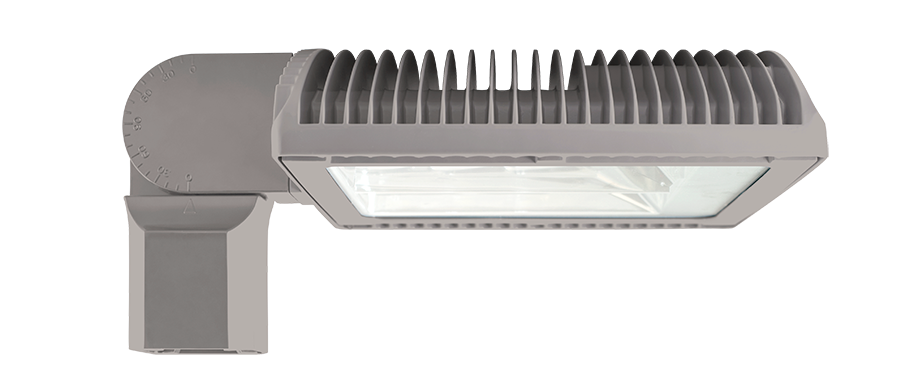

RWLED4T150SFRG/PCS2

Spec Sheet IES File Instructions Spec Sheet EZ Layout

RWLED4T150SFRG/PCS2

Ideal for entrance roadways, collector roads, and single-sided roads

27 year lifespan dramatically reduces maintenance and re-lamping costs

Precision optics deliver maximum downward street side lumens with uniformity and minimal glare

Industry-leading 5G vibration rating per ANSI C136.31

Easy-access electrical compartment makes wiring fast and secure

10-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	150W
Color Temp	5000K (Cool)
Lumens	18,464 lm
Efficacy	118.5 lm/W
Color Accuracy	71 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V
208V	0.80A
240V	0.69A
277V	0.60A
Input Watts	155.8W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 32.0 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations as a downlight

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC Product Code: P00001773

IP Rating

Ingress protection rating of IP66 for dust and water

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Construction

IES Classification

The Type IV distribution (also known as a Forward Throw) is especially suited for illuminating the perimeter of parking areas and for intersections. It produces a semicircular distribution with essentially the same candlepower at lateral angles from 90° to 270°.

Effective Projected Area

EPA = 2.2

Electrical

Driver

One Driver, Constant Current, Class 2, 2100mA 100-277V, 50-60Hz, Power Factor 99%

THD

4.9% at 120V, 14% at 277V

Power Factor

99.5% at 120V, 93.7% at 277V
