• IP65 rated
  • 100,000-Hour LED lifespan
  • 5-Year Limited Warranty
View Technical Specs
Performance
Watts 8W
Color Temp Tunable White 2200-4000K
Lumens 2-116 lm
Efficacy 0.8-14.4 lm/W
Color Accuracy 62-94 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 0.07A
208V 0.04A
240V 0.04A
277V 0.04A
Input Watts 2.39-8.06W
Dimensions

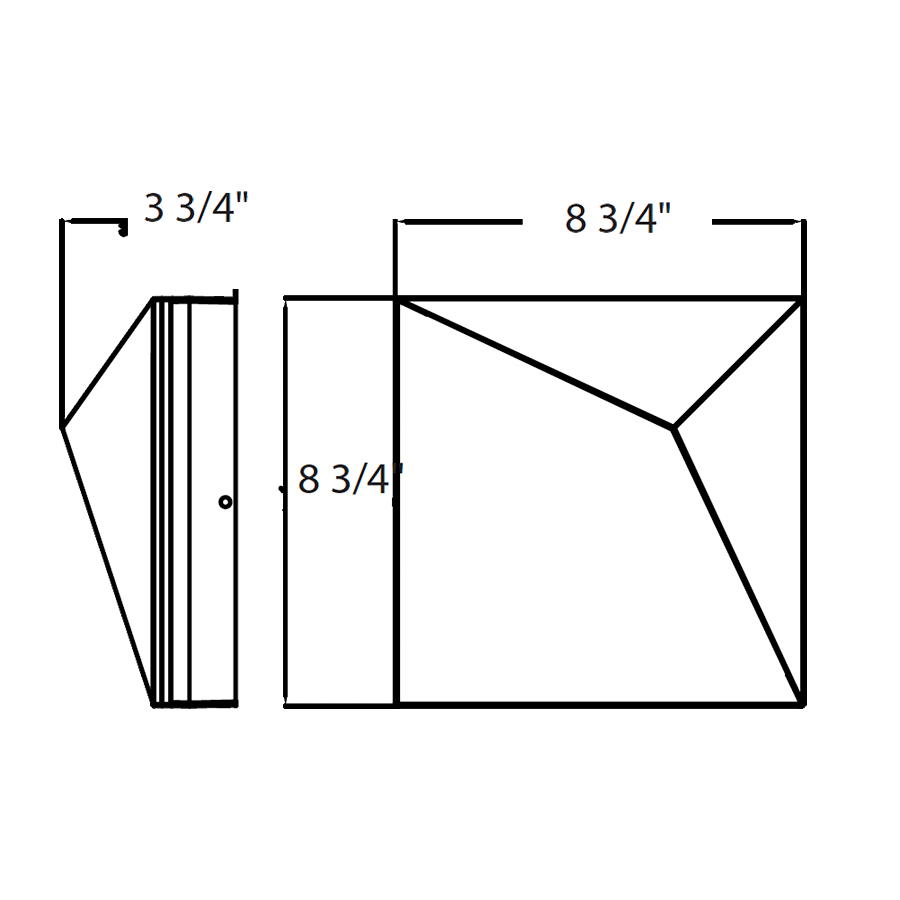

Link to Dimension Drawing

Weight: 4.4 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IP Rating
Ingress protection rating of IP65 for dust and water
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
LED Characteristics
LEDs
Long-life, high-efficacy, discrete, surface-mount LEDs
Color Tuning
Yes, 2200K-4000K and 16+ million colors to choose from using the Lightcloud Blue mobile app.
Default Setting at 3000K.
Color Consistency
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.07A, 208V: 0.04A, 240V: 0.04A, 277V: 0.04A
THD
11.7% at 120V, 13.0% at 277V
Power Factor
97.4% at 120V, 71.8% at 277V
Dim to Off
No
Aux Power Supply
No
Construction
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Maximum Ambient Temperature
Suitable for use in up to 45°C (113°F)
Housing
Die-cast aluminum
Lens
Polycarbonate lens
Gaskets
High-temperature silicone
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Octangular J-Box or bracket for the wall-mount (J-Box not provided)
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
