• UL Marine Listed
  • Impact-resistant linear washdown
  • Ideal for tunnels and stairwells
  • Mounting options: Chain, junction box, angled surface mount or vandal-resistant surface mount
  • IP66 Rating protects against dust & water ingress
  • 5-Year, No-Compromise Warranty
  • 100,000-Hour LED lifespan
View Technical Specs
Performance
Watts 25W
Color Temp 3000K (Warm)
Lumens 2,561 lm
Efficacy 100.8 lm/W
Color Accuracy 74 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 0.20A
208V 0.12A
240V 0.11A
277V 0.10A
Input Watts 25.4W
Dimensions

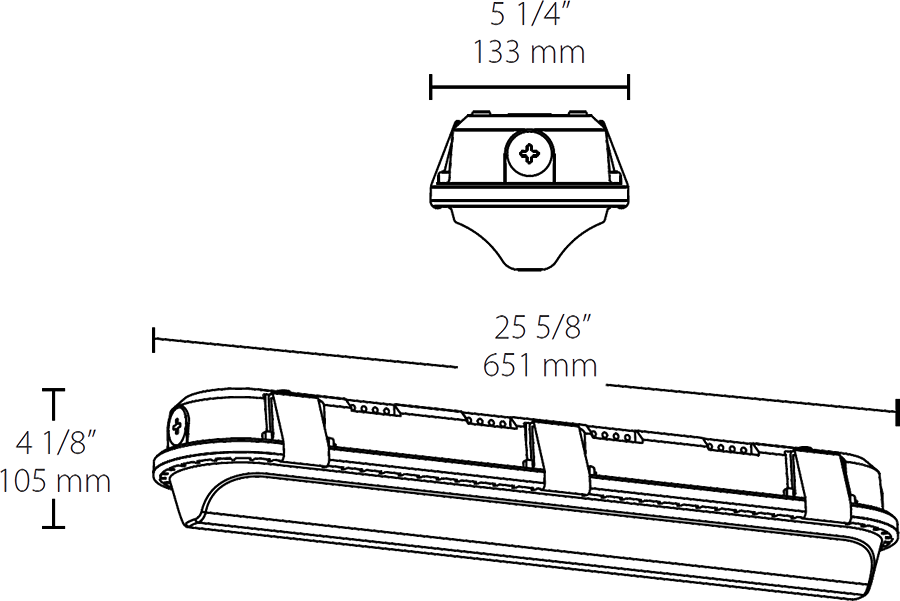

Link to Dimension Drawing

Weight: 7.5 lbs

Technical Specifications
Compliance
UL Marine Listed
Marine Listed Outside Type (Saltwater)
IP Rating
Ingress protection rating of IP66 for dust and water
NEMA Rating
NEMA 4X rating indicates an enclosure protects against windblown dust and rain, splashing and hose-directed water, and offers additional corrosion resistance.
Construction
Reflector/Tray
Aluminum
Housing
5VA impact-resistant polycarbonate. 1/2" openings for conduit and bushing/cord entry. Polycarbonate is affected by cleaning agents or other liquids containing partial solvents such as low molecular weight aldehydes and ethers, ketones, esters, aromatic hydrocarbons and perchlorinated hydrocarbons. Click here for a detailed list of damaging chemicals.
Lens
Diffuse polycarbonate lens for low glare and maximum protection
Installation
Mounting
Quick-mount, surface, stainless steel spring clips supplied. 4 additional mounting accessory kits available.
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Electrical
Driver
Class 2 Constant Current, 0.5A@100VAC, 100-277VAC, 50-60Hz, 450mA
THD
9.2% at 120V, 13.2% at 277
Power Factor
98.3% at 120V, 93.6% at 277V
