SHARK4-50W/D10/10C/LC
SHARK4-50W/D10/10C/LC
- Impact-resistant linear washdown
- Ideal for tunnels and stairwells
- Mounting options: Chain, junction box, angled surface mount or vandal-resistant surface mount
- IP66 Rating protects against dust & water ingress
- 5-Year, No-Compromise Warranty
- 100,000-Hour LED lifespan
Performance
| Watts | 50W |
| Color Temp | |
| Lumens | 5,161 lm |
| Efficacy | 107.5 lm/W |
| Color Accuracy | |
| L70 Lifespan |
| Type | Constant Current |
| 120V | 0.40A |
| 208V | 0.24A |
| 240V | 0.21A |
| 277V | 0.18A |
| Input Watts | 48W |

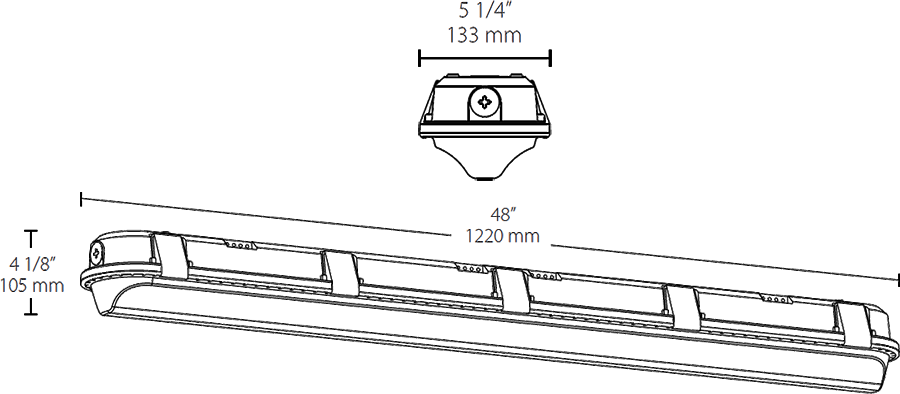

Dimensions
Weight: 12.2 lbs
Technical Specifications
Installed with Lightcloud
Lightcloud is a commercial wireless lighting control system fully developed and supported by RAB. It's powerful and flexible, yet easy to use and install.
Learn MoreLightcloud
Lightcloud Controller Installed
Fixture, Zone, and plug-load control from one powerful device. Capable of switching, 0-10V dimming, power monitoring. Can also be used to extend the range of the Lightcloud mesh network. Attach to fixture, junction box, or electrical panel. Learn more at www.lightcloud.com
Compliance
UL Listed
Suitable for wet locations
NSF
NSF Certified by Public Health and Safety
IP Rating
Ingress protection rating of IP66 for dust and water
NEMA Rating
NEMA 4X rating indicates an enclosure protects against windblown dust and rain, splashing and hose-directed water, and offers additional corrosion resistance.
Construction
Reflector/Tray
Aluminum
Housing
5VA impact-resistant polycarbonate. 1/2" openings for conduit and bushing/cord entry. Polycarbonate is affected by cleaning agents or other liquids containing partial solvents such as low molecular weight aldehydes and ethers, ketones, esters, aromatic hydrocarbons and perchlorinated hydrocarbons. Click here for a detailed list of damaging chemicals.
Installation
Mounting
Quick-mount, surface, stainless steel spring clips supplied. 4 additional mounting accessory kits available.
Electrical
Driver
Class 2 Constant Current, 4kV, 100-277VAC, 50-60Hz
THD
7.5% at 120V, 8.9% at 277V
Power Factor
99.1% at 120V, 95.2% at 277V
