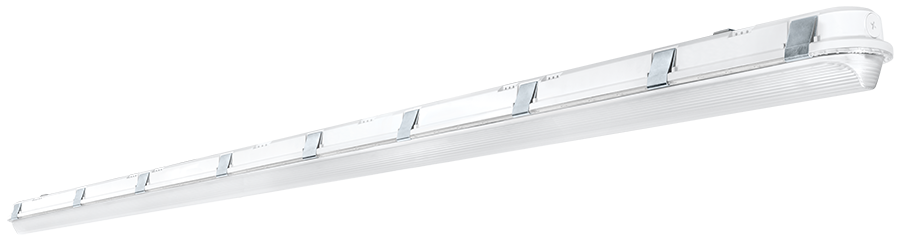

SHARK8-70YW/D10/BL

Spec Sheet IES File Instructions Spec Sheet EZ Layout

SHARK8-70YW/D10/BL

NSF certified for use in food-preparation facilities

American Bureau of Shipping (ABS) approved

Ideal for tunnels and stairwells

Mounting options:

Chain, junction box, angled surface mount, ceiling mount or vandal-resistant surface mount

IP66 AND NEMA 4X ratings protect against dust, water ingress & corrosion

5-Year, No-Compromise Warranty

100,000-Hour LED lifespan

View Technical Specs

View Price & Availability

Performance

Watts	70W
Color Temp	3000K (Warm)
Lumens	10,072 lm
Efficacy	135.4 lm/W
Color Accuracy	75 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.62A
208V	0.38A
240V	0.33A
277V	0.28A
Input Watts	74.4W

EZ-Layout

Create Custom Lighting Layout

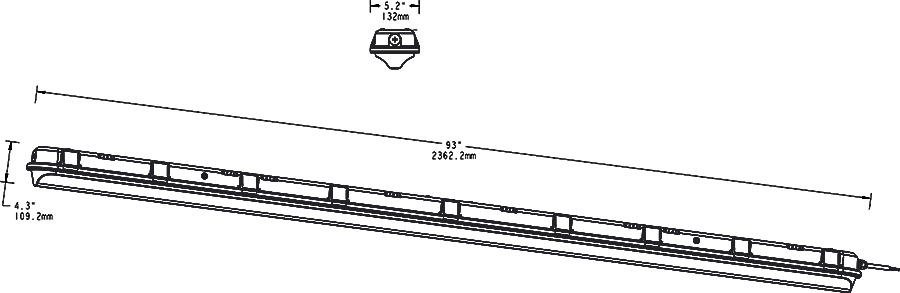

Dimensions

Weight: 25.7 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations

NSF

NSF Certified by Public Health and Safety

American Bureau of Shipping (ABS)

Approved for use on mobile offshore drilling units and shipping vessels

IP Rating

Ingress protection rating of IP66 for dust and water

NEMA Rating

4X, protected against corrosion

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Electrical

Driver

Class 2 Constant Current, 4kV, 100-277VAC, 50-60Hz, 120V: 0.62A, 208V: 0.38A, 240V: 0.33A, 277V: 0.28A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

7.5% at 120V, 8.9% at 277V

Power Factor

99.2% at 120V, 95.9% at 277V

Surge Protection

4kV

Construction

Housing

5VA impact-resistant polycarbonate. 1/2" openings for conduit and bushing/cord entry. Polycarbonate is affected by cleaning agents or other liquids containing partial solvents such as low molecular weight aldehydes and ethers, ketones, esters, aromatic hydrocarbons and perchlorinated hydrocarbons. Click here for a detailed list of damaging chemicals.

Lens

Diffuse polycarbonate lens for low glare and maximum protection

Gaskets

EVA silicone foam

Maximum Ambient Temperature

Suitable for use in up to 40°C (104°F)

Cold Weather Starting

The minimum starting temperature is -30°C (-22°F)

Installation

6ft 5-wire cord installed on fixture for easy installation on SHARK8. Tether Cables are provided for easy installation. Quick connector may be used for quick and easy wiring.

Green Technology

Mercury and UV free. RoHS-compliant components.

Finish

Formulated for high durability and long-lasting color

Installation

Mounting

Quick-mount, surface, stainless steel spring clips supplied. 4 additional mounting accessory kits available.

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Other

Bi-Level Operation

Allows 33%-66%-100% output modes
